Standard: operating range 1 - 16 bar, 0.1 - 6 bar on request
987-04

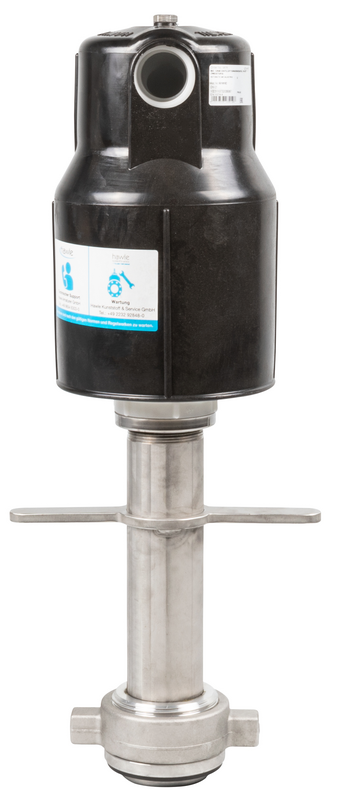

Air valve 2" for potable water with standpipe
| Material: |
Body and connecting hood: POM Standpipe: steel, galvanized 2" Claw coupling: aluminium |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
The air valve with standpipe permits the "mobile" ventilation of pipelines via underground hydrants.
Max. air release capacity: 190 m³/h
Operating ranges:
- 1-16 bar (standard)
- 0.1-6 bar (on request)
|
Order Nr.
|
Working range |
H |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
9877008000
|
1 - 16 | 600 mm | 5,00 kg |
