- Tele flushing valve (H = 450 - 900 mm) for potable water, with drainage device and factory preinstalled tee d 63
985-04
Flushing valve for sewage water and potable water
| Material: |
Cast components: GJS-400, Hawle epoxy powder coated Medium pipe: steel, Hawle epoxy powder coated Spindle / shut-off blade / shut-off device: stainless steel Gaskets: EPDM acc. to KTW-BWGL for water / NBR for sewage water |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Via the free outlet area Hawle flushing valves permit a flushing of pressure lines, culverts or transmission lines in the field of water.
The compact design of the flushing valve makes complex and high-maintenance manhole constructions unnecessary, Therefore, all the dangers possibly related with the entering of manholes can be avoided.

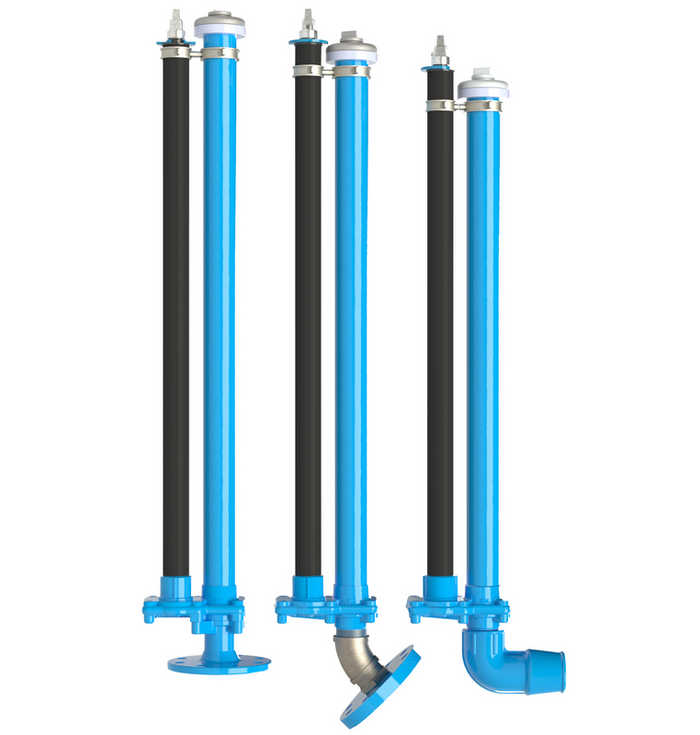

Lower outlet: flange / push-fit elbow 90°
Upper outlet: fixed coupling C (optionally with male thread 2") max. outlet area: 36mm
If the flushing valve is used for potable water applications, the surcharge for additional drainage (model no. 2400000009) has to be included on ordering (except for installation in groundwater where drainage is not possible).
|
Order Nr.
|
*) |
Pipe cover depth |
Connection |
H |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|
|
9858005010
|
1,00 | Flange DN 50,45° | 750 mm | 13,00 kg | ||||
|
9858005012
|
1,25 | Flange DN 50,45° | 1000 mm | 14,70 kg | ||||
|
9858005015
|
1,50 | Flange DN 50,45° | 1250 mm | 16,00 kg | ||||
|
9858005020
|
2,00 | Flange DN 50,45° | 1750 mm | 18,00 kg | ||||
|
9858008010
|
1,00 | Flange DN 80,45° | 750 mm | 14,50 kg | ||||
|
9858008012
|
1,25 | Flange DN 80,45° | 1000 mm | 16,70 kg | ||||
|
9858008015
|
1,50 | Flange DN 80,45° | 1250 mm | 17,95 kg | ||||
|
9858008020
|
2,00 | Flange DN 80,45° | 1750 mm | 20,00 kg | ||||
|
9858105010
|
1,00 | Flange DN 50 | 800 mm | 12,50 kg | ||||
|
9858105012
|
1,25 | Flange DN 50 | 1050 mm | 14,90 kg | ||||
|
9858105015
|
1,50 | Flange DN 50 | 1300 mm | 16,10 kg | ||||
|
9858105020
|
2,00 | Flange DN 50 | 1800 mm | 19,30 kg | ||||
|
9858108010
|
1,00 | Flange DN 80 | 800 mm | 14,60 kg | ||||
|
9858108012
|
1,25 | Flange DN 80 | 1050 mm | 16,50 kg | ||||
|
9858108015
|
1,50 | Flange DN 80 | 1300 mm | 17,90 kg | ||||
|
9858108020
|
2,00 | Flange DN 80 | 1800 mm | 20,90 kg | ||||
|
9858205008
|
0,80 | d63 / 90° | 675 mm | 12,00 kg | ||||
|
9858205010
|
1,00 | d63 / 90° | 875 mm | 13,50 kg | ||||
|
9858205012
|
1,25 | d63 / 90° | 1125 mm | 15,10 kg | ||||
|
9858205015
|
1,50 | d63 / 90° | 1375 mm | 16,60 kg | ||||
|
9858205020
|
2,00 | d63 / 90° | 1875 mm | 19,50 kg | ||||
|
9859005015
|
1) | 1,50 | Flange DN 50,45° | 1250 mm | 16,00 kg | |||
|
9859008012
|
1) | 1,25 | Flange DN 80,45° | 1000 mm | 16,70 kg | |||
|
9859105010
|
1) | 1,00 | Flange DN 50 | 800 mm | 12,50 kg | |||
|
9859105012
|
1) | 1,25 | Flange DN 50 | 1050 mm | 14,90 kg | |||
|
9859105015
|
1) | 1,50 | Flange DN 50 | 1300 mm | 16,10 kg | |||
|
9859108010
|
1) | 1,00 | Flange DN 80 | 800 mm | 14,60 kg | |||
|
9859108012
|
1) | 1,25 | Flange DN 80 | 1050 mm | 16,50 kg | |||
|
9859108015
|
1) | 1,50 | Flange DN 80 | 1300 mm | 17,90 kg | |||
|
9859108020
|
1) | 2,00 | Flange DN 80 | 1800 mm | 20,90 kg | |||
|
9859205008
|
1) | 0,80 | d63 / 90° | 675 mm | 12,00 kg | |||
|
9859205010
|
1) | 1,00 | d63 / 90° | 875 mm | 13,50 kg | |||
|
9859205012
|
1) | 1,25 | d63 / 90° | 1125 mm | 15,10 kg | |||
|
9859205015
|
1) | 1,50 | d63 / 90° | 1375 mm | 16,60 kg |
-
Special lengths on request.
|
Article Nr.
|
Product description |
|---|---|
| 204-05 | Base plate of concrete for surface box model no. 212 |
| 212-00 | Surface box with cover, rectangular |
| 985-05 | Drainage element for flushing valve for potable water |
| 985-06 | Standpipe for flushing valve 985 |
