Piggable version on request.
985-02

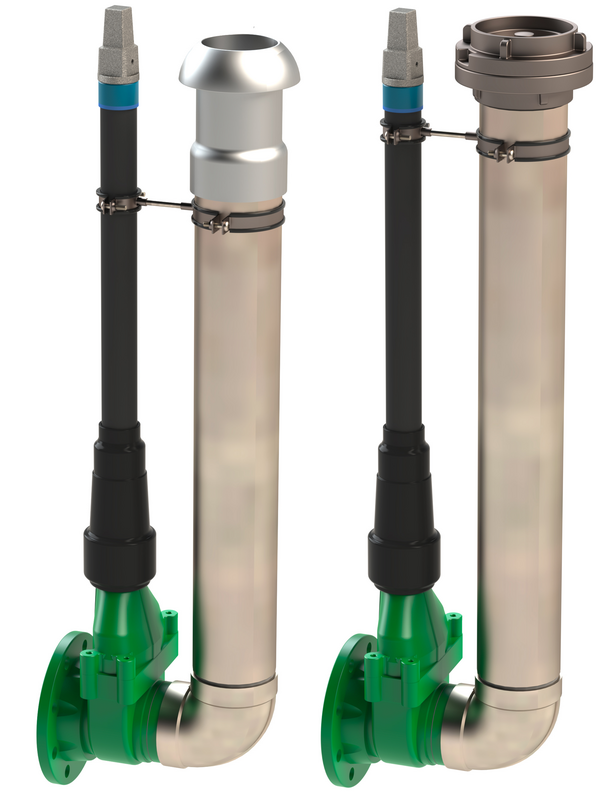

Flushing valve for sewage water DN 100
| Material: |
Cast components: GJS-400, Hawle epoxy powder coating Medium pipe/ bracket: stainless steel, Storz coupling: stainless steel Perrot coupling: galvanized steel Seals: NBR for sewage water |
|---|---|
| Max. operating Pressure: | Sewage water: 10 bar |
| Medium | Sewage |
Hawle flushing valves enable an easy flushing of pressure lines, culvert pipes, or stub lines in the water sector by means of the upper flushing connection (A- fixed coupling or Perrot coupling) and the free passage on the medium pipe.
Due to the compact design of the flushing valves (direct underground installation) elaborate, high-maintenance shaft structures may be omitted. The dangers when entering shafts are thus prevented.
|
Order Nr.
|
DN |
Pipe cover depth |
Outlet |
L |
A |
B |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
9856010010
|
100 | 1,10 | Storz A coupling | 1020 mm | 170 mm | 260 mm | 37,60 kg | |||
|
9856010012
|
100 | 1,25 | Storz A coupling | 1170 mm | 170 mm | 260 mm | 41,50 kg | |||
|
9856010015
|
100 | 1,50 | Storz A coupling | 1420 mm | 170 mm | 260 mm | 44,30 kg | |||
|
9856110010
|
100 | 1,10 | Perrot NW 108 | 1020 mm | 170 mm | 260 mm | 33,50 kg | |||
|
9856110012
|
100 | 1,25 | Perrot NW 108 | 1170 mm | 170 mm | 260 mm | 37,50 kg | |||
|
9856110015
|
100 | 1,50 | Perrot NW 108 | 1420 mm | 170 mm | 260 mm | 40,20 kg |
