854-02

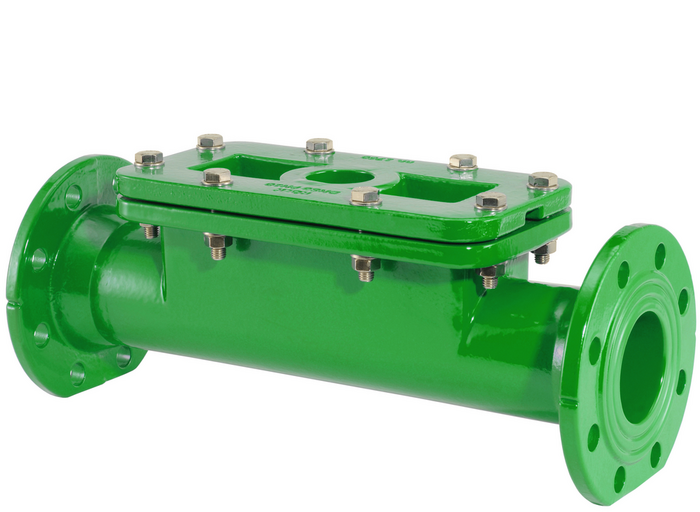

Cleaning and controlling box
| Material: |
Body and cover: GJS-400, epoxy powder coated Bolts/nuts: stainless steel |
|---|---|
| Max. operating Pressure: | Sewage water: 10 bar |
| Medium | Sewage |
The cleaning and controlling box serves the purpose of maintaining and cleaning of sewage water pressure lines.
|
Order Nr.
|
DN |
PN |
L |
L1 |
B |
H |
H1 |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8548250100
|
250 | 10 | 700 mm | 336 mm | 368 mm | 256 mm | 240 mm | 0,00 kg | |||
|
8549080100
|
80 | 10 | 500 mm | 250 mm | 166 mm | 105 mm | 29,00 kg | ||||
|
8549100100
|
100 | 10 | 500 mm | 250 mm | 185 mm | 110 mm | 27,80 kg | ||||
|
8549125100
|
125 | 10 | 550 mm | 300 mm | 220 mm | 125 mm | 35,50 kg | ||||
|
8549150100
|
150 | 10 | 550 mm | 300 mm | 240 mm | 145 mm | 46,60 kg | ||||
|
8549200100
|
200 | 10 | 650 mm | 350 mm | 310 mm | 170 mm | 69,10 kg | ||||
|
8549300100
|
300 | 10 | 750 mm | 400 mm | 420 mm | 230 mm | 129,90 kg |
|
