851-01
Fitting and extension piece
| Material: |
Housing: GJS-400, Hawle epoxy powder coating Seal: EPDM Threaded rod: stainless steel Nut and washer: stainless steel |
|---|---|
| Max. operating Pressure: | 16 bar |
| Medium | Water / Sewage |

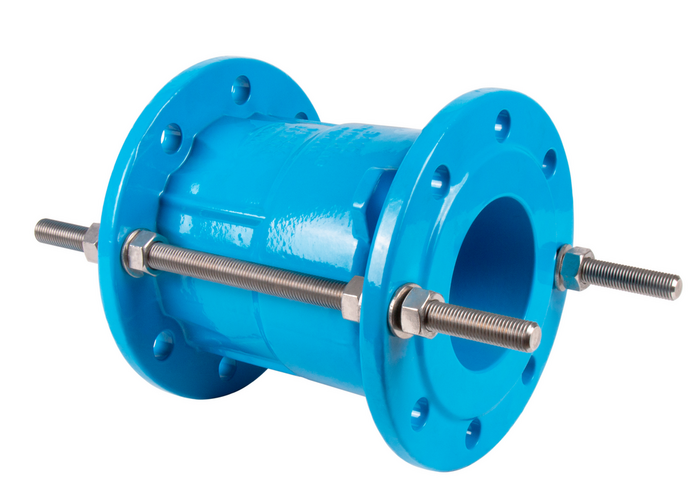

The Hawle fitting and extension piece, consisting of an EU-fitting (flanged socket) and an F-fitting (flanged spigot fitting), is a telescopic flange pipe fitting, which facilitates the installation and removal of valves and fittings in plant construction. In addition, the telescopic fitting and extension piece can be used for length compensation in new installations, enabling valves and fittings to be connected with precision.
|
Order Nr.
|
DN |
PN |
L |
L max. |
L min. |
D � |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
8519000800
|
80 | 10/16 | 350 mm | 240 mm | 210 mm | 200 mm | 12,60 kg | |||
|
8519001000
|
100 | 10/16 | 370 mm | 260 mm | 210 mm | 220 mm | 14,80 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Fitting and extension piece |
