- 1)
- For use with PVC pipe and PE-Pipe. Pease note: 2 units required.
849-00

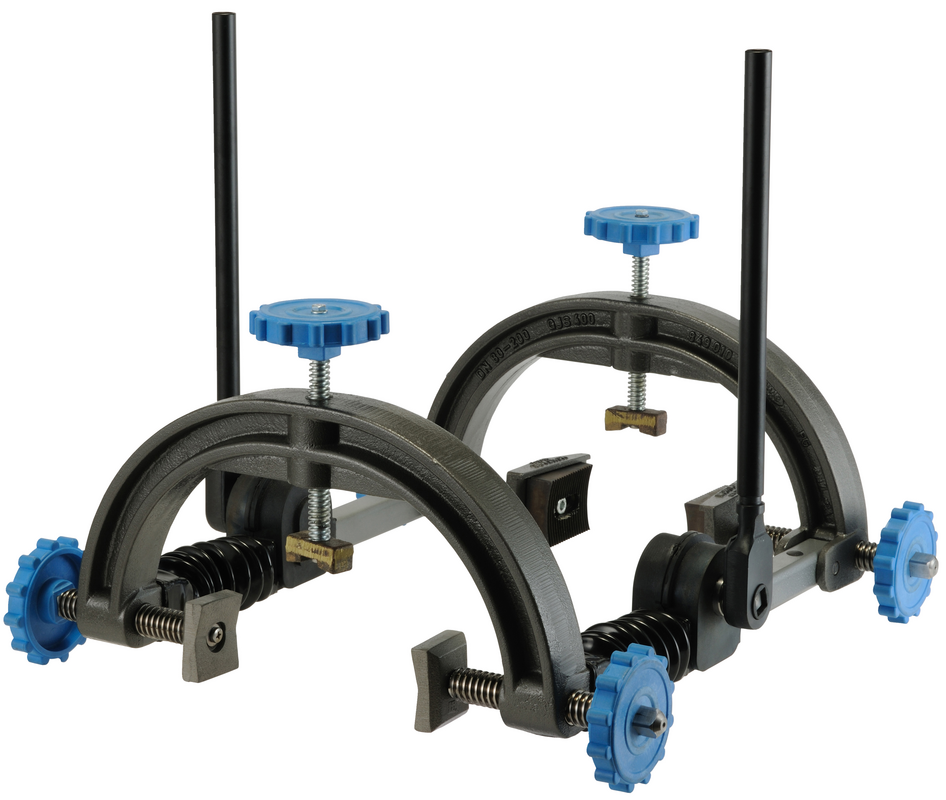

Installation and dismantling device for pipes in BAIO® sockets DN 80-200
| Material: |
Curved strap: GJS-400 Spindles: stainless steel Clamp plates: hardened steel Protective covers: EPDM Hand wheels: PA |
|---|---|
| Medium | Water / Gas / Sewage |
The installation and dismantling device is used for installation and/or dismantling of DCI-, steek-, PE and PVC-pipes, gate valves or pipe fittings DN 80 - DN 200 in BAIO® sockets.
Two clamping straps are connected via a toothed rack and can be moved together and/or apart by means of force deflection via toothed wheel and ratchet.
The low weight ensures easy handling.

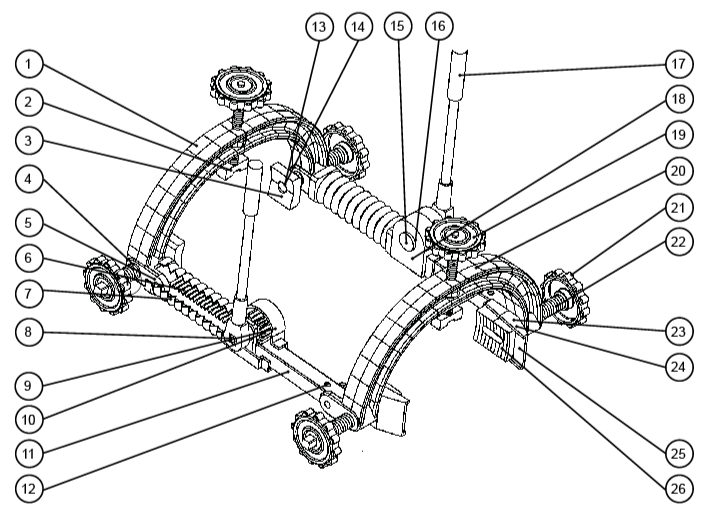

Picture:
1) Clamping bracket
2) V-block
3) Socket jaw
4) Expander bolt - socket
5) Straight pin
6) Driving rack
7) Bellows
8) Drive spindle
9) Gear wheel cover, closed
10) Driving toothed whee
11) Section tube / spindle bearing
12) Threaded pin
13) Oval-head screw
14) Washer
15) Woodruff key
16) Locking ring
17) Drive ratchet
18) Gear wheel cover, spindle side
19) Adjusting spindle with handwheel
20) Clamping bracket - pipe
21) Handwheel
22) Expander bolt - pipe
23) Set screw
24) O-ring
25) Pipe clamping guide shoe
26) Pipe clamping guide block
|
Order Nr.
|
*) |
Description |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
8490000008
|
1) | adapter with corundum | 0,14 kg | |||
|
8490802000
|
pipe mounting device | 22,00 kg |
