For placing the borehole gasket sleeve use a Hawle drilling device (model no. 830-00), fixing adaptor (model no. 8352000000) and handwheel (model no. 8490000024).
(Adaptor for drilling device ZAK 46 model no. 8310039046)
(Adaptor for drilling device MTHR 1 1/2" model no. 8310006350)
835-01

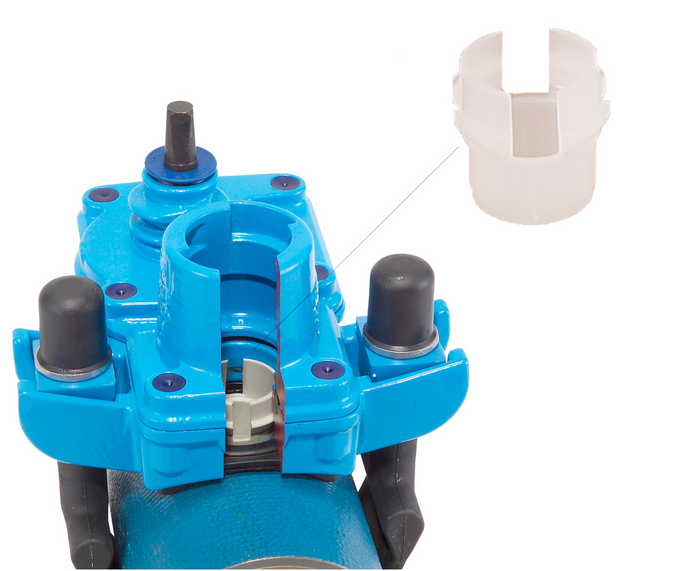

Borehole sealing sleeve for Hawlinger
| Material: | PP |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Borehole sealing sleeves for Universal Hawlingers prevent clogging of the borehole due to incrustation at DCI and steel pipes.
On installation, the "wings" at the upper part of the borehole sealing sleeve are folded inward. On reaching their end position they engage in the lower part of the Hawlinger.
Instructions for drilling and fixing the sleeve see operation manual.
After insertion of the sleeve, the pigging of the main line is possible only to a limited extent (slight internal projection).
Borehole sealing sleeves can be used only with Universal Hawlingers with FTHR 1 1/2" or ZAK 46.
|
Order Nr.
|
d 1 |
d 2 |
L |
Steel DIN 2460 |
Cast Iron EN 545 |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
8351000000
|
48 mm | 35 mm | 41,5 mm | DN 80 - 500 | DN 80 - 500 | 0,02 kg |
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Borehole sealing sleeve for Hawlinger |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 830-00 | Pipe drilling device "Hawlomat" |
