Double chamber flange for steel pipes - restraint

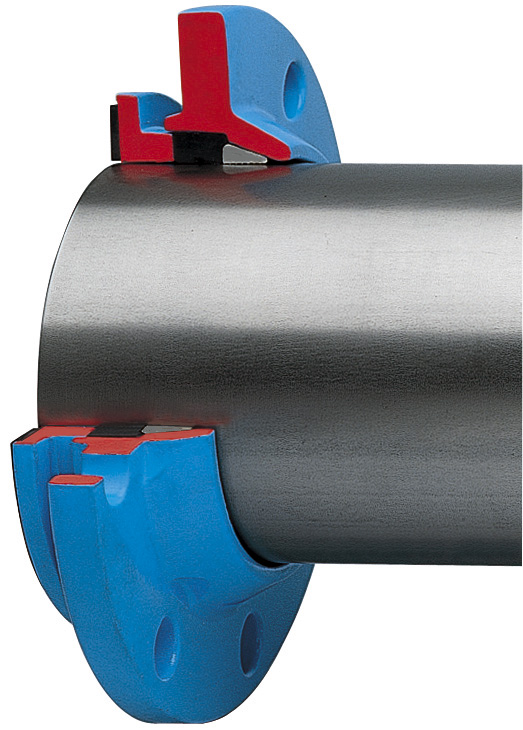

Double chamber flange with integral flat gasket and grip ring for the tight and restraint connection with steel pipes (Please note: cannot be used for pipes of stainless steel).

The flange combines two functions in one operation: sealing and establishing a restraint connection! When used in pairs, double chamber flanges can also be used as coupling.

Installation:
Clean the pipe surface and push the double chamber flange onto the pipe. Push the entire flange towards the counter flange. The thrust collar with the gasket should project over the pipe end approx. 10 mm. Establish a restraint connection by tightening the bolts crosswise several times.

For required bolt lengths see "Technical description".

The double chamber flange can also be used in case of diagonally cut pipe ends, or in case of a distance between two pipes of up to 15 mm.

read more reduce
Material: Flange: GJS-400
Thrust collar: GJL-250
Corrosion protection: Hawle epoxy powder coating
Grip ring: steel, hardened
Gaskets: elastomer
Max. operating Pressure: See table
Medium Water / Sewage

Double chamber flange with integral flat gasket and grip ring for the tight and restraint connection with steel pipes (Please note: cannot be used for pipes of stainless steel).

The flange combines two functions in one operation: sealing and establishing a restraint connection! When used in pairs, double chamber flanges can also be used as coupling.

Installation:
Clean the pipe surface and push the double chamber flange onto the pipe. Push the entire flange towards the counter flange. The thrust collar with the gasket should project over the pipe end approx. 10 mm. Establish a restraint connection by tightening the bolts crosswise several times.

For required bolt lengths see "Technical description".

The double chamber flange can also be used in case of diagonally cut pipe ends, or in case of a distance between two pipes of up to 15 mm.

Contacts
Wish List
Order Nr.

DN
PN
d
L

D �
 Medium Weight Specification Basket
7601050060
 50 10|16 60 mm 60 mm 165 mm 2,00 kg
7601065076
 65 10|16 76 mm 60 mm 185 mm 2,90 kg
7601080089
 80 10|16 89 mm 65 mm 200 mm 3,30 kg
7601100108
 100 10|16 108 mm 70 mm 220 mm 3,50 kg
7601100114
 100 10|16 114 mm 70 mm 220 mm 3,50 kg
7601125133
 125 10|16 133 mm 70 mm 250 mm 5,30 kg
7601150159
 150 10|16 159 mm 75 mm 285 mm 7,35 kg
7601150168
 150 10|16 168 mm 75 mm 285 mm 7,35 kg
7601200219
 200 10 219 mm 80 mm 340 mm 9,50 kg
7601201219
 200 16 219 mm 80 mm 340 mm 9,50 kg
Wish List

Double chamber flange for steel pipe DN 250 with od 273 mm, see model 760-01
