705-00 / 706-00
Pipe Entry with Conduit , Stainless Steel

The pipe entry fitting with conduit serves to establish a restraint connection between medium-bearing PE pipes and the integrated push-fit fittings through the stainless-steel conduit.

The pipe entry fitting is installed by means of two annular space seals. Priorto installation, a suitable core hole must be drilled into the concrete wall. The annular space seals must be provided by the customer and are not included in the scope of supply.

Advantages:
- With integrated ZAK fitting on the building inside

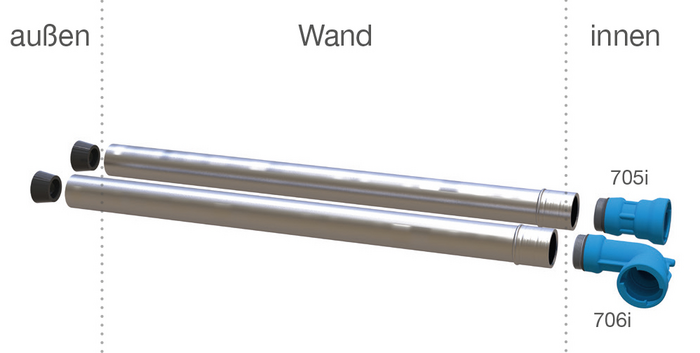

- Two design variants: straight or 90° elbow

read more reduce
Material: Conduit: Stainless Steel
Fitting: GJS-400, Hawle epoxy powder coated
Sealings: EPDM
Interlocked grip ring: POM
Sleeve: NBR
Max. operating Pressure: 16 bar
Medium Water

The pipe entry fitting with conduit serves to establish a restraint connection between medium-bearing PE pipes and the integrated push-fit fittings through the stainless-steel conduit.

The pipe entry fitting is installed by means of two annular space seals. Priorto installation, a suitable core hole must be drilled into the concrete wall. The annular space seals must be provided by the customer and are not included in the scope of supply.

Advantages:
- With integrated ZAK fitting on the building inside
- Two design variants: straight or 90° elbow

Contacts
Wish List

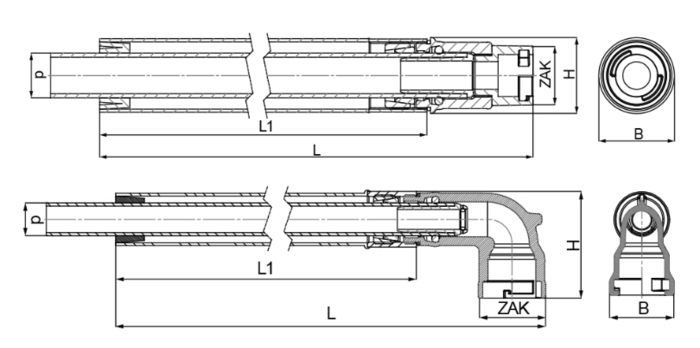

Order Nr.

d
Type / Outlet
L

L1
B
H
Picture Nr.
Description
 Medium Weight Specification Basket
7051320750
 32 mm ZAK 46 838 mm 750 mm 66 mm 66 mm 705i pipe entry fitting, straight 3,26 kg
7051400750
 40 mm ZAK 46 843 mm 750 mm 70 mm 70 mm 705i pipe entry fitting, straight 3,82 kg
7051500750
 50 mm ZAK 46 869 mm 750 mm 85 mm 85 mm 705i pipe entry fitting, straight 7,59 kg
7051630750
 63 mm ZAK 46 854 mm 750 mm 107 mm 107 mm 705i pipe entry fitting, straight 9,30 kg
7061320750
 32 mm ZAK 46 873 mm 750 mm 66 mm 106 mm 706i pipe entry fitting, elbow 90° 3,52 kg
7061400750
 40 mm ZAK 46 878 mm 750 mm 70 mm 113 mm 706i pipe entry fitting, elbow 90° 4,08 kg
7061500750
 50 mm ZAK 46 889 mm 750 mm 85 mm 133 mm 706i pipe entry fitting, elbow 90° 5,98 kg
7061630750
 63 mm ZAK 46 899 mm 750 mm 107 mm 159 mm 706i pipe entry fitting, elbow 90° 10,03 kg
Wish List

Suitable transition fitting Ord.-Nr. 618-04 for connection of water meters.

When connecting PE-pipes a support liner must be used.

Other lengths on request.

Product numbers for use with PVC-pipes on request.

With integrated ZAK fitting on the building inside. Two design variants: straight or 90° elbow
