- 1)
- Matching double nipple POM for electrical isolation order no.: 664-00
- 2)
- Delivered with enclosed support liner (POM).
687-00

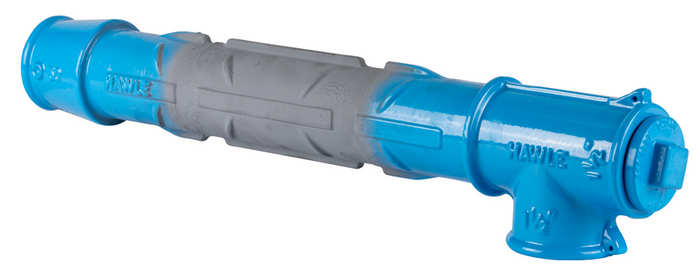

Medium-bearing pipe entry fitting, angled version 90°
| Material: |
model no. 687 d 40/1 ¼“ and d 50/1 ½“: GJL-250, Hawle epoxy powder coated model no. 687 d 63/2“ und model no. 688: GJS-400, Hawle epoxy powder coated Gasket: elastomer Interlocked grip ring: POM |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Medium-bearing pipe entry fittings are integrated directly into the wall.
The fitting is mainly installed in concrete walls. Before backfilling the fresh concrete the pipe entry fitting is inserted in the formwork of the outer building wall. Subsequently, the formwork is backfilled with fresh concrete. On setting and hardening of the fresh concrete a restraint connection is established between the wall and the pipe entry fitting because of the welded on "anti-twist locking wings".
The transition from the service line (medium pipe) and the pipe entry fitting is established outside the outer building wall.
Cellar inside: female thread straight and 90° with gasket surface and double o-ring plug.
Cellar outside: restraint push-fit fitting for the restraint connection with PE pipes (PVC on request)
|
Order Nr.
|
*) |
d |
Female thread (IG) |
L |
Outside diameter max. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
6870400000
|
1) 2) | 40 mm | 1 1/4" | 470 mm | 82 mm | 5,50 kg | |||
|
6870500000
|
1) 2) | 50 mm | 1 1/2" | 560 mm | 82 mm | 7,70 kg | |||
|
6870630000
|
1) 2) | 63 mm | 2" | 560 mm | 94 mm | 9,50 kg | |||
|
6880400850
|
1) 2) | 40 mm | 1 1/4" | 850 mm | 82 mm | 8,07 kg | |||
|
6880500850
|
1) 2) | 50 mm | 1 1/2" | 850 mm | 82 mm | 11,80 kg | |||
|
6880630850
|
1) 2) | 63 mm | 2" | 850 mm | 94 mm | 13,80 kg |
-
When connecting PE pipes a support liner must be used.
-
Product numbers for use with PVC pipes on request.
|
