- 1)
- Delivered with two enclosed support liner (POM).
- 2)
- Material cast iron
650-00

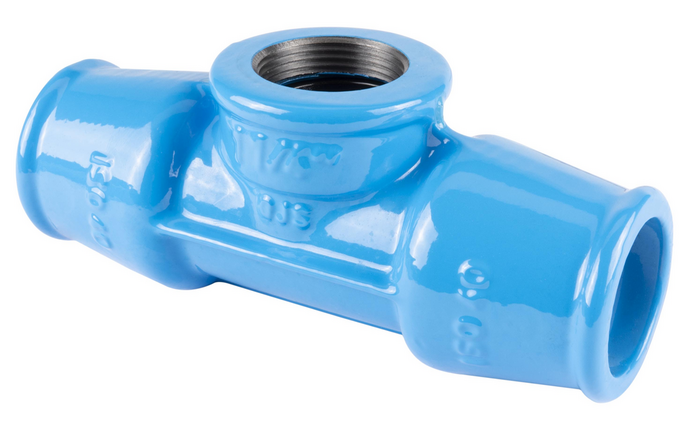

T-fitting with female thread outlet and two push-fit sockets
| Material: |
GJS-400, Hawle epoxy powder coated Support liner: POM |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
T-fitting, vertical outlet with female thread and with push-fit sockets for the restraint connection with PE pipes grades PE 80, PE 100 and PE-X (version for PVC pipes on request).
Very easy installation and dismantling.
Please note: if the fitting is used several times, the grip ring and the O-ring, if any, must be exchanged.
For underground pipeline construction and in distribution systems for both drinking water supply and wastewater disposal (no application in installation).
Cast fittings with internal or external threads should not be combined with components made of more precious materials (especially brass) in order to avoid contact corrosion.
|
Order Nr.
|
*) |
D |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|
|
6500202000
|
1) | 20 mm | IG 1/2" | 0,35 kg | |||
|
6500252500
|
1) | 25 mm | IG 3/4" | 0,56 kg | |||
|
6500323200
|
1) | 32 mm | IG 1" | 0,82 kg | |||
|
6500404000
|
1) | 40 mm | IG 1 1/4" | 1,46 kg | |||
|
6500505000
|
1) | 50 mm | IG 1 1/2" | 2,00 kg | |||
|
6500506300
|
1) 2) | 50 mm | IG 2" | 2,18 kg | |||
|
6500636300
|
1) | 63 mm | IG 2" | 3,70 kg | |||
|
6500753200
|
75 mm | IG 1" | 5,30 kg | ||||
|
6500756300
|
75 mm | IG 2" | 4,60 kg |
-
Product numbers for use with PVC pipes on request.
-
When PE pipes are connected a support liner shall be used.
|
