646-02

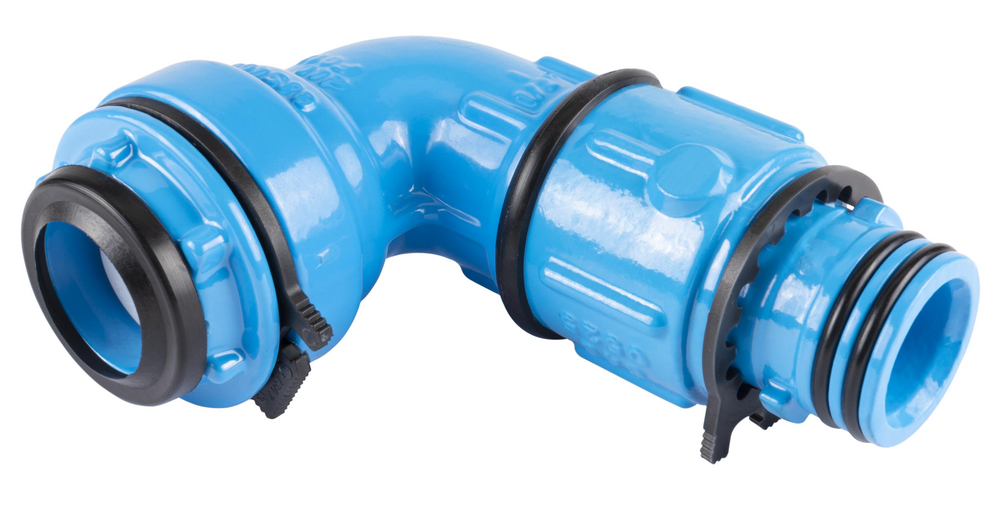

Rotating push-fit elbow 90° with detachable taper ring and ZAK® spigot end
| Material: |
Body: GJS-400, Hawle epoxy powder coated Interlocked grip ring: POM O-ring: EPDM |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Rotating push-fit elbow 90°, with one ZAK® spigot end for the restraint connection with valves and pipe fittings with ZAK® socket, and with one push-fit socket and detachable taper ring for the restraint connection with PE pipes grades PE 80, PE 100 and PE-X.
Very easy installation and dismantling.
Please note: if the fitting is used several times, the grip ring and the O-ring, if any, must be exchanged.
When connecting PE pipes a support liner (model no. 590) must be used.
For underground pipeline construction and in distribution systems for both drinking water supply and wastewater disposal (no application in installation).
|
Order Nr.
|
*) |
L |
B |
D |
H |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
6466032460
|
1) | 140 mm | 68 mm | 32 mm | 170 mm | ZAK 46 | 2,10 kg | |||
|
6466040340
|
1) | 143 mm | 79 mm | 40 mm | 184 mm | ZAK 34 | 2,35 kg | |||
|
6466040460
|
1) 2) | 144,5 mm | 79 mm | 40 mm | 193 mm | ZAK 46 | 2,35 kg | |||
|
6466050340
|
1) | 160 mm | 88 mm | 50 mm | 191 mm | ZAK 34 | 2,60 kg | |||
|
6466050460
|
1) | 160 mm | 88 mm | 50 mm | 200 mm | ZAK 46 | 2,70 kg |
-
Product numbers for use with PVC pipes on request.
-
When PE pipes are connected a support liner shall be used.
|
Article Nr.
|
Product description |
|---|---|
| 590-01 | Support liner of brass for PE pipes |
| 590-02 | Support liner of plastic for PE pipes |
| 598-00 | Chamfering tool "Concord" for PE pipes d 32 - 63 |
| 609-00 | Locking key fitting |
