- 1)
- Delivered with enclosed support liner (POM).
640-01

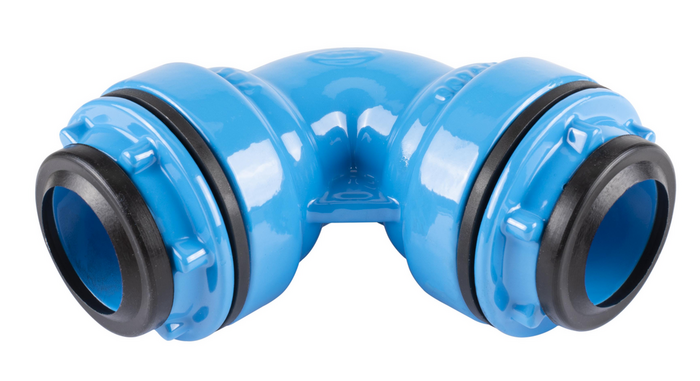

Elbow 90° with two push-fit sockets and detachable taper ring
| Material: |
Body: GJS-400, Hawle epoxy powder coated Grip ring: Delrin O-ring: EPDM acc. to KTW-BWGL for water support liner: POM |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Elbow 90°, with two push-fit sockets and detachable taper ring for the restraint connection with PE pipes grades PE 80, PE 100 and PE-X (version for PVC pipes on request).
Very easy installation / facilitated dismantling without extractors.
Please note: if the fitting is used several times, the grip ring and the O-ring, if any, must be exchanged.
For underground pipeline construction and in distribution systems for both drinking water supply and wastewater disposal (no application in installation).
|
Order Nr.
|
*) |
D |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
6400402000
|
1) | 40 mm | 1,40 kg | |||
|
6400502000
|
1) | 50 mm | 1,80 kg |
-
Product numbers for use with PVC pipes on request.
-
When connecting PE pipes a support liner must be used.
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Push-fit Fittings “N“ with Detachable Taper Ring |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 590-01 | Support liner of brass for PE pipes |
| 590-02 | Support liner of plastic for PE pipes |
| 598-00 | Chamfering tool "Concord" for PE pipes d 32 - 63 |
| 609-00 | Locking key fitting |
