Product numbers for use with PVC pipes on request.
622-01

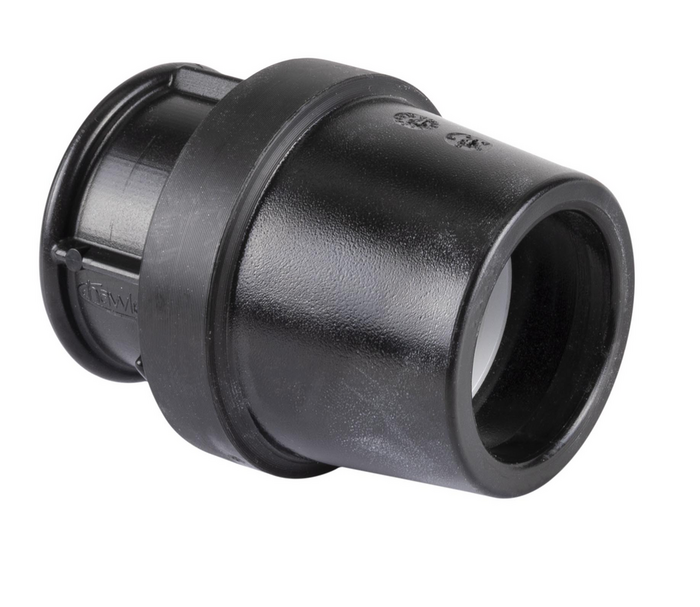

End fitting of POM
| Material: | Polyoxymethylene (POM) |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
End fitting for pressure testing and as protection against soiling of previously installed pipelines.
With push-fit socket for the restraint connection with PE pipes grades PE 80, PE 100 and PE-X (version for PVC pipes on request).
Very easy installation and dismantling.
Please note: if the fitting is used several times, the grip ring and the O-ring, if any, must be exchanged.
For underground pipeline construction and in distribution systems for both drinking water supply and wastewater disposal (no application in installation).
|
Order Nr.
|
*) |
D |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|
|
6226250000
|
1) | 25 mm | 0,06 kg | |||
|
6226320000
|
1) | 32 mm | 0,09 kg | |||
|
6226400000
|
1) | 40 mm | 0,18 kg | |||
|
6226500000
|
1) | 50 mm | 0,26 kg | |||
|
6226630000
|
1) | 63 mm | 0,36 kg |
|
Operating instructions
|
|---|
| Operating and Maintenance Instructions - one-piece push-fit fittings |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
|
Article Nr.
|
Product description |
|---|---|
| 590-01 | Support liner of brass for PE pipes |
| 590-02 | Support liner of plastic for PE pipes |
| 598-00 | Chamfering tool "Concord" for PE pipes d 32 - 63 |
| 601-00 | Extractors |
