- 1)
- Suitable transition fitting for combination with ZAK® pipe entry fitting (model no. 698.004.6046) for the connection of water meters.
- 2)
- Also available as packaging unit.
618-04

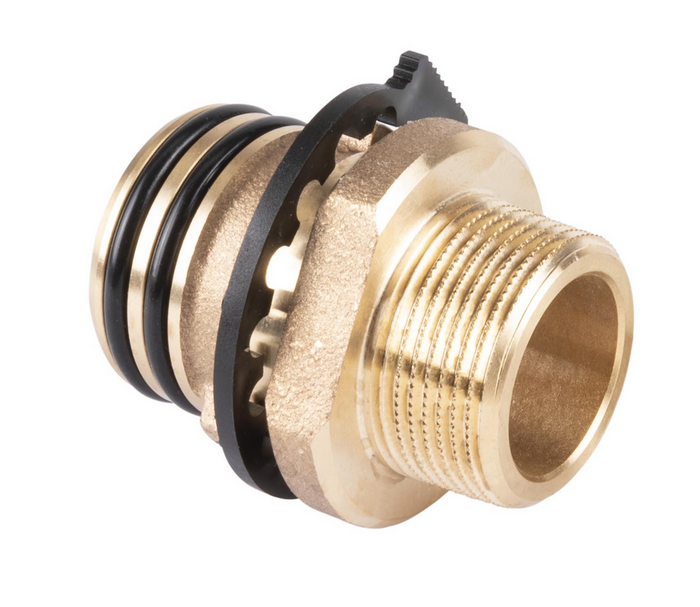

Transition fitting ZAK® (ZAK 46) to male thread
| Material: | red brass |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
In combination with ZAK® fittings model no. 700/701, the fitting is used as transition inside the building from pipe entry fittings 681-00, 683-00, 703-00, 704-00 and 705-00/706-00 to connect water meters.
With one tapered male thread and with one ZAK® spigot end (ZAK 46) for the restraint connection with ZAK® sockets.
|
Order Nr.
|
*) |
L |
L1 |
Outlet O1 |
Outlet O2 |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
6189034632
|
1) 2) | 70 mm | 20 mm | AG 1" | ZAK 46 | 0,40 kg | |||
|
6189034640
|
1) | 70 mm | 21,5 mm | AG 1 1/4" | ZAK 46 | 0,50 kg |
