- 1)

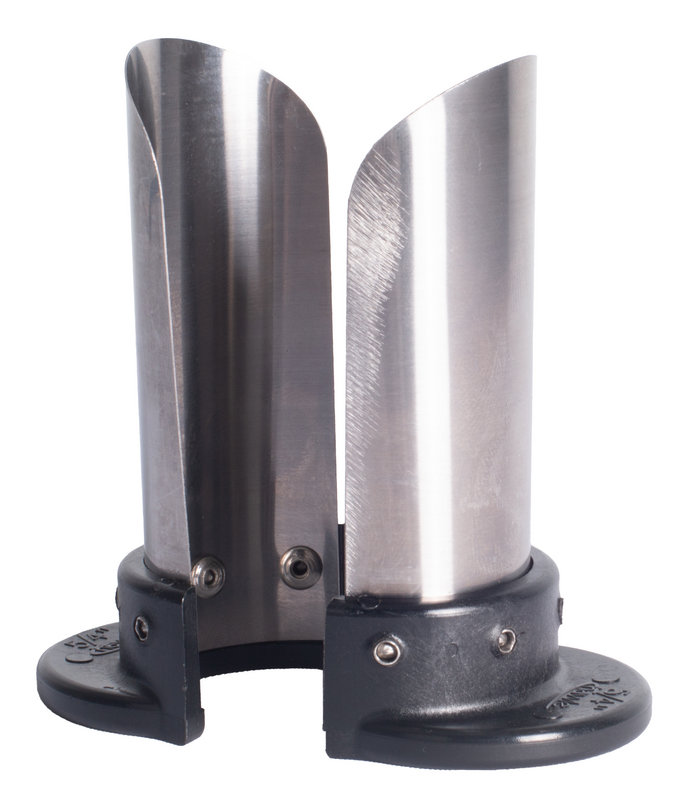

- Version with 2 extractors
- 2)
- Version with 3 extractors
601-00
Extractors
| Material: |
Handles: aluminium sheet metal, riveted with handle |
|---|---|
| Medium | Water / Sewage |
Extractors are used to dismantle plastic pipes in push-fit sockets.
Dismantling procedure:
- Prior to pushing in the extractors relieve the fitting or pipe in installation direction
- Push in extractors fully
- Pull plastic pipe out performing a rotating movement
Please note: when the fitting is used again, the grip ring and the O-ring, if any, shall also be replaced.
|
Order Nr.
|
*) |
DN |
d |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|
|
6010200000
|
1) | 16 | 20 mm | 0,02 kg | |||
|
6010250000
|
1) | 20 | 25 mm | 0,04 kg | |||
|
6010320000
|
1) | 25 | 32 mm | 0,05 kg | |||
|
6010400000
|
1) | 32 | 40 mm | 0,07 kg | |||
|
6010500000
|
1) | 40 | 50 mm | 0,10 kg | |||
|
6010630000
|
1) | 50 | 63 mm | 0,17 kg | |||
|
6010750000
|
2) | 65 | 75 mm | 0,26 kg | |||
|
6010900000
|
2) | 80 | 90 mm | 0,32 kg | |||
|
6011100000
|
2) | 100 | 110 mm | 0,40 kg |
|
