514-00

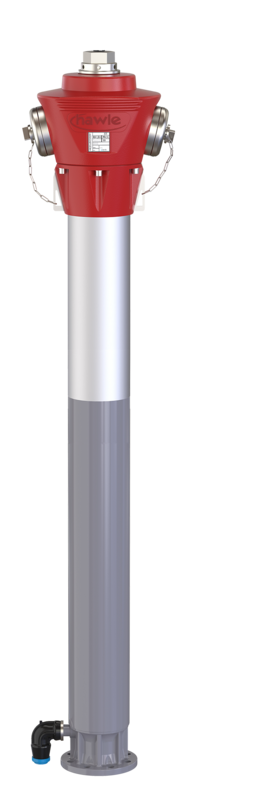

Above ground hydrant of stainless steel with 2 x outlet B

Hawle above ground hydrants are made exclusively of high-grade and non-corroding materials. The choice of materials ensures high functionality and consistently good appearance in all environmental situations (salt spreading, industrial areas, coastal regions).

The hydrant head has another advantage. To align the outlets, it can be turned to each intermediate position from 0° to 360° even when installed.

Moreover, there are some advantages for storage, transportation and installation.
The materials used have a considerably lower weight than conventional above ground hydrants of cast iron.

All Hawle above ground hydrants feature a flow rate at a differential pressure of 1 bar.

Hydrant head: red, RAL 3003
Fixed couplings: 2 x B
Outlet: flange
Defined stop on opening and closing
Drain-off system
CE marking

read more reduce
Material: Hydrant head: saltwater proof aluminium alloy provided with UV resistant
coating
Standpipe: thick-walled stainless steel tube with a Hawle epoxy powder coated in the underfloor area.
Valve rod/spindle: stainless steel
Valve body: stainless steel
Max. operating Pressure: Potable water: 16 bar
Medium Water

Hawle above ground hydrants are made exclusively of high-grade and non-corroding materials. The choice of materials ensures high functionality and consistently good appearance in all environmental situations (salt spreading, industrial areas, coastal regions).

The hydrant head has another advantage. To align the outlets, it can be turned to each intermediate position from 0° to 360° even when installed.

Moreover, there are some advantages for storage, transportation and installation.
The materials used have a considerably lower weight than conventional above ground hydrants of cast iron.

All Hawle above ground hydrants feature a flow rate at a differential pressure of 1 bar.

Hydrant head: red, RAL 3003
Fixed couplings: 2 x B
Outlet: flange
Defined stop on opening and closing
Drain-off system
CE marking

Contacts
Wish List
Order Nr.

DN
Pipe cover depth
Outlet A
Outlet B
C outlet
h1
h2
h4
 Medium Weight Specification 3D Basket
5140801001
 80 1,00 - 2 - 1000 mm 800 mm 1880 mm 51,00 kg
5140801251
 80 1,25 - 2 - 1000 mm 800 mm 2130 mm 56,00 kg
5140801501
 80 1,50 - 2 - 1000 mm 800 mm 2380 mm 61,00 kg
5141001001
 100 1,00 - 2 - 1000 mm 800 mm 1880 mm 54,00 kg
5141001251
 100 1,25 - 2 - 1000 mm 800 mm 2130 mm 59,00 kg
5141001501
 100 1,50 - 2 - 1000 mm 800 mm 2380 mm 64,00 kg
Wish List

Hydrant head possible in any desired RAL colour on request

Pressure indication at hydrant head possible against surcharge on request
