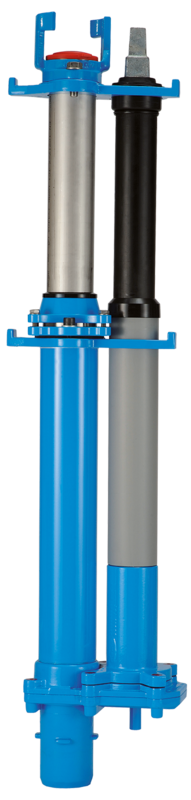

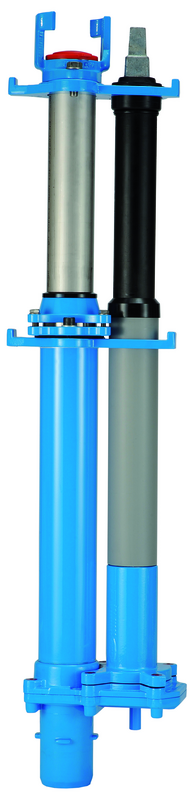

Freeflow underground hydrant "height adjustable"

The height adjustable freeflow underground hydrant features a telescopic medium pipe of stainless steel and a telescopic operating unit. Thus the underground hydrant can be adapted to the level of the road and/or of the surrounding terrain even when installed. Depending on the version, it can be adjusted between 300 to 550 mm. The medium pipe is locked via a gripping mechanism, with the telescopic operating tube being safely held via the coupling plate.

Analogous to the standard version of the freeflow underground hydrant shutting off is effected via a shut-off blade of stainless steel.

Q = 153 m³/h at 1 bar pressure difference
Min. cross section: 70 mm
Outlet: BAIO®, flange or PE
Opening/closing: 15 revolutions
Drain-off system:

For hydrants with BAIO® spigot end outlet the dirt cover and locking ring (see supplementary products) shall be used.

read more reduce
Material: Cast components: GJS-400, Hawle epoxy powder coated
Medium pipe: stainless steel, Hawle epoxy powder coated
Spindle/shut-off blade/shut-off device: stainless steel
Protection jacket: PP (polypropylene)
Gaskets: EPDM acc. to KTW-BWGL for water
Max. operating Pressure: Potable water: 16 bar
Medium Water

The height adjustable freeflow underground hydrant features a telescopic medium pipe of stainless steel and a telescopic operating unit. Thus the underground hydrant can be adapted to the level of the road and/or of the surrounding terrain even when installed. Depending on the version, it can be adjusted between 300 to 550 mm. The medium pipe is locked via a gripping mechanism, with the telescopic operating tube being safely held via the coupling plate.

Analogous to the standard version of the freeflow underground hydrant shutting off is effected via a shut-off blade of stainless steel.

Q = 153 m³/h at 1 bar pressure difference
Min. cross section: 70 mm
Outlet: BAIO®, flange or PE
Opening/closing: 15 revolutions
Drain-off system:

For hydrants with BAIO® spigot end outlet the dirt cover and locking ring (see supplementary products) shall be used.

Contacts
Wish List
Order Nr.
*)
DN
Pipe cover depth
Connection
A
B
B1
D
Extensions
 Medium Weight Specification Basket
4940801001
 2) 80 1,00 - 1,30 Spigot end 805 mm 280 mm 305 mm 190 mm 300 mm 38,00 kg
4940801251
 2) 80 1,25 - 1,55 Spigot end 1065 mm 280 mm 305 mm 190 mm 300 mm 43,00 kg
4940801301
 2) 80 1,30 - 1,65 Spigot end 1075 mm 280 mm 305 mm 190 mm 350 mm 43,00 kg
4940801501
 2) 80 1,50 - 2,05 Spigot end 1315 mm 280 mm 305 mm 190 mm 550 mm 48,00 kg
4940802001
 2) 80 2,00 - 2,55 Spigot end 1815 mm 280 mm 305 mm 190 mm 550 mm 72,00 kg
4940811001
 1) 80 1,00 - 1,30 Flange 740 mm 280 mm 305 mm 190 mm 300 mm 40,00 kg
4940811251
 1) 80 1,25 - 1,55 Flange 990 mm 280 mm 305 mm 190 mm 300 mm 52,00 kg
4940811301
 1) 80 1,30 - 1,65 Flange 1040 mm 280 mm 305 mm 190 mm 350 mm 43,00 kg
4940811501
 1) 80 1,50 - 2,05 Flange 1240 mm 280 mm 305 mm 190 mm 550 mm 58,00 kg
4940812001
 1) 80 2,00 - 2,55 Flange 1740 mm 280 mm 305 mm 190 mm 550 mm 75,00 kg
Wish List
1)
with flange connection DN 100 on request
2)
For version with BAIO® spigot end, a dirt cover and locking ring (Ord. No.: 490.080.0800) must be used.

Special lengths on request.

Alternatively: version with push-on cover (factory preinstalled) model no.: 4900800520

Breakaway set/predetermined breaking point on request (Order No.: 490.080.0580)
