492-00

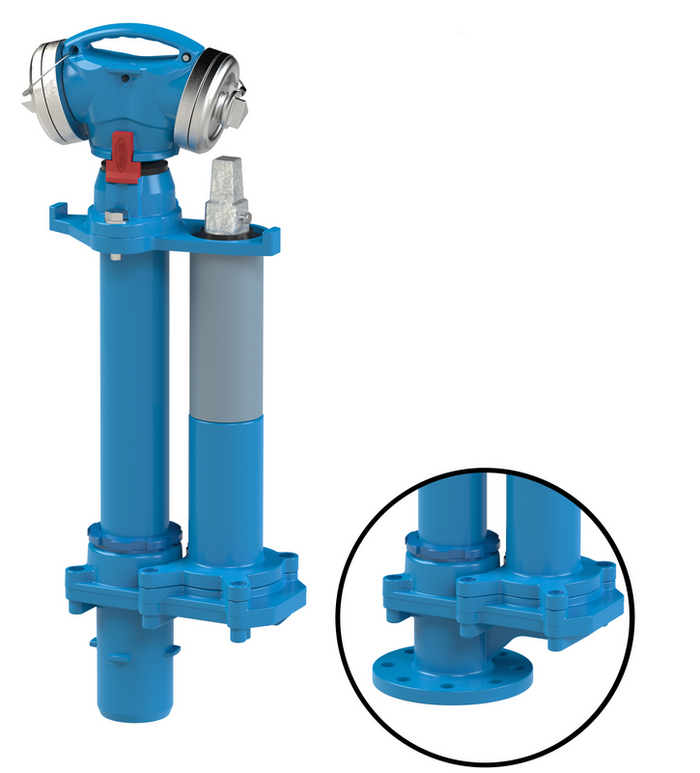

Tele-Hydrant®

The Tele-Hydrant® is an advanced version of the freeflow underground hydrant. Due to its special design, the Tele-Hydrant® combines the advantages of above ground and underground hydrants.

The standpipe and the hydrant head of the Tele-Hydrant® are already integrated just as in case of the above ground hydrant. This permits a quick and easy access when water is needed. Analogous to the standard version of the freeflow underground hydrant, shutting off is effected via a shut-off blade of stainless steel.

When the Tele-Hydrant® is to be used, the integral standpipe is pulled upward above road level or ground level after removing the surface box. After water is with drainagl, the standpipe can be lowered again into the box. Thus the Tele-Hydrant® is protected in areas with increased traffic volume as well as from unauthorized use.

Q at 1 bar pressure difference:
2 C = 143 m³/h, 2 B = 154 m³/h
Fixed couplings acc. to
Outlet: BAIO®, flange or PE
Opening/closing: 15 revolutions
Drain-off system
CE marking

read more reduce
Material: Cast components: GJS-400, Hawle epoxy powder coated
Medium pipe: stainless steel, Hawle epoxy powder coated
Spindle/shut-off blade/shut-off device: stainless steel
Protection jacket: PP (polypropylene)
Gaskets: EPDM acc. to KTW-BWGL for water
Max. operating Pressure: Potable water: 16 bar
Medium Water

The Tele-Hydrant® is an advanced version of the freeflow underground hydrant. Due to its special design, the Tele-Hydrant® combines the advantages of above ground and underground hydrants.

The standpipe and the hydrant head of the Tele-Hydrant® are already integrated just as in case of the above ground hydrant. This permits a quick and easy access when water is needed. Analogous to the standard version of the freeflow underground hydrant, shutting off is effected via a shut-off blade of stainless steel.

When the Tele-Hydrant® is to be used, the integral standpipe is pulled upward above road level or ground level after removing the surface box. After water is with drainagl, the standpipe can be lowered again into the box. Thus the Tele-Hydrant® is protected in areas with increased traffic volume as well as from unauthorized use.

Q at 1 bar pressure difference:
2 C = 143 m³/h, 2 B = 154 m³/h
Fixed couplings acc. to
Outlet: BAIO®, flange or PE
Opening/closing: 15 revolutions
Drain-off system
CE marking

Contacts
Wish List
Order Nr.
*)
DN
Pipe cover depth
Outlet B
C outlet
Connection
A
B
B1
D
H
H1
 Medium Weight Specification Basket
4920801001
 2) 80 1,00 - 2 Spigot end DN 80 835 mm 280 mm 320 mm 200 mm 260 mm 1260 mm 35,00 kg
4920801251
 2) 80 1,25 - 2 Spigot end DN 80 1085 mm 280 mm 320 mm 200 mm 260 mm 1760 mm 39,00 kg
4920801501
 2) 80 1,50 - 2 Spigot end DN 80 1335 mm 280 mm 320 mm 200 mm 260 mm 2010 mm 43,00 kg
4920811001
 1) 80 1,00 - 2 Flange DN 80 810 mm 280 mm 320 mm 200 mm 260 mm 1235 mm 38,00 kg
4920811251
 1) 80 1,25 - 2 Flange DN 80 1060 mm 280 mm 320 mm 200 mm 260 mm 1735 mm 46,00 kg
4920811501
 1) 80 1,50 - 2 Flange DN 80 1310 mm 280 mm 320 mm 200 mm 260 mm 1985 mm 48,00 kg
4924801001
 2) 80 1,00 2 - Spigot end DN 80 870 mm 280 mm 330 mm 200 mm 260 mm 1290 mm 39,00 kg
4924801251
 2) 80 1,25 2 - Spigot end DN 80 1120 mm 280 mm 330 mm 200 mm 260 mm 1790 mm 40,00 kg
4924801501
 2) 80 1,50 2 - Spigot end DN 80 1370 mm 280 mm 330 mm 200 mm 260 mm 2040 mm 46,00 kg
4924811001
 1) 80 1,00 2 - Flange DN 80 820 mm 280 mm 330 mm 200 mm 260 mm 1240 mm 40,00 kg
4924811251
 1) 80 1,25 2 - Flange DN 80 1070 mm 280 mm 330 mm 200 mm 260 mm 1740 mm 47,00 kg
4924811501
 1) 80 1,50 2 - Flange DN 80 1320 mm 280 mm 330 mm 200 mm 260 mm 1990 mm 48,00 kg
Wish List
1)
with flange connection DN 100 on request
2)
For version with BAIO® spigot end, a dirt cover and locking ring (Ord. No.: 490.080.0800) must be used.

Special lengths on request.

Height-adjustable version on request.

Surcharge for suction drainage device (Ord. No.: 491.080.0505) for installation in ground water.
