- 1)
- Special advantage in case of 4-hole flanges (old standard): flange can be rotated.
482-00

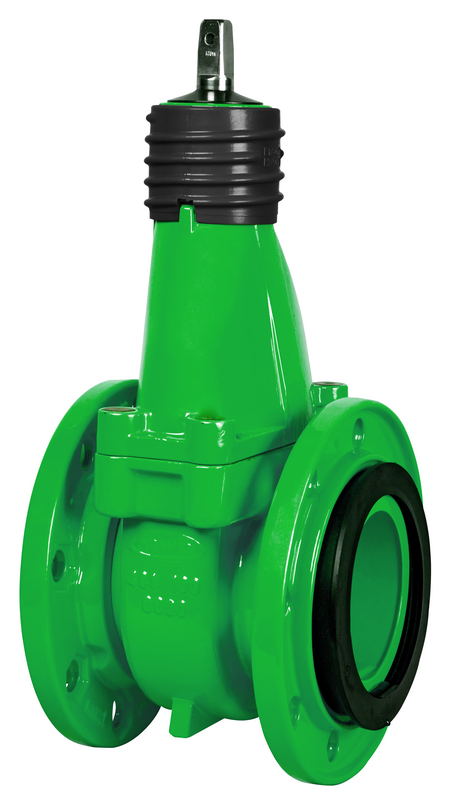

Sewage water knife gate valve with loose flanges, short
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle, shut-off blade: stainless steel O-ring gasket set: POM/NBR |
|---|---|
| Max. operating Pressure: | Sewage water: 10 bar |
| Medium | Sewage |
Beside its application in new constructions, the Hawle exchange gate valve for sewage water with restraint loose flange system is suitable for buried installation and plant installation mainly for the exchange of existing valves. The reliable and tight shut-off function is ensured via a shut-off blade of hard-rolled stainless steel and an O-ring gasket package. The gasket package prevents solids from sticking to the spindle and, in case of repair, permits the exchange of the valve bonnet without taking the pressure line out of service.
The flange gaskets are already included in the barrel gaskets. Therefore, no keying is required between the flanges.
Apart from its real function as shut-off valve, the exchange gate valve can also be used as dismantling piece because of the integral loose flange system (no additional dismantling piece required).
The valve can be operated via handwheel, extension spindle, or motor-driven multiturn actuators (for DN 80 and higher, on request).
Flange dimensions acc. to EN 1092-2
Face-to-face dimension:
Group 14 acc. to DIN EN 558-1
|
Order Nr.
|
*) |
DN |
PN |
d min. |
L |
H |
Square of spindle |
Medium | Weight | Specification | 3D | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4820800020
|
1) | 80 | 10 | 76 mm | 180 mm | 295 mm | 14,3 mm | 14,00 kg | ||||
|
4821000020
|
100 | 10 | 96 mm | 190 mm | 320 mm | 14,3 mm | 17,00 kg | |||||
|
4821250020
|
125 | 10 | 121 mm | 200 mm | 424 mm | 17,3 mm | 27,00 kg | |||||
|
4821500020
|
150 | 10 | 145 mm | 210 mm | 410 mm | 17,3 mm | 32,00 kg | |||||
|
4822000020
|
200 | 10 | 172 mm | 230 mm | 532 mm | 19,3 mm | 45,90 kg | |||||
|
4822500020
|
250 | 10 | 247 mm | 250 mm | 832 mm | 27,3 mm | 150,00 kg | |||||
|
4823000020
|
300 | 10 | 297 mm | 270 mm | 807 mm | 27,3 mm | 178,00 kg |
-
Pease note:
- For DN 80 and DN 100 use extension spindle and handwheel DN 50
- For DN 125 and DN 150 use extension spindle and handwheel DN 65/80
- For DN 200 use extension spindle and handwheel DN 125/150- For DN 250 and DN 300 use extension spindle and handwheel DN 250/350
-
Loose flange with special drilling pattern on request
|
Technical Documents
|
|---|
| Declaration of conformity - Sewage Gate Valves 480, 481, 482 |
