480-01

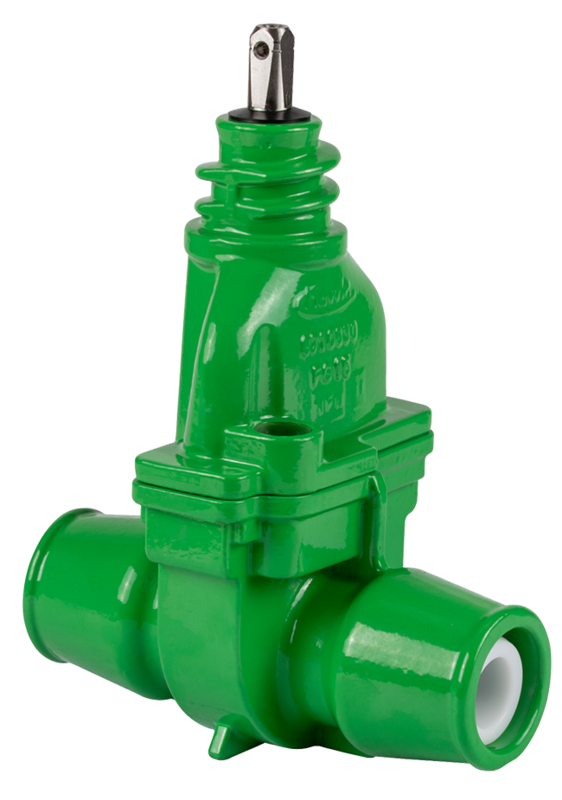

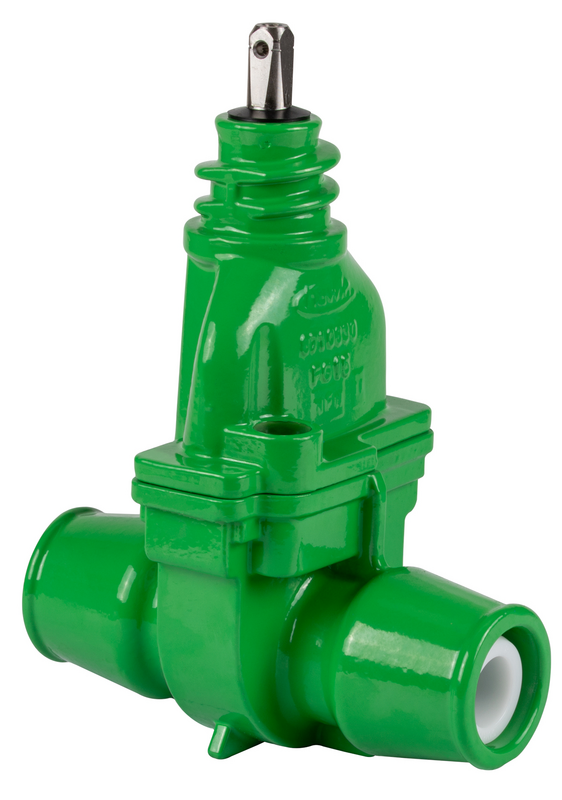

Service valve for sewage water with push-fit sockets
| Material: |
Body and bonnet: GJS-400, Hawle epoxy powder coated Spindle, shut-off blade: stainless steel Gaskets: NBR |
|---|---|
| Max. operating Pressure: | Sewage water: 10 bar |
| Medium | Sewage |
Service gate valves for sewage water with two restraint push-fit sockets for the restraint connection with PE pipes grades PE 80, PE 100 and PE-X. With corundum grip ring model no. 695 also available for PVC pipes.
The reliable and tight shut-off function is ensured via a shut-off blade of hard-rolled stainless steel and an O-ring gasket package. The gasket system prevents solids from sticking to the spindle and permits the exchange of the valve bonnet without taking the pressure line out of service.
When connecting PE pipes a support liner (model no. 590) must be used.
For underground pipeline construction and in distribution systems for wastewater disposal (no application in installation).
|
Order Nr.
|
*) |
d |
Description |
d min. |
L |
L1 |
H |
Square of spindle |
Medium | Weight | Specification | 3D | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4800400020
|
1) | 40 mm | 30 mm | 190 mm | 76 mm | 217 mm | 12,3 mm | 4,35 kg | |||||
|
4800500020
|
1) | 50 mm | 40 mm | 226 mm | 91 mm | 202 mm | 12,3 mm | 4,90 kg | |||||
|
4800630020
|
1) | 63 mm | 56 mm | 240 mm | 103 mm | 202 mm | 12,3 mm | 5,10 kg | |||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
-
Product numbers for use with PVC pipes on request.
-
When connecting PE pipes a support liner must be used.
-
For selecting the suitable handwheel, the dimension of the square of spindle must be observed.
|
