470-00G

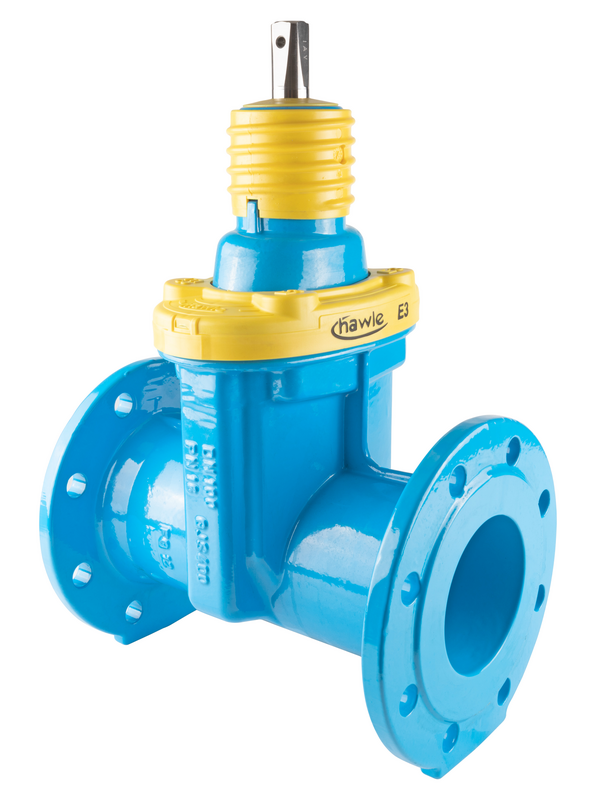

Flanged gate valve "E2" and "E3", Construction length basic row 15 according to DIN EN 558-1

Gate valve with oval body with two flanged ends acc. to EN 1092-2.

The valve can be operated via handwheel, extension spindle, or electric actuators (from DN 50, on request).

Face-to-face dimension:
Group 15 acc. to DIN EN 558-1

Use for gas: tested PG-1 or PG-3; incl. acceptance certificate 3.1 acc. to EN 10204 for tightness and strength test performed.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, NBR for gas
Gaskets: NBR for gas
E3-edge protrection ring: PE
Max. operating Pressure: See table
Medium Gas

Gate valve with oval body with two flanged ends acc. to EN 1092-2.

The valve can be operated via handwheel, extension spindle, or electric actuators (from DN 50, on request).

Face-to-face dimension:
Group 15 acc. to DIN EN 558-1

Use for gas: tested PG-1 or PG-3; incl. acceptance certificate 3.1 acc. to EN 10204 for tightness and strength test performed.

Contacts
Wish List
Order Nr.

DN
Operating pressure max.
PN
Type / Outlet
L

H
Description
 Medium Weight Specification Basket
4700320100
 32 Gas: 5 bar 10|16 Typ E2 240 mm 200 mm PG 1 8,50 kg
4700320300
 32 Gas: 5 bar 10|16 Typ E2 240 mm 200 mm PG 3 8,50 kg
4700400100
 40 Gas: 5 bar 10|16 Typ E2 240 mm 200 mm PG 1 8,50 kg
4700400300
 40 Gas: 5 bar 10|16 Typ E2 240 mm 200 mm PG 3 8,50 kg
4700500101
 50 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 250 mm 260 mm PG 1 11,70 kg
4700650103
 65 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 270 mm 305 mm PG 1 18,50 kg
4700650303
 65 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 270 mm 305 mm PG 3 18,50 kg
4700800103
 80 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 280 mm 315 mm PG 1 20,50 kg
4700800303
 80 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 280 mm 315 mm PG 3 20,50 kg
4701000101
 100 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 300 mm 375 mm PG 1 27,20 kg
4701000301
 100 Gas: 16 bar|Hydrogen (H2): 16 bar 10|16 Typ E2 300 mm 375 mm PG 3 27,20 kg
4701250103
 125 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 325 mm 420 mm PG 1 40,50 kg
4701250303
 125 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 325 mm 420 mm PG 3 40,50 kg
4701500103
 150 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 350 mm 435 mm PG 1 43,50 kg
4701500303
 150 Gas: 16 bar|Hydrogen (H2): 16 bar 10/16 Typ E3 350 mm 435 mm PG 3 43,50 kg
4702000101
 200 Gas: 10 bar 10 Typ E2 400 mm 565 mm PG 1 82,00 kg
4702000161
 200 Gas: 16 bar 16 Typ E2 400 mm 565 mm PG 1 82,00 kg
4702000303
 200 Gas: 10 bar 10 Typ E3 400 mm 540 mm PG 3 73,00 kg
4702000361
 200 Gas: 16 bar 16 Typ E2 400 mm 565 mm PG 3 82,00 kg
4702500103
 250 Gas: 10 bar 10 Typ E3 450 mm 650 mm PG 1 114,00 kg
4702500163
 250 Gas: 16 bar 16 Typ E3 450 mm 650 mm PG 1 115,00 kg
4703000103
 300 Gas: 10 bar 10 Typ E3 500 mm 735 mm PG 1 168,00 kg
4703000163
 300 Gas: 16 bar 16 Typ E3 500 mm 735 mm PG 1 151,00 kg
4703000303
 300 Gas: 10 bar 10 Typ E3 500 mm 735 mm PG 3 168,00 kg
4703000363
 300 Gas: 16 bar 16 Typ E3 500 mm 735 mm PG 3 151,00 kg
4704000101
 400 Gas: 10 bar 10 Typ E2 600 mm 975 mm PG 1 300,00 kg
