- Connecting flange DN 65 for Württemberg chamber hydrant (hole circle: 140 mm / 4-hole)
448-01

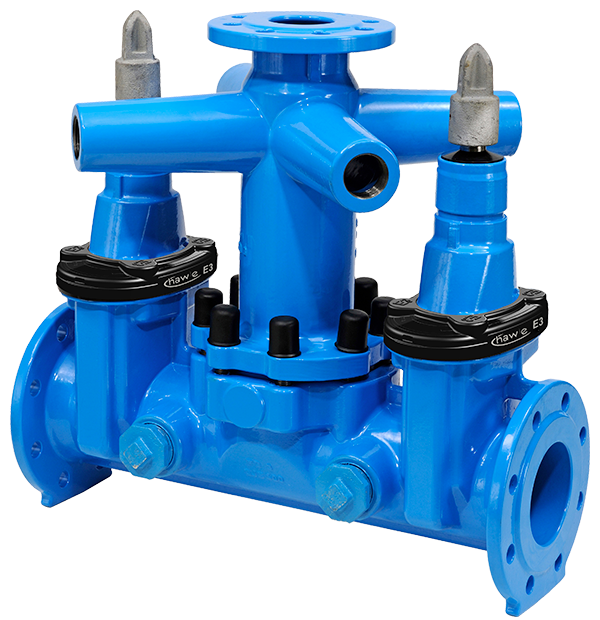

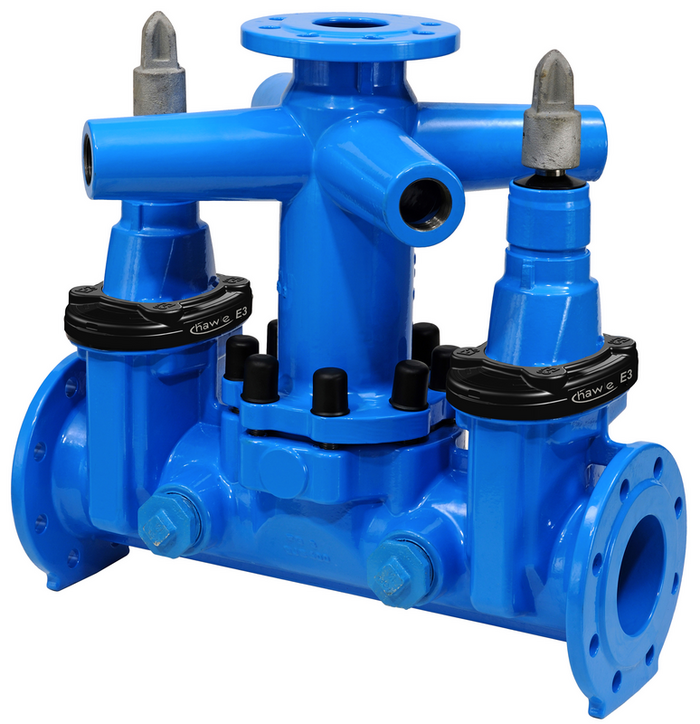

Combi-II gate valve "WS/T" with double flanged taper
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, EPDM inside and outside for potable water Gaskets: EPDM for potable water E3-edge protection ring: PE |
|---|---|
| Max. operating Pressure: | See table |
| Medium | Water |
Combi-II gate valve with two flanged ends and double flanged taper. For the installation of up to two gate valves in confined space. The vertical outlet at the double flanged taper serves the purpose of integrating hydrants or air valve sets, the horizontal female thread outlets can be used to connect service lines. At the housing there are four more female thread outlets 1 1/2".
The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled.
Delivered with installed square end cap for manhole installation.
Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles on request.
Flange dimensions: acc. to EN 1092-2
|
Order Nr.
|
*) |
DN |
DN1 |
Operating pressure max. |
PN |
Type / Outlet |
Body/female thread |
Female thread outlets |
L |
B |
F |
Numbers of gate valves |
H1 |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4481000640
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 575 mm | 385 mm | 230 mm | - | 63,00 kg | ||||
|
4481000650
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 575 mm | 385 mm | 230 mm | - | 63,00 kg | ||||
|
4481000840
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 575 mm | 385 mm | 230 mm | - | 63,00 kg | |||||
|
4481000850
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 575 mm | 385 mm | 230 mm | - | 63,00 kg | |||||
|
4481001640
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 575 mm | 385 mm | 230 mm | 1 | 345 mm | 70,00 kg | |||
|
4481001650
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 575 mm | 385 mm | 230 mm | 1 | 345 mm | 58,00 kg | |||
|
4481001840
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 575 mm | 385 mm | 230 mm | 1 | 345 mm | 58,00 kg | ||||
|
4481001850
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 575 mm | 385 mm | 230 mm | 1 | 345 mm | 70,00 kg | ||||
|
4481002640
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 575 mm | 385 mm | 230 mm | 2 | 345 mm | 68,00 kg | |||
|
4481002650
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 575 mm | 385 mm | 230 mm | 2 | 345 mm | 60,00 kg | |||
|
4481002840
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 575 mm | 385 mm | 230 mm | 2 | 345 mm | 82,00 kg | ||||
|
4481002850
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 575 mm | 385 mm | 230 mm | 2 | 345 mm | 71,00 kg | ||||
|
4481500640
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 630 mm | 420 mm | 250 mm | - | 67,50 kg | ||||
|
4481500650
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 630 mm | 420 mm | 250 mm | - | 67,50 kg | ||||
|
4481500840
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 630 mm | 420 mm | 250 mm | - | 68,00 kg | |||||
|
4481500850
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 630 mm | 420 mm | 250 mm | - | 68,00 kg | |||||
|
4481501640
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 630 mm | 420 mm | 250 mm | 1 | 435 mm | 82,00 kg | |||
|
4481501650
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 630 mm | 420 mm | 250 mm | 1 | 435 mm | 80,00 kg | |||
|
4481501840
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 630 mm | 420 mm | 250 mm | 1 | 435 mm | 80,00 kg | ||||
|
4481501850
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 630 mm | 420 mm | 250 mm | 1 | 435 mm | 80,00 kg | ||||
|
4481502640
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 630 mm | 420 mm | 250 mm | 2 | 435 mm | 84,00 kg | |||
|
4481502650
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 630 mm | 420 mm | 250 mm | 2 | 435 mm | 100,00 kg | |||
|
4481502840
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/4" | 630 mm | 420 mm | 250 mm | 2 | 435 mm | 84,00 kg | ||||
|
4481502850
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 1 1/2" | 630 mm | 420 mm | 250 mm | 2 | 435 mm | 84,00 kg | ||||
|
4482000640
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | - | 109,00 kg | ||||
|
4482000650
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | - | 109,00 kg | ||||
|
4482000840
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | - | 110,00 kg | |||||
|
4482000850
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | - | 110,00 kg | |||||
|
4482001640
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 126,00 kg | |||
|
4482001650
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 126,00 kg | |||
|
4482001840
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 127,00 kg | ||||
|
4482001850
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 127,00 kg | ||||
|
4482002640
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg | |||
|
4482002650
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg | |||
|
4482002840
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg | ||||
|
4482002850
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg | ||||
|
4482010640
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | - | 109,00 kg | ||||
|
4482010650
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | - | 109,00 kg | ||||
|
4482010840
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | - | 110,00 kg | |||||
|
4482010850
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | - | 110,00 kg | |||||
|
4482011640
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 126,00 kg | |||
|
4482011650
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 126,00 kg | |||
|
4482011840
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 156,00 kg | ||||
|
4482011850
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 1 | 540 mm | 156,00 kg | ||||
|
4482012640
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg | |||
|
4482012650
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg | |||
|
4482012840
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/4" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg | ||||
|
4482012850
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 1 1/2" | 770 mm | 540 mm | 350 mm | 2 | 540 mm | 156,00 kg |
-
Version for buried installation on request.
|
