Combi-II gate valve "WS" with vertical reducing flange

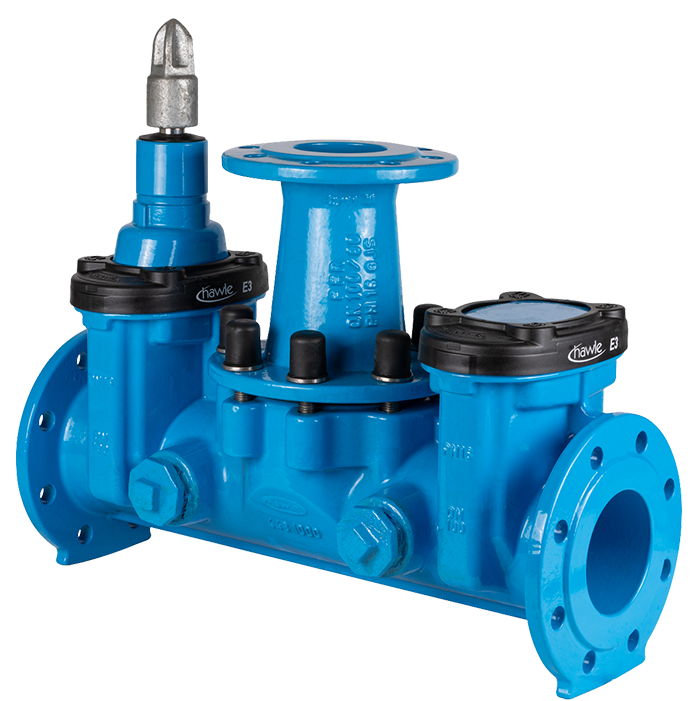

Combi-II gate valve with two flanged ends and vertical reducing flange. For the installation of up to two gate valves in confined space. The vertical flanged outlet serves the purpose of connecting hydrants or air valve sets. The body is provided with 4 female thread outlets 1 1/2" for the connection of service valves.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled.

Delivered with installed square end cap for manhole installation. Version with round thread adaptor for the pinless fixing of Hawle extension spindles on request.

Flange dimensions: acc. to EN 1092-2

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water
Gaskets: EPDM acc.to KTW-BWGL for water
E3-edge protection ring: PE
Max. operating Pressure: See table
Medium Water

Combi-II gate valve with two flanged ends and vertical reducing flange. For the installation of up to two gate valves in confined space. The vertical flanged outlet serves the purpose of connecting hydrants or air valve sets. The body is provided with 4 female thread outlets 1 1/2" for the connection of service valves.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled.

Delivered with installed square end cap for manhole installation. Version with round thread adaptor for the pinless fixing of Hawle extension spindles on request.

Flange dimensions: acc. to EN 1092-2

Contacts
Wish List
Order Nr.
*)
DN
DN1
Operating pressure max.
PN
Type / Outlet
Body/female
thread
L

B
F
Numbers of
gate valves
H1
 Medium Weight Specification Basket
4481000000
 1) 100 65 16 bar 10|16 Typ E3 1 1/2" 575 mm 385 mm 230 mm -   44,80 kg
4481000008
   100 80 16 bar 10|16 Typ E3 1 1/2" 575 mm 385 mm 230 mm -   44,80 kg
4481001000
 1) 100 65 16 bar 10|16 Typ E3 1 1/2" 575 mm 385 mm 230 mm 1 345 mm 49,50 kg
4481001008
   100 80 16 bar 10|16 Typ E3 1 1/2" 575 mm 385 mm 230 mm 1 345 mm 50,00 kg
4481002000
 1) 100 65 16 bar 10|16 Typ E3 1 1/2" 575 mm 385 mm 230 mm 2 345 mm 56,20 kg
4481002008
   100 80 16 bar 10|16 Typ E3 1 1/2" 575 mm 385 mm 230 mm 2 345 mm 68,00 kg
4481500000
 1) 150 65 16 bar 10|16 Typ E3 1 1/2" 630 mm 420 mm 250 mm -   59,60 kg
4481500008
   150 80 16 bar 10|16 Typ E3 1 1/2" 630 mm 420 mm 250 mm -   60,00 kg
4481501000
 1) 150 65 16 bar 10|16 Typ E3 1 1/2" 630 mm 420 mm 250 mm 1 435 mm 72,50 kg
4481501008
   150 80 16 bar 10|16 Typ E3 1 1/2" 630 mm 420 mm 250 mm 1 435 mm 72,50 kg
4481502000
 1) 150 65 16 bar 10|16 Typ E3 1 1/2" 630 mm 420 mm 250 mm 2 435 mm 85,20 kg
4481502008
   150 80 16 bar 10|16 Typ E3 1 1/2" 630 mm 420 mm 250 mm 2 435 mm 85,20 kg
4482000000
 1) 200 65 10 bar 10 Typ E3 1 1/2" 770 mm 540 mm 350 mm -   104,00 kg
4482000008
   200 80 10 bar 10 Typ E3 1 1/2" 770 mm 540 mm 350 mm -   104,00 kg
4482001000
 1) 200 65 10 bar 10 Typ E3 1 1/2" 770 mm 540 mm 350 mm 1 540 mm 120,00 kg
4482001008
   200 80 10 bar 10 Typ E3 1 1/2" 770 mm 540 mm 350 mm 1 540 mm 120,00 kg
4482002000
 1) 200 65 10 bar 10 Typ E3 1 1/2" 770 mm 540 mm 350 mm 2 540 mm 128,00 kg
4482002008
   200 80 10 bar 10 Typ E3 1 1/2" 770 mm 540 mm 350 mm 2 540 mm 146,00 kg
4482010000
 1) 200 65 16 bar 16 Typ E3 1 1/2" 770 mm 540 mm 350 mm -   104,00 kg
4482010008
   200 80 16 bar 16 Typ E3 1 1/2" 770 mm 540 mm 350 mm -   104,00 kg
4482011000
 1) 200 65 16 bar 16 Typ E3 1 1/2" 770 mm 540 mm 350 mm 1 540 mm 120,00 kg
4482011008
   200 80 16 bar 16 Typ E3 1 1/2" 770 mm 540 mm 350 mm 1 540 mm 120,00 kg
4482012000
 1) 200 65 16 bar 16 Typ E3 1 1/2" 770 mm 540 mm 350 mm 2 540 mm 128,00 kg
4482012008
   200 80 16 bar 16 Typ E3 1 1/2" 770 mm 540 mm 350 mm 2 540 mm 146,00 kg
Wish List
1)
Connecting flange DN 65 (hole circle: 140 mm / 4-hole)

Version for buried installation on request.
