- 1)
- Connecting flange DN 65 (hole circle: 140 mm / 4-hole)
447-01

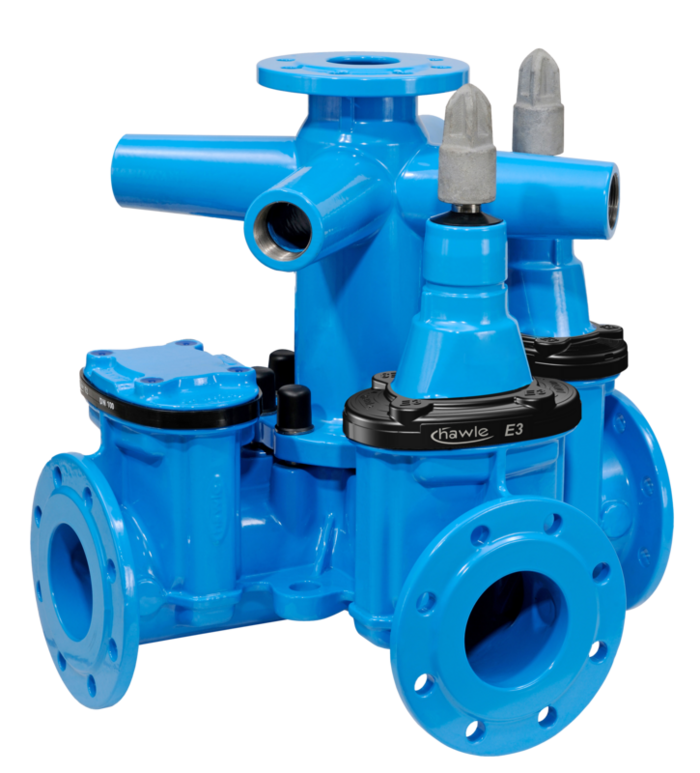

Combi-III gate valve "WS/T" with double flanged taper
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water Gaskets: EPDM acc. to KTW- BWGL for water E3-edge protection ring: PE |
|---|---|
| Max. operating Pressure: | See table |
| Medium | Water |
Combi-III gate valve with flanges at all ends and double flanged taper. For the installation of valve junctions with up to 3 gate valves in most confined space. The vertical outlet at the double flanged taper serves the purpose of integrating hydrants or air valve sets, the horizontal female thread outlets can be used to connect service lines.
The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.
Delivered with installed square end cap for manhole installation. Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles on request.
Flange dimensions: acc. to EN 1092-2
|
Order Nr.
|
*) |
DN |
DN1 |
Operating pressure max. |
PN |
Type / Outlet |
Female thread outlets |
L |
L1 |
B |
H1 |
Numbers of gate valves |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4471000640
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | - | 75,00 kg | |||
|
4471000650
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | - | 75,00 kg | |||
|
4471000840
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | - | 75,00 kg | ||||
|
4471000850
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | - | 75,00 kg | ||||
|
4471001640
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | 1 | 86,00 kg | |||
|
4471001650
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | 1 | 86,00 kg | |||
|
4471001840
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | 1 | 86,00 kg | ||||
|
4471001850
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | 1 | 86,00 kg | ||||
|
4471002640
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | 2 | 86,00 kg | |||
|
4471002650
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | 2 | 86,00 kg | |||
|
4471002840
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | 2 | 87,00 kg | ||||
|
4471002850
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | 2 | 87,00 kg | ||||
|
4471003640
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | 3 | 94,00 kg | |||
|
4471003650
|
1) | 100 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | 3 | 94,00 kg | |||
|
4471003840
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 555 mm | 278 mm | 365 mm | 345 mm | 3 | 100,00 kg | ||||
|
4471003850
|
100 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 555 mm | 278 mm | 365 mm | 345 mm | 3 | 101,00 kg | ||||
|
4471500640
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | - | 120,00 kg | |||
|
4471500650
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 625 mm | 313 mm | 415 mm | 435 mm | - | 120,00 kg | |||
|
4471500840
|
150 | 80 | 16 bar | 10/16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | - | 121,00 kg | ||||
|
4471500850
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 625 mm | 313 mm | 415 mm | 435 mm | - | 121,00 kg | ||||
|
4471501640
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | 1 | 132,00 kg | |||
|
4471501650
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 625 mm | 313 mm | 415 mm | 435 mm | 1 | 132,00 kg | |||
|
4471501840
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | 1 | 135,00 kg | ||||
|
4471501850
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 625 mm | 313 mm | 415 mm | 435 mm | 1 | 135,00 kg | ||||
|
4471502640
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | 2 | 137,00 kg | |||
|
4471502650
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 435 mm | 2 | 139,00 kg | |||
|
4471502840
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | 2 | 139,00 kg | ||||
|
4471502850
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 435 mm | 2 | 139,00 kg | ||||
|
4471503640
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | 3 | 147,50 kg | |||
|
4471503650
|
1) | 150 | 65 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 625 mm | 313 mm | 415 mm | 435 mm | 3 | 135,00 kg | |||
|
4471503840
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/4" | 625 mm | 313 mm | 415 mm | 435 mm | 3 | 143,00 kg | ||||
|
4471503850
|
150 | 80 | 16 bar | 10|16 | Typ E3 | 1 1/2" | 625 mm | 313 mm | 415 mm | 435 mm | 3 | 140,00 kg | ||||
|
4472000640
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | - | 194,00 kg | |||
|
4472000650
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | - | 194,00 kg | |||
|
4472000840
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | - | 195,00 kg | ||||
|
4472000850
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | - | 195,00 kg | ||||
|
4472001640
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 191,00 kg | |||
|
4472001650
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 215,00 kg | |||
|
4472001840
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 216,00 kg | ||||
|
4472001850
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 216,00 kg | ||||
|
4472002640
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 227,00 kg | |||
|
4472002650
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 227,00 kg | |||
|
4472002840
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 228,00 kg | ||||
|
4472002850
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 228,00 kg | ||||
|
4472003640
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 241,00 kg | |||
|
4472003650
|
1) | 200 | 65 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 217,00 kg | |||
|
4472003840
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 241,00 kg | ||||
|
4472003850
|
200 | 80 | 10 bar | 10 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 241,00 kg | ||||
|
4472010640
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | - | 194,00 kg | |||
|
4472010650
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | - | 194,00 kg | |||
|
4472010840
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | - | 195,00 kg | ||||
|
4472010850
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | - | 195,00 kg | ||||
|
4472011640
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 191,00 kg | |||
|
4472011650
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 215,00 kg | |||
|
4472011840
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 216,00 kg | ||||
|
4472011850
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 1 | 216,00 kg | ||||
|
4472012640
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 227,00 kg | |||
|
4472012650
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 241,00 kg | |||
|
4472012840
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 228,00 kg | ||||
|
4472012850
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 2 | 228,00 kg | ||||
|
4472013640
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 241,00 kg | |||
|
4472013650
|
1) | 200 | 65 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 220,00 kg | |||
|
4472013840
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/4" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 241,00 kg | ||||
|
4472013850
|
200 | 80 | 16 bar | 16 | Typ E3 | 1 1/2" | 695 mm | 348 mm | 465 mm | 540 mm | 3 | 241,00 kg |
-
Female thread 3/4" at body, for manometer, ball valve, etc. - on request
-
Version for buried installation on request.
-
Suitable construction tube for combi valves (Order.-Nr. 440 000 15000) on request.
|
