447-00

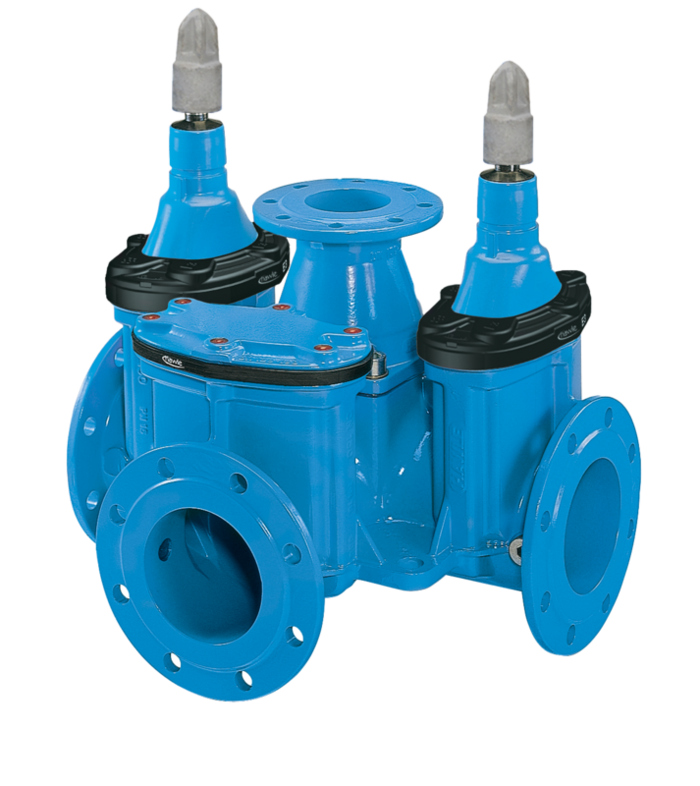

Combi-III gate valve "WS" with vertical reducing flange

Combi-III gate valve with flanges at all ends, and with vertical reducing flange. For the installation of valve junctions with up to 3 gate valves in confined space. The vertical flanged outlet serves the purpose of connecting hydrants or air valve sets.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.

Delivered with installed square end cap for manhole installation. Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles on request.

Flange dimensions: acc. to EN 1092-2

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside for potable water
Gasket: EPDM for potable water
E3-edge protection ring: PE
Max. operating Pressure: See table
Medium Water

Combi-III gate valve with flanges at all ends, and with vertical reducing flange. For the installation of valve junctions with up to 3 gate valves in confined space. The vertical flanged outlet serves the purpose of connecting hydrants or air valve sets.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.

Delivered with installed square end cap for manhole installation. Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles on request.

Flange dimensions: acc. to EN 1092-2

Contacts
Wish List
Order Nr.
*)
DN
DN1
Operating pressure max.
PN
Type / Outlet
L

L1
B
H1
Numbers of
gate valves
 Medium Weight Specification Basket
4471000000
 1) 100 65 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm - 70,00 kg
4471000008
   100 80 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm - 70,00 kg
4471001000
 1) 100 65 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm 1 76,50 kg
4471001008
   100 80 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm 1 76,50 kg
4471002000
 1) 100 65 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm 2 78,20 kg
4471002008
   100 80 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm 2 82,50 kg
4471003000
 1) 100 65 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm 3 84,90 kg
4471003008
   100 80 16 bar 10|16 Typ E3 555 mm 278 mm 365 mm 345 mm 3 81,00 kg
4471500000
 1) 150 65 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm - 117,00 kg
4471500008
   150 80 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm - 117,00 kg
4471501000
 1) 150 65 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm 1 128,50 kg
4471501008
   150 80 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm 1 129,00 kg
4471502000
 1) 150 65 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm 2 131,20 kg
4471502008
   150 80 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm 2 132,00 kg
4471503000
 1) 150 65 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm 3 141,00 kg
4471503008
   150 80 16 bar 10|16 Typ E3 625 mm 313 mm 415 mm 435 mm 3 121,00 kg
4472000000
 1) 200 65 10 bar 10 Typ E3 695 mm 348 mm 465 mm 540 mm - 189,00 kg
4472000008
   200 80 10 bar 10 Typ E3 695 mm 348 mm 465 mm 540 mm - 189,00 kg
4472001000
 1) 200 65 10 bar 10 Typ E3 695 mm 349 mm 465 mm 540 mm 1 210,00 kg
4472001008
   200 80 10 bar 10 Typ E3 695 mm 348 mm 465 mm 540 mm 1 210,00 kg
4472002000
 1) 200 65 10 bar 10 Typ E3 695 mm 348 mm 465 mm 540 mm 2 222,00 kg
4472002008
   200 80 10 bar 10 Typ E3 695 mm 348 mm 465 mm 540 mm 2 222,00 kg
4472003000
 1) 200 65 10 bar 10 Typ E3 695 mm 348 mm 465 mm 540 mm 3 238,00 kg
4472003008
   200 80 10 bar 10 Typ E3 695 mm 348 mm 465 mm 540 mm 3 225,00 kg
4472010000
 1) 200 65 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm - 189,00 kg
4472010008
   200 80 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm - 189,00 kg
4472011000
 1) 200 65 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm 1 210,00 kg
4472011008
   200 80 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm 1 210,00 kg
4472012000
 1) 200 65 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm 2 222,00 kg
4472012008
   200 80 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm 2 222,00 kg
4472013000
 1) 200 65 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm 3 238,00 kg
4472013008
   200 80 16 bar 16 Typ E3 695 mm 348 mm 465 mm 540 mm 3 230,00 kg
Wish List
1)
Connecting flange DN 65 (hole circle: 140 mm / 4-hole)

Female thread 3/4" at body, for manometer, ball valve, etc. - on request

Version for buried installation on request.

Suitable construction tube for combi valves (Order.-Nr. 440 000 15000) on request.
