- Connecting flange DN 65 (hole circle: 140 mm / 4-hole)
442-02

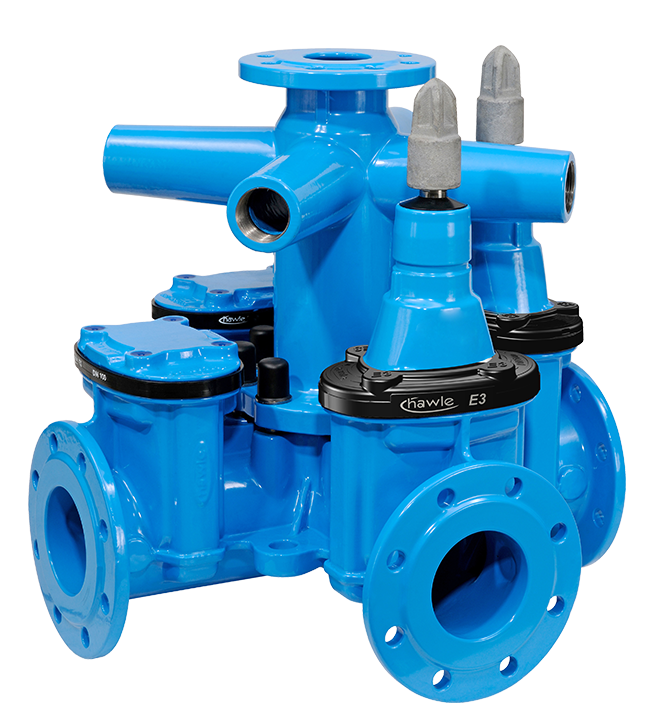

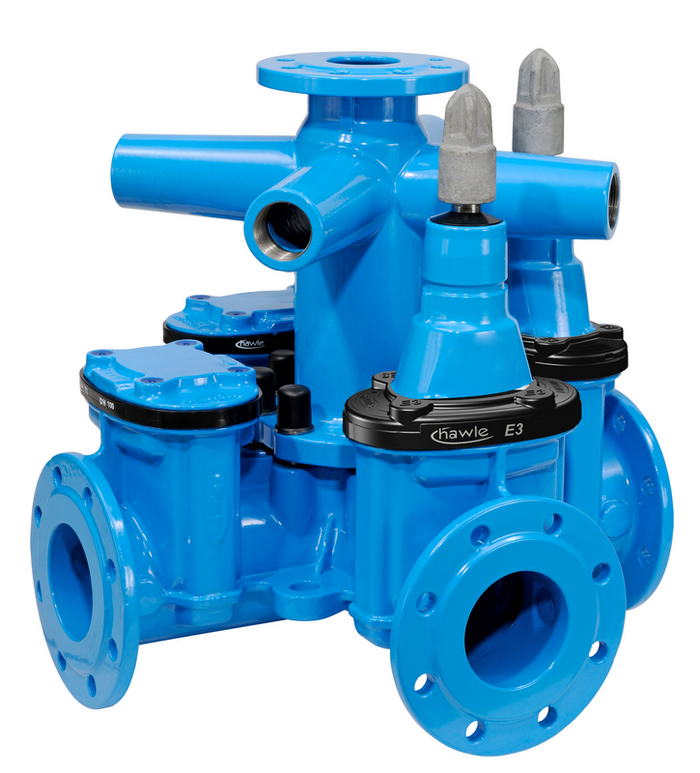

Combi-IV gate valve "WS/T" with double flanged taper
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water Gaskets: EPDM acc. to KTW-BVWGL for water E3-edge protection ring: PE |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Combi-IV gate valve with flanges at all ends and double flanged taper. For the installation of valve junctions with up to 4 gate valves in confined space. The vertical outlet at the double flanged taper serves the purpose of integrating hydrants or air valve sets, the horizontal female thread outlets can be used to connect service lines.
The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.
Delivered with installed square end cap for manhole installation. Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles on request.
Flange dimensions acc. to EN 1092-2
|
Order Nr.
|
*) |
DN |
DN1 |
PN |
Type / Outlet |
Female thread outlets |
L |
B |
H1 |
Numbers of gate valves |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4421001640
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 1 | 113,00 kg | |||
|
4421001650
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 1 | 113,00 kg | |||
|
4421001840
|
100 | 80 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 1 | 114,00 kg | ||||
|
4421001850
|
100 | 80 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 1 | 114,00 kg | ||||
|
4421002640
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 2 | 101,00 kg | |||
|
4421002650
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 2 | 117,00 kg | |||
|
4421002840
|
100 | 80 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 2 | 118,00 kg | ||||
|
4421002850
|
100 | 80 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 2 | 118,00 kg | ||||
|
4421003640
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 3 | 112,00 kg | |||
|
4421003650
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 3 | 121,00 kg | |||
|
4421003840
|
100 | 80 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 3 | 122,00 kg | ||||
|
4421003850
|
100 | 80 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 3 | 122,00 kg | ||||
|
4421004640
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 4 | 115,00 kg | |||
|
4421004650
|
1) | 100 | 65 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 4 | 110,00 kg | |||
|
4421004840
|
100 | 80 | 10|16 | Typ E3 | 1 1/4" | 555 mm | 365 mm | 345 mm | 4 | 125,00 kg | ||||
|
4421004850
|
100 | 80 | 10|16 | Typ E3 | 1 1/2" | 555 mm | 365 mm | 345 mm | 4 | 125,00 kg | ||||
|
4421501640
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 1 | 148,00 kg | |||
|
4421501650
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 1 | 164,00 kg | |||
|
4421501840
|
150 | 80 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 1 | 165,00 kg | ||||
|
4421501850
|
150 | 80 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 1 | 165,00 kg | ||||
|
4421502640
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 2 | 174,00 kg | |||
|
4421502650
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 2 | 174,00 kg | |||
|
4421502840
|
150 | 80 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 2 | 175,00 kg | ||||
|
4421502850
|
150 | 80 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 2 | 175,00 kg | ||||
|
4421503640
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 3 | 183,00 kg | |||
|
4421503650
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 3 | 169,00 kg | |||
|
4421503840
|
150 | 80 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 3 | 184,00 kg | ||||
|
4421503850
|
150 | 80 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 3 | 184,00 kg | ||||
|
4421504640
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 4 | 185,00 kg | |||
|
4421504650
|
1) | 150 | 65 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 4 | 185,00 kg | |||
|
4421504840
|
150 | 80 | 10|16 | Typ E3 | 1 1/4" | 625 mm | 415 mm | 435 mm | 4 | 186,00 kg | ||||
|
4421504850
|
150 | 80 | 10|16 | Typ E3 | 1 1/2" | 625 mm | 415 mm | 435 mm | 4 | 186,00 kg | ||||
|
4422001640
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 1 | 225,00 kg | |||
|
4422001650
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 1 | 225,00 kg | |||
|
4422001840
|
200 | 80 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 1 | 226,00 kg | ||||
|
4422001850
|
200 | 80 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 1 | 226,00 kg | ||||
|
4422002640
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 2 | 238,00 kg | |||
|
4422002650
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 2 | 224,50 kg | |||
|
4422002840
|
200 | 80 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 2 | 239,00 kg | ||||
|
4422002850
|
200 | 80 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 2 | 239,00 kg | ||||
|
4422003640
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 3 | 252,00 kg | |||
|
4422003650
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 3 | 252,00 kg | |||
|
4422003840
|
200 | 80 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 3 | 253,00 kg | ||||
|
4422003850
|
200 | 80 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 3 | 253,00 kg | ||||
|
4422004640
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 4 | 254,00 kg | |||
|
4422004650
|
1) | 200 | 65 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 4 | 254,00 kg | |||
|
4422004840
|
200 | 80 | 10 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 4 | 266,00 kg | ||||
|
4422004850
|
200 | 80 | 10 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 4 | 266,00 kg | ||||
|
4422011640
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 1 | 225,00 kg | |||
|
4422011650
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 1 | 225,00 kg | |||
|
4422011840
|
200 | 80 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 1 | 226,00 kg | ||||
|
4422011850
|
200 | 80 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 1 | 226,00 kg | ||||
|
4422012640
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 2 | 238,00 kg | |||
|
4422012650
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 2 | 224,50 kg | |||
|
4422012840
|
200 | 80 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 2 | 239,00 kg | ||||
|
4422012850
|
200 | 80 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 2 | 239,00 kg | ||||
|
4422013640
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 3 | 252,00 kg | |||
|
4422013650
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 3 | 252,00 kg | |||
|
4422013840
|
200 | 80 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 3 | 253,00 kg | ||||
|
4422013850
|
200 | 80 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 3 | 253,00 kg | ||||
|
4422014640
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 4 | 254,00 kg | |||
|
4422014650
|
1) | 200 | 65 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 4 | 254,00 kg | |||
|
4422014840
|
200 | 80 | 16 | Typ E3 | 1 1/4" | 695 mm | 465 mm | 540 mm | 4 | 266,00 kg | ||||
|
4422014850
|
200 | 80 | 16 | Typ E3 | 1 1/2" | 695 mm | 465 mm | 540 mm | 4 | 266,00 kg |
-
Female thread 3/4" at body, for manometer, ball valve, etc. - on request
-
Version for buried installation on request.
|
Operating instructions
|
|---|
| Operating and maintenance instructions - Hawle - E2, E3 gate valve |
|
Article Nr.
|
Product description |
|---|---|
| 204-07 | Multiple base plate and surface box for Combi-III and Combi-IV gate valves "E2" |
| 212-01 | Surface box for Hawle gate valves Combi-III and Combi-IV |
| 540-00 | EU-fitting (flanged socket) - BAIO® system |
| 900-00 | Rigid extension spindle for gate valve |
| 950-00 | Telescopic extension spindle |
| 952-00 | Telescopic extension spindle of stainless steel |
