442-01

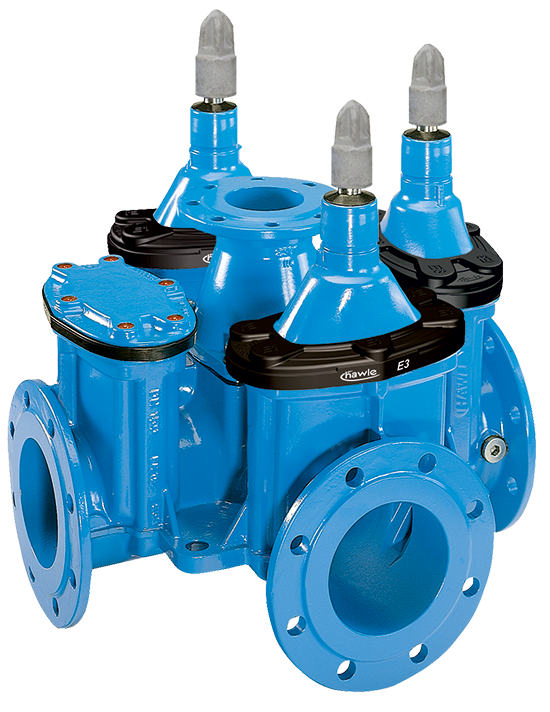

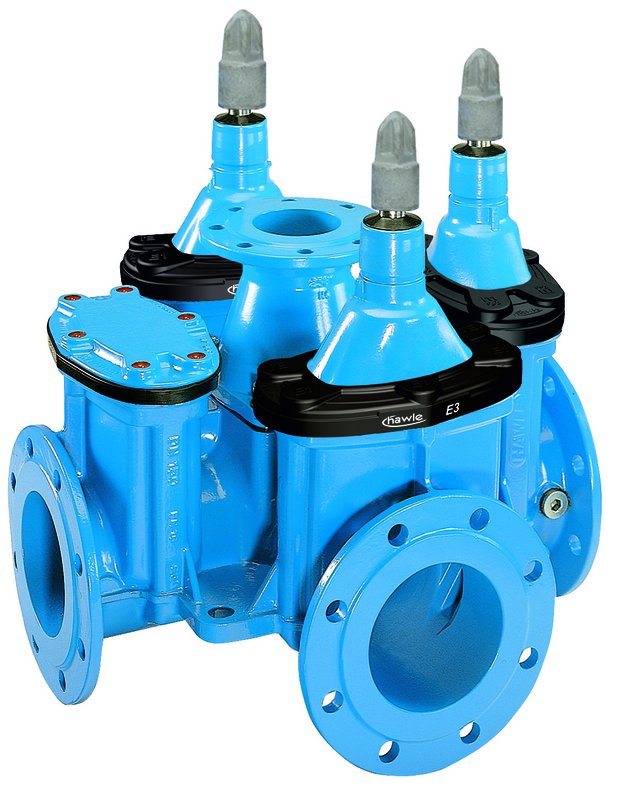

Combi-IV gate valve "WS" with vertical reducing flange

Combi-IV gate valve with flanges at all ends and vertical reducing flange. For the installation of valve junctions with up to 4 gate valves in confined space. The vertical flanged outlet serves the purpose of connecting hydrants or air valve sets.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.

Delivered with installed square end cap for manhole installation. Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles on request.

Flange dimensions: acc. to EN 1092-2

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL for water
Gaskets: EPDM acc. to KTW-BWGL for water
Max. operating Pressure: Potable water: 16 bar
Medium Water

Combi-IV gate valve with flanges at all ends and vertical reducing flange. For the installation of valve junctions with up to 4 gate valves in confined space. The vertical flanged outlet serves the purpose of connecting hydrants or air valve sets.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory preinstalled - Please specify clock position.

Delivered with installed square end cap for manhole installation. Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles on request.

Flange dimensions: acc. to EN 1092-2

Contacts
Wish List
Order Nr.
*)
DN
DN1
PN
Type / Outlet
L

B
H1
Numbers of
gate valves
 Medium Weight Specification Basket
4421001000
 1) 100 65 10|16 Typ E3 555 mm 365 mm 345 mm 1 108,00 kg
4421001008
   100 80 10|16 Typ E3 555 mm 365 mm 345 mm 1 108,00 kg
4421002000
 1) 100 65 10|16 Typ E3 555 mm 365 mm 345 mm 2 112,00 kg
4421002008
   100 80 10|16 Typ E3 555 mm 365 mm 345 mm 2 113,00 kg
4421003000
 1) 100 65 10|16 Typ E3 555 mm 365 mm 345 mm 3 116,00 kg
4421003008
   100 80 10|16 Typ E3 555 mm 365 mm 345 mm 3 117,00 kg
4421004000
 1) 100 65 10|16 Typ E3 555 mm 365 mm 345 mm 4 120,00 kg
4421004008
   100 80 10|16 Typ E3 555 mm 365 mm 345 mm 4 100,00 kg
4421501000
 1) 150 65 10|16 Typ E3 625 mm 415 mm 435 mm 1 159,50 kg
4421501008
   150 80 10|16 Typ E3 625 mm 415 mm 435 mm 1 160,00 kg
4421502000
 1) 150 65 10|16 Typ E3 625 mm 415 mm 435 mm 2 169,00 kg
4421502008
   150 80 10|16 Typ E3 625 mm 415 mm 435 mm 2 170,00 kg
4421503000
 1) 150 65 10|16 Typ E3 625 mm 415 mm 462 mm 3 178,00 kg
4421503008
   150 80 10|16 Typ E3 625 mm 415 mm 435 mm 3 178,00 kg
4421504000
 1) 150 65 10|16 Typ E3 625 mm 415 mm 435 mm 4 180,00 kg
4421504008
   150 80 10|16 Typ E3 625 mm 415 mm 435 mm 4 181,00 kg
4422001000
 1) 200 65 10 Typ E3 695 mm 465 mm 540 mm 1 219,00 kg
4422001008
   200 80 10 Typ E3 695 mm 465 mm 540 mm 1 220,00 kg
4422002000
 1) 200 65 10 Typ E3 695 mm 465 mm 540 mm 2 233,00 kg
4422002008
   200 80 10 Typ E3 695 mm 465 mm 540 mm 2 234,00 kg
4422003000
 1) 200 65 10 Typ E3 695 mm 465 mm 540 mm 3 247,00 kg
4422003008
   200 80 10 Typ E3 695 mm 465 mm 540 mm 3 248,00 kg
4422004000
 1) 200 65 10 Typ E3 695 mm 465 mm 540 mm 4 260,00 kg
4422004008
   200 80 10 Typ E3 695 mm 465 mm 540 mm 4 261,00 kg
4422011000
 1) 200 65 16 Typ E3 695 mm 465 mm 540 mm 1 219,00 kg
4422011008
   200 80 16 Typ E3 695 mm 465 mm 540 mm 1 220,00 kg
4422012000
 1) 200 65 16 Typ E3 695 mm 465 mm 540 mm 2 233,00 kg
4422012008
   200 80 16 Typ E3 695 mm 465 mm 540 mm 2 234,00 kg
4422013000
 1) 200 65 16 Typ E3 695 mm 465 mm 540 mm 3 247,00 kg
4422013008
   200 80 16 Typ E3 695 mm 465 mm 540 mm 3 248,00 kg
4422014000
 1) 200 65 16 Typ E3 695 mm 465 mm 540 mm 4 260,00 kg
4422014008
   200 80 16 Typ E3 695 mm 465 mm 540 mm 4 261,00 kg
Wish List
1)
Connecting flange DN 65 (hole circle: 140 mm / 4-hole)

Female thread 3/4" at body, for manometer, ball valve, etc. - on request

Version for buried installation on request.

Suitable shuttering pipe for Combi fittings on request.
