Factory preinstalled BAIO® lip gasket(BLD®) for DCI pipes.
-
When PE or PVC pipes are connected, a surcharge for GKS gaskets must be considered. When PE pipes are connected, support liners are be used.
-
Article numbers and prices for Combi-IV with 1, 2, or 3 gate valves on request.
-
Version for manhole installation on request.
-
Suitable turning tool (Ord No. 855 800 0010) on request.
439-00

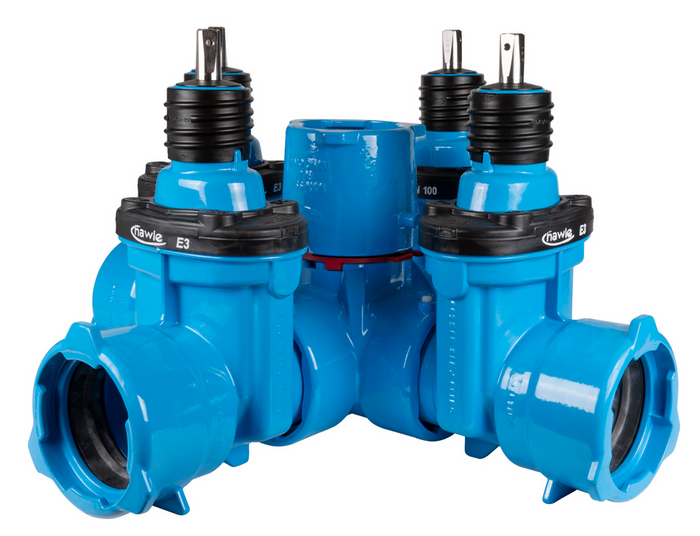

BAIO®-Combi IV gate valve
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge nut: brass Wedge: GJS-400, EPDM inside and outside acc. to KTW-BWGL für Wasser Gaskets: EPDM for potable water |
|---|---|
| Max. operating Pressure: | 16 bar |
| Medium | Water |
The BAIO-Combi IV is suitable for installations of gate valve cross sections in narrow spaces. Due to the compact design the cost reductions effect in material, transportation, labour and warehouse.
Every job side has different requirements. It is possible to prefabricate the BAIO Combi IV to fulfil these needs.
Horizontal outlets: The horizontal outlets are equipped with four Hawle E3-type gate valves (acc. to EN 1074-1).
Vertical outlet: This upper outlet can be equipped either with a BAIO socket piece DN 80 or a flanged piece DN 100 prefabricated. This allows to instal either an air release valve or a hydrant to the BAIO Combi IV.
The centrepiece is made of ductil iron, epoxy powder coated. The lock pins are made of POM.
|
Order Nr.
|
DN |
PN |
Type / Outlet |
L |
Vertical outlet |
L1 |
B |
B3 |
H |
H1 |
Square of spindle |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4391004000
|
100 | 16 | Typ E3 | 714 mm | 414 mm | 714 mm | 293 mm | 431 mm | 345 mm | 19,3 mm | 100,50 kg | ||||
|
4391004100
|
100 | 16 | Typ E3 | 714 mm | BAIO DN 80 | 414 mm | 714 mm | 293 mm | 431 mm | 345 mm | 19,3 mm | 106,50 kg | |||
|
4391004600
|
100 | 16 | Typ E3 | 714 mm | Flange DN 100 | 414 mm | 714 mm | 293 mm | 431 mm | 345 mm | 19,3 mm | 106,50 kg | |||
|
4391504000
|
150 | 16 | Typ E3 | 792 mm | 454 mm | 792 mm | 321 mm | 541 mm | 435 mm | 19,3 mm | 163,00 kg | ||||
|
4391504100
|
150 | 16 | Typ E3 | 792 mm | BAIO DN 80 | 454 mm | 792 mm | 321 mm | 541 mm | 435 mm | 19,3 mm | 169,00 kg | |||
|
4391504600
|
150 | 16 | Typ E3 | 792 mm | Flange DN 100 | 454 mm | 792 mm | 321 mm | 541 mm | 435 mm | 19,3 mm | 169,00 kg | |||
|
4392004000
|
200 | 16 | Typ E3 | 901 mm | 536 mm | 901 mm | 379 mm | 676 mm | 540 mm | 24,3 mm | 258,00 kg | ||||
|
4392004100
|
200 | 16 | Typ E3 | 901 mm | BAIO DN 80 | 536 mm | 901 mm | 379 mm | 676 mm | 540 mm | 24,3 mm | 264,00 kg | |||
|
4392004600
|
200 | 16 | Typ E3 | 901 mm | Flange DN 100 | 536 mm | 901 mm | 379 mm | 676 mm | 540 mm | 24,3 mm | 264,00 kg |
