438-00

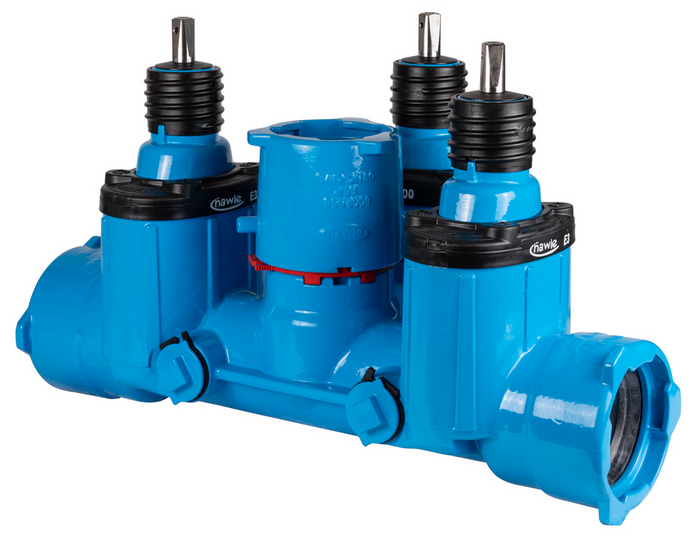

Combi III gate valve "E2" - BAIO® system

Combi III gate valve with BAIO® double function sockets at all ends for the restraint connection with BAIO® spigot ends and for connecting DCI, steel, PE and PVC pipes.

For the installation of valve junctions with a maximum of 3 gate valves in confined space.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory mounted - Please specify clock position.

Gaskets:
DCI pipes: BLD® gasket
PE/PVC pipes: GKS gasket (please specify clock position for the factory installation of the GKS gasket)

Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles. Square end cap for manhole installation on request.

Optionally available with vertical BAIO® socket / vertical flange for the connection of hydrants or air valve sets.

Optionally available with horizontal ZAK® outlets or female thread outlets at the body.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge nut: brass
Wedge: GJS-400, EPDM inside and outside for potable water
Gaskets: EPDM acc. to KTW-BWGL for water
Max. operating Pressure: Potable water: 16 bar
Medium Water

Combi III gate valve with BAIO® double function sockets at all ends for the restraint connection with BAIO® spigot ends and for connecting DCI, steel, PE and PVC pipes.

For the installation of valve junctions with a maximum of 3 gate valves in confined space.

The compact design affords major savings in material, labour, transport, and storage costs. If no shut-off is required at one or more outlets, a blind cover can be factory mounted - Please specify clock position.

Gaskets:
DCI pipes: BLD® gasket
PE/PVC pipes: GKS gasket (please specify clock position for the factory installation of the GKS gasket)

Delivered with round thread adaptor for the pinless fixing of Hawle extension spindles. Square end cap for manhole installation on request.

Optionally available with vertical BAIO® socket / vertical flange for the connection of hydrants or air valve sets.

Optionally available with horizontal ZAK® outlets or female thread outlets at the body.

Contacts
Wish List
Order Nr.

DN
Type / Outlet
Vertical outlet
Upper outlet
L

L1
B
B3
H
H1
Square of spindle
Numbers of
gate valves
 Medium Weight Specification Basket
4381003000
 100 Typ E3 -   691 mm 365 mm 451,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 84,50 kg
4381003046
 100 Typ E3 - 2 x ZAK 46 691 mm 365 mm 451,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 84,50 kg
4381003050
 100 Typ E3 - 2 x female thread 1 1/2" 691 mm 365 mm 451,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 84,50 kg
4381003100
 100 Typ E3 BAIO DN 80   691 mm 365 mm 451,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 87,60 kg
4381003146
 100 Typ E3 BAIO DN 80 2 x ZAK 46 691 mm 365 mm 451,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 87,60 kg
4381003150
 100 Typ E3 BAIO DN 80 2 x female thread 1 1/2" 691 mm 365 mm 451,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 87,60 kg
4381003600
 100 Typ E3 Flange DN 100   691 mm 365 mm 455,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 89,00 kg
4381003646
 100 Typ E3 Flange DN 100 2 x ZAK 46 691 mm 365 mm 455,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 89,00 kg
4381003650
 100 Typ E3 Flange DN 100 2 x female thread 1 1/2" 691 mm 365 mm 455,5 mm 258 mm 431 mm 345 mm 19,3 mm 3 89,00 kg
4381253000
 125 Typ E3     763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 110,00 kg
4381253046
 125 Typ E3   2 x ZAK 46 763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 110,00 kg
4381253050
 125 Typ E3   2 x female thread 1 1/2" 763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 110,00 kg
4381253100
 125 Typ E3 BAIO DN 80   763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 137,00 kg
4381253146
 125 Typ E3 BAIO DN 80 2 x ZAK 46 763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 137,00 kg
4381253150
 125 Typ E3 BAIO DN 80 2 x female thread 1 1/2" 763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 137,00 kg
4381253600
 125 Typ E3 Flange DN 100   763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 139,00 kg
4381253646
 125 Typ E3 Flange DN 100 2 x ZAK 46 763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 139,00 kg
4381253650
 125 Typ E3 Flange DN 100 2 x female thread 1 1/2" 763 mm 415 mm 522,5 mm 293 mm 518 mm 420 mm 19,3 mm 3 139,00 kg
4381503000
 150 Typ E3 -   777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 133,00 kg
4381503046
 150 Typ E3 - 2 x ZAK 46 777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 133,00 kg
4381503050
 150 Typ E3 - 2 x female thread 1 1/2" 777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 133,00 kg
4381503100
 150 Typ E3 BAIO DN 80   777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 142,00 kg
4381503146
 150 Typ E3 BAIO DN 80 2 x ZAK 46 777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 142,00 kg
4381503150
 150 Typ E3 BAIO DN 80 2 x female thread 1 1/2" 777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 142,00 kg
4381503600
 150 Typ E3 Flange DN 100   777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 143,00 kg
4381503646
 150 Typ E3 Flange DN 100 2 x ZAK 46 777 mm 451 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 143,00 kg
4381503650
 150 Typ E3 Flange DN 100 2 x female thread 1 1/2" 777 mm 415 mm 533,5 mm 293 mm 541 mm 435 mm 19,3 mm 3 143,00 kg
4382003000
 200 Typ E3 -   875 mm 465 mm 615,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 225,00 kg
4382003046
 200 Typ E3 - 2 x ZAK 46 875 mm 465 mm 615,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 225,00 kg
4382003050
 200 Typ E3 - 2 x female thread 1 1/2" 875 mm 465 mm 615,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 225,00 kg
4382003100
 200 Typ E3 BAIO DN 80   875 mm 465 mm 615,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 232,00 kg
4382003146
 200 Typ E3 BAIO DN 80 2 x ZAK 46 875 mm 465 mm 615,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 230,00 kg
4382003600
 200 Typ E3 Flange DN 100   875 mm 465 mm 615,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 232,00 kg
4382003646
 200 Typ E3 Flange DN 100 2 x ZAK 46 875 mm 465 mm 615,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 232,00 kg
4382003650
 200 Typ E3 Flange DN 100 2 x female thread 1 1/2" 875 mm 465 mm 616,5 mm 330 mm 676 mm 540 mm 24,3 mm 3 232,00 kg
Wish List

Factory preinstalled BAIO® lip gasket (BLD®) for DCI pipes

For plastic pipe installation, please mention on order from GKS gasket

Product numbers for Combi-III with 1 or 2 valves on request

When connecting PE pipes a support liner must be used.

Version for manhole installation on request.

Suitable formwork pipe for Combi valves (Ord. No. 440 000 1500) on request. Suitable turning tool (Ord No. 855 800 0010) on request.
