392-00

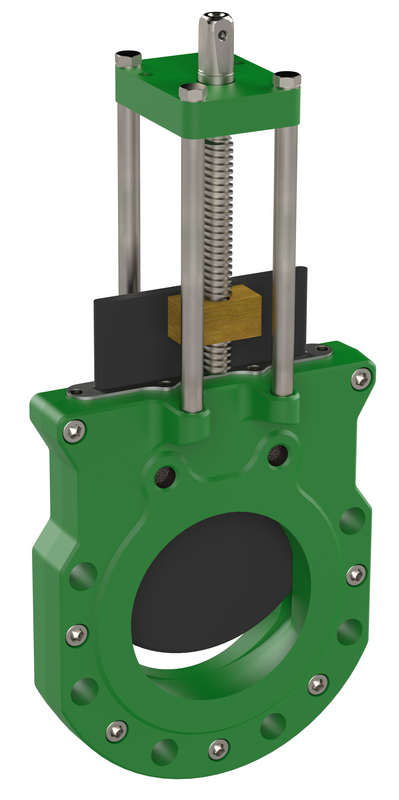

Knife gate valve HaPUR® with PUR-coated shut-off blade

The resilient-seated knife gate valve HaPUR® (Ord. No. 392-00) with straight-through bore has been conceived for municipal sewage water disposal and can be used both in plants and in manholes. The particularly smooth-running actuation of the HaPUR® knife gate valve can be effected via handwheel, shut-off key, extension set, or electric/pneumatic actuator.

The gate valve can be installed both between two flanges, and at the end of a pipeline. Due to the hexagonal recesses for nuts, the gate valve can also be used later as an end valve, for example, in case of pipe rehabilitation. The polyurethane-coated shut-off blade of the knife gate valve seals directly at the body. When worn, the sealing package can be exchanged without dismantling the gate valve.

The completely polyurethane-coated shut-off blade is highly resistant against corrosion. Moreover, the shut-off blade is UV-resistant, cut-resistant, wear-resistant and break-proof.

Face-to-face dimension:
Standard series 20 acc. to DIN EN 558-1

Flange mating dimensions: acc. To EN 1092-2

read more reduce
Material: Body: GJS 400-15 Hawle epoxy powder coated
Spindle: stainless steel
Spindle nut: red brass
Shut-off blade: S235 PUR-coated
Gaskets: NBR
Sliding disk: POM
Max. operating Pressure: 10 bar
Medium Sewage

The resilient-seated knife gate valve HaPUR® (Ord. No. 392-00) with straight-through bore has been conceived for municipal sewage water disposal and can be used both in plants and in manholes. The particularly smooth-running actuation of the HaPUR® knife gate valve can be effected via handwheel, shut-off key, extension set, or electric/pneumatic actuator.

The gate valve can be installed both between two flanges, and at the end of a pipeline. Due to the hexagonal recesses for nuts, the gate valve can also be used later as an end valve, for example, in case of pipe rehabilitation. The polyurethane-coated shut-off blade of the knife gate valve seals directly at the body. When worn, the sealing package can be exchanged without dismantling the gate valve.

The completely polyurethane-coated shut-off blade is highly resistant against corrosion. Moreover, the shut-off blade is UV-resistant, cut-resistant, wear-resistant and break-proof.

Face-to-face dimension:
Standard series 20 acc. to DIN EN 558-1

Flange mating dimensions: acc. To EN 1092-2

Contacts
Wish List
Order Nr.

DN
PN
d 1
Length
B
C
H
H1
Square of spindle
 Medium Weight Specification 3D Basket
3920800000
 80 10 24 mm 46 mm 190 mm 38 mm 420 mm 320 mm 17,3 mm 11,80 kg
3921000000
 100 10 24 mm 52 mm 205 mm 38 mm 460 mm 350 mm 17,3 mm 14,55 kg
3921500000
 150 10 25 mm 56 mm 260 mm 38 mm 585 mm 440 mm 19,3 mm 24,50 kg
3922000000
 200 10 30 mm 60 mm 322 mm 38 mm 711 mm 540 mm 19,3 mm 35,50 kg
Wish List

Suitable handwheels see Ord. No.: 780-00

For selecting the suitable handwheel, the dimension of the square of spindle must be observed.
