372-01

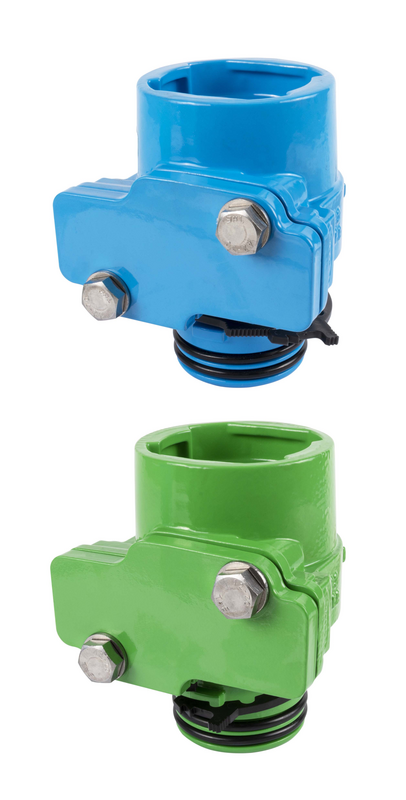

Shut-off adaptor with ZAK® outlets

The shut-off adaptor with auxiliary shut-off device and ZAK® outlets is to be used in combination with pipe saddles or tapping bridges.

The lower ZAK® spigot end is to be used for installation in drilling saddles with ZAK® socket (e.g. HAKU pipe saddle, model no. 525-01, or universal pipe drilling saddle, model no. 352-00).

The upper ZAK® socket outlet serves to establish a restraint connection with valves and fittings with ZAK® spigot ends.

In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system with integrated auxiliary shut-off device permits the easy under pressure drilling of the main line. On drilling, the outlet area is temporarily shut off via a shut-off blade / saddle blade (model no. 840-00) after pulling out the drilling spindle. The saddle blade is available as accessory (see table). After drilling the valves and fittings can be integrated.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Max. operating Pressure: Sewage water: 16 bar
Potable water: 16 bar
Gas: 5 bar
Medium Water / Gas / Sewage

The shut-off adaptor with auxiliary shut-off device and ZAK® outlets is to be used in combination with pipe saddles or tapping bridges.

The lower ZAK® spigot end is to be used for installation in drilling saddles with ZAK® socket (e.g. HAKU pipe saddle, model no. 525-01, or universal pipe drilling saddle, model no. 352-00).

The upper ZAK® socket outlet serves to establish a restraint connection with valves and fittings with ZAK® spigot ends.

In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system with integrated auxiliary shut-off device permits the easy under pressure drilling of the main line. On drilling, the outlet area is temporarily shut off via a shut-off blade / saddle blade (model no. 840-00) after pulling out the drilling spindle. The saddle blade is available as accessory (see table). After drilling the valves and fittings can be integrated.

Contacts
Wish List
Order Nr.
*)
Colour
Description
L

B
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
3721460000
 1) blue   126 mm 103 mm 114 mm 28 mm ZAK 46 2,20 kg
3721690000
 2) blue   147 mm 128 mm 125 mm 50 mm ZAK 69 3,17 kg
3721690020
 2) green   147 mm 128 mm 125 mm 50 mm ZAK 69 3,17 kg
8400005063
     shut-off blade 1 1/2" - 2" / ZAK 46           0,25 kg
8400006300
     shut-off blade 2 1/4" / Shut off adapter ZAK 69           0,20 kg
Wish List
1)
Use saddle blade model no. 840.000.5063
2)
Use saddle blade model no. 840.000.6300

Product numbers and prices for version ZAK 46 on request

Article Nr.
Product description
830-00 Pipe drilling device "Hawlomat"
840-00 Shut-off blade (saddle blade)
