- 1)
- Use saddle blade model no. 8400003240
- 2)
- Use shut-off blade model no. 8400005063
371-01

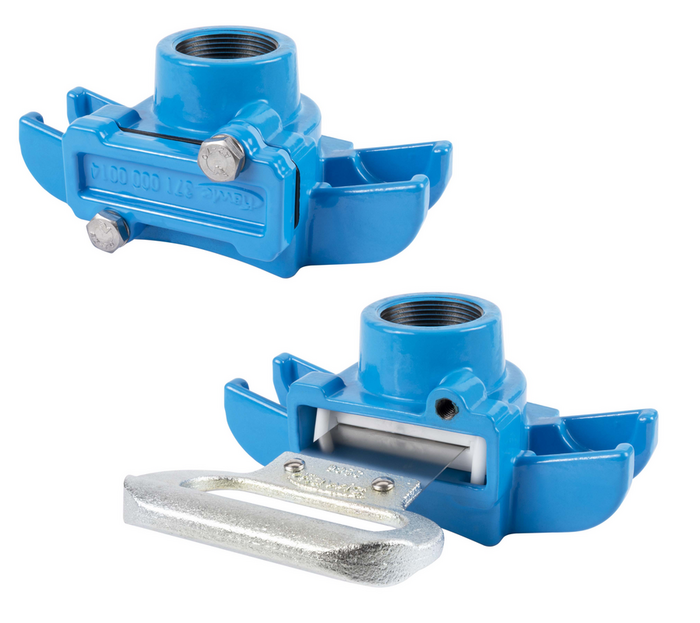

Universal pipe saddle with female thread and integrated shut-off function
| Max. operating Pressure: | Potable water: 16 bar |
|---|---|
| Medium | Water |
Universal pipe saddles with female thread outlet with integrated shut-off device are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500.
Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 309-00, 310-00, 311-00, 311-01, 311-02, 311-03) of the appropriate nominal width.
In combination with a drilling device (e.g. HAWLOMAT, model no. 830-00) the shut-off system with integrated shut-off device permits the easy under pressure drilling of the main line. On drilling, the outlet area is temporarily shut off via a shut-off blade / saddle blade (model no. 840-00) after pulling out the drilling spindle. The saddle blade is available as accessory. After drilling, valves and fittings can be connected.
|
Order Nr.
|
*) |
Operating pressure max. |
L |
B |
B1 |
H1 |
Borehole max. |
Type of pipe |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3710400000
|
1) | 16 bar | 200 mm | 105 mm | 85 mm | 90 mm | 34 mm | Cast iron|Steel|AC | IG 1 1/4" |
2,80 kg | |||
|
3710500000
|
2) | 16 bar | 200 mm | 105 mm | 85 mm | 90 mm | 38 mm | Cast iron|Steel|AC | female thread 1 1/2" | 2,90 kg | |||
|
3710630000
|
2) | 16 bar | 200 mm | 105 mm | 85 mm | 90 mm | 38 mm | Cast iron|Steel|AC | female thread 2" | 3,00 kg |
-
Product numbers and prices for version "D" (Hawlinger® 1 1 /2" with sealing surface) on request
|
Further information
|
|---|
| General instruction for Pipe drilling saddle |
|
Article Nr.
|
Product description |
|---|---|
| 309-00 | Stainless steal strap - adjustable |
| 310-00 | Hawle strap - fully vulcanized |
| 311-00 | Hawle strap - stainless steel |
| 311-02 | Hawle strap for AC pipes, width 90 mm |
| 311-03 | Hawle universal strap |
| 830-00 | Pipe drilling device "Hawlomat" |
| 840-00 | Shut-off blade (saddle blade) |
