371-00G

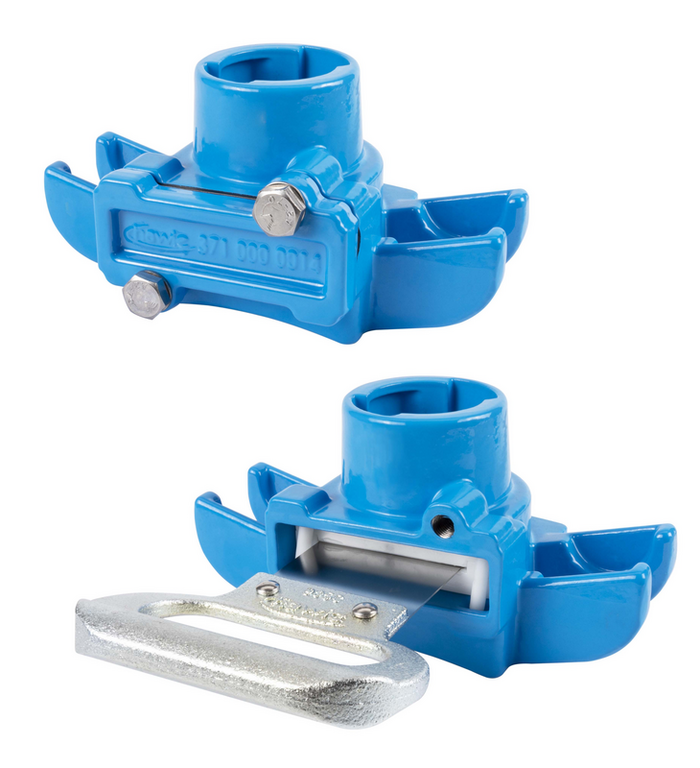

Universal pipe saddle with integrated shut-off function for gas

Universal pipe saddles with ZAK® socket outlet / female thread outlet with integrated shut-off device are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500.

Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 310-00G, 314-01) of the appropriate nominal width.

In combination with a drilling device the shut-off system with integrated shut-off device permits the easy under pressure drilling of the main line. On drilling, the outlet area is temporarily shut off via a shut-off blade / saddle blade (model no. 840-00) after pulling out the drilling spindle. The saddle blade is available as accessory. After drilling, valves and fittings can be connected.

read more reduce
Material: GJS-400, Hawle epoxy powder coated
Max. operating Pressure: Gas: 5 bar
Medium Gas

Universal pipe saddles with ZAK® socket outlet / female thread outlet with integrated shut-off device are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500.

Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 310-00G, 314-01) of the appropriate nominal width.

In combination with a drilling device the shut-off system with integrated shut-off device permits the easy under pressure drilling of the main line. On drilling, the outlet area is temporarily shut off via a shut-off blade / saddle blade (model no. 840-00) after pulling out the drilling spindle. The saddle blade is available as accessory. After drilling, valves and fittings can be connected.

Contacts
Wish List
Order Nr.
*)
L

Description
B
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
3711460005
 1) 200 mm   116 mm 98 mm 36 mm ZAK 46 2,90 kg
8400005063
     shut-off blade 1 1/2" - 2" / ZAK 46         0,25 kg
Wish List
1)
Use saddle blade model no. 8400003240.
