364-00

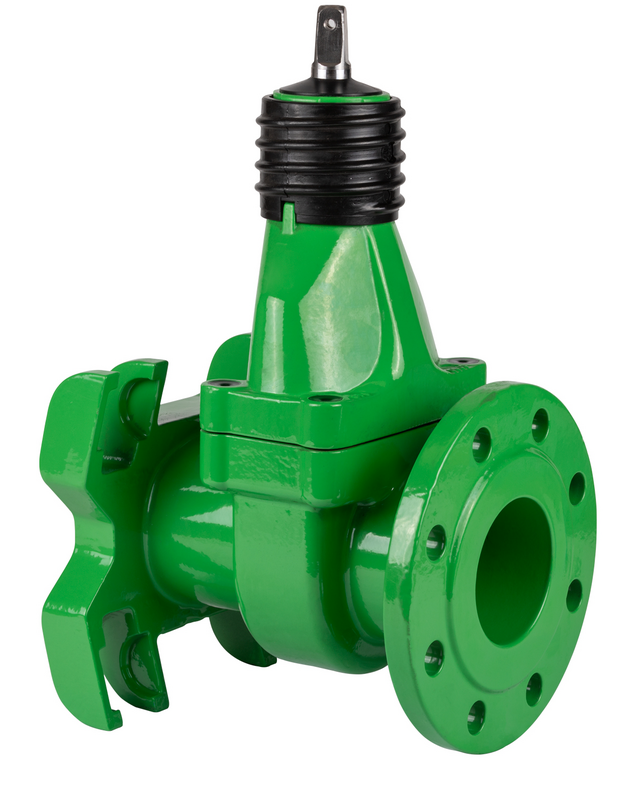

Double strap saddle and knife gate valve combination with flanged outlet

Double strap saddle and gate valve combinations with flanged outlet DN 80 are to be used for lateral drilling of DCI, steel, and AC pipes DN 150 - DN 500.

Adaptation to the main pipe is effected via two holding straps (model no. 309-00, 310-00 or model no. 311-00, 311-01, 311-02, 311-03) and saddle gasket (model no. 317-00) of the appropriate nominal width of the main pipe.

The reliable and tight shut-off function is ensured via a shut-off blade of hard-rolled stainless steel and an O-ring gasket package. The gasket package prevents solids from sticking to the spindle and, in case of repair, permits the exchange of the valve bonnet without taking the pressure line out of service.

Apart from actuation via handhweel or extension spindle also suitable for position indicator or electric actuator.

Max. bore diameter:
Pipe outside dia. DN 150: 70 mm
Pipe outside dia. DN 200-500: 75 mm

Flange dimensions: acc. to EN 1092-2

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated

Spindle, shut-off blade: stainless steel

O-ring gasket package: POM/NBR
Max. operating Pressure: Sewage water: 10 bar
Medium Sewage

Double strap saddle and gate valve combinations with flanged outlet DN 80 are to be used for lateral drilling of DCI, steel, and AC pipes DN 150 - DN 500.

Adaptation to the main pipe is effected via two holding straps (model no. 309-00, 310-00 or model no. 311-00, 311-01, 311-02, 311-03) and saddle gasket (model no. 317-00) of the appropriate nominal width of the main pipe.

The reliable and tight shut-off function is ensured via a shut-off blade of hard-rolled stainless steel and an O-ring gasket package. The gasket package prevents solids from sticking to the spindle and, in case of repair, permits the exchange of the valve bonnet without taking the pressure line out of service.

Apart from actuation via handhweel or extension spindle also suitable for position indicator or electric actuator.

Max. bore diameter:
Pipe outside dia. DN 150: 70 mm
Pipe outside dia. DN 200-500: 75 mm

Flange dimensions: acc. to EN 1092-2

Contacts
Wish List
Order Nr.
*)
DN
L

A
H
Square of spindle
 Medium Weight Specification Basket
3640800020
 1) 80 245 mm 200 mm 590 mm 14,8 mm 16,80 kg
Wish List
1)
Use saddle seal Order No. 317-00.

For selecting the suitable handwheel, the dimension of the square of spindle must be observed.
