- 1)
- Use saddle seal Order No. 317-00.
363-00

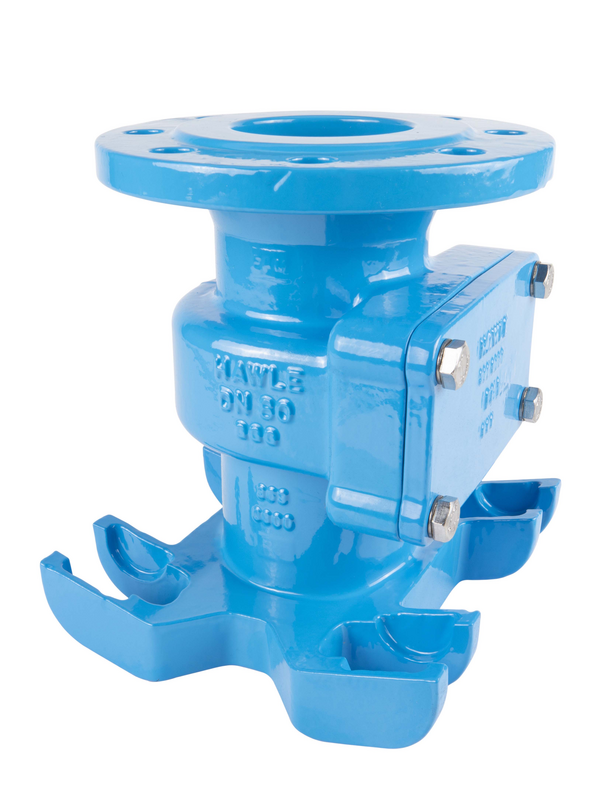

Double strap pipe saddle with flange and auxiliary shut-off device
| Material: | GJS-400, Hawle epoxy powder coated |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Potable water: 16 bar |
| Medium | Water / Sewage |
Double strap pipe saddles with flanged outlet DN 80 and auxiliary shut-off device are to be used for installation on DCI, steel, and AC pipes DN 150 - DN 500.
Adaptation to the main pipe is effected via two holding straps, each (model no. 309-00, 310-00 or model no. 311-00, 311-01, 311-02, 311-03), and a saddle gasket (model no. 317-00) of the appropriate nominal width of the main pipe.
In combination with a suitable drilling device the shut-off system with integrated auxiliary shut-off device permits the easy under pressure drilling of the main line.
On drilling, the outlet area is temporarily shut off via a shut-off blade / saddle blade (model no. 840-00) after pulling out the drilling spindle. The saddle blade is available as accessory (see table). After
drilling, valves and pipe fittings (e.g. hydrants or air valves) can be intergrated.
Max. bore diameter:
Pipe outside dia. DN 150: 70 mm
Pipe outside dia. DN 200-500: 75 mm
Flange mating dimensions: acc. to EN 1092-2
|
Order Nr.
|
*) |
Flange DN |
Description |
A |
B |
C |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|
|
3630800000
|
1) | 80 | 200 mm | 185 mm | 245 mm | 14,00 kg | ||||
|
8400008000
|
shut-off blade DN 80 | 0,45 kg |
|
Technical Documents
|
|---|
| declaration of conformity other fittings |
|
Article Nr.
|
Product description |
|---|---|
| 310-00 | Hawle strap - fully vulcanized |
| 311-00 | Hawle strap - stainless steel |
| 311-02 | Hawle strap for AC pipes, width 90 mm |
| 311-03 | Hawle universal strap |
| 317-00 | Saddle seal for double strap saddle with female thread 2 ½", 3" or flange DN 80 |
| 840-00 | Shut-off blade (saddle blade) |
