355-00

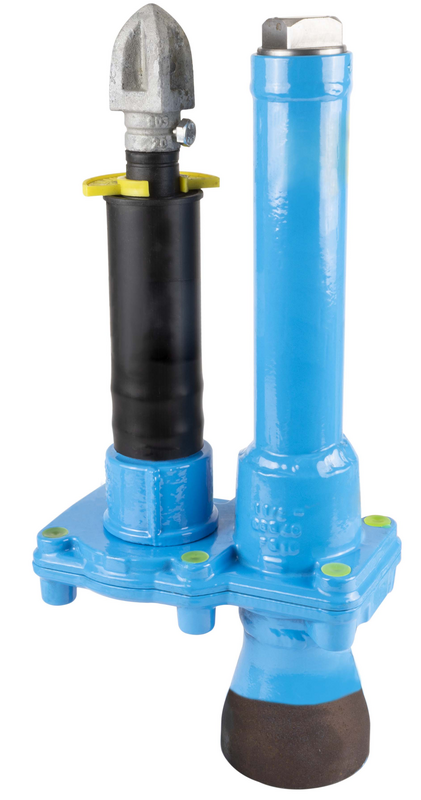

Shut-off saddle Hawlinger for gas blowing off
| Material: |
Body/Hawlinger: GJS-400, Hawle epoxy powder coated Spindle, shut-off device, shut-off blade: stainless steel Weld-on cap/blow-out pipe: steel Gaskets: NBR for gas |
|---|---|
| Max. operating Pressure: | Gas: 5 bar |
| Medium | Gas |
The Hawlinger for gas blowing-off, consisting of a steel blow-out pipe 1 1/2" and a safety plug with relief bore at the vertical outlet, a reduced weld-on cap (DN 80) and an extension spindle, can be used for welding onto steel pipes.
Shutting off is effected via a shut-off blade of stainless steel driven via slotted link gear. The shut-off device is moved in a housing at low wear in horizontal direction against fixed metal stops. For opening or closing of the outlet area only one half revolution (180°) is required.
The necessary length of the Hawlinger for gas blowing-off can be established by welding a steel pipe (DN 80) to the weld-on cap.
To facilitate operation, the relief plugs and the extension spindle are provided with the same operating square.
Suitable surface box: DIN 3582
|
Order Nr.
|
Female thread (IG) |
A |
B |
C |
D |
Heigth B min. |
Heigth C min. |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
3558000000
|
1" | 195 mm | 435 mm | 415 mm | 82 mm | 250 mm | 230 mm | 10,00 kg |
