352-02

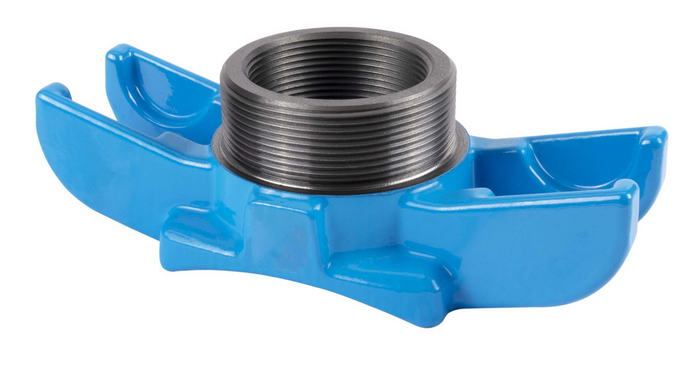

Universal pipe saddle for gas bladder setting device

Universal pipe saddles for bladder setting device equipment with female and male thread are to be used for installation on DCI and steel pipes DN 80 - DN 500.

Adaptation to the main pipe is effected via holding strap (model no. 310-01, 314-04) and special saddle gasket drilling diameter max. 56 mm (model no. 314-01) of the appropriate nominal width.

Please specify on order!
For design variants see table.

read more reduce
Material: GJS-400, Hawle epoxy powder coated
Max. operating Pressure: Gas: 5 bar
Medium Gas

Universal pipe saddles for bladder setting device equipment with female and male thread are to be used for installation on DCI and steel pipes DN 80 - DN 500.

Adaptation to the main pipe is effected via holding strap (model no. 310-01, 314-04) and special saddle gasket drilling diameter max. 56 mm (model no. 314-01) of the appropriate nominal width.

Please specify on order!
For design variants see table.

Contacts
Wish List

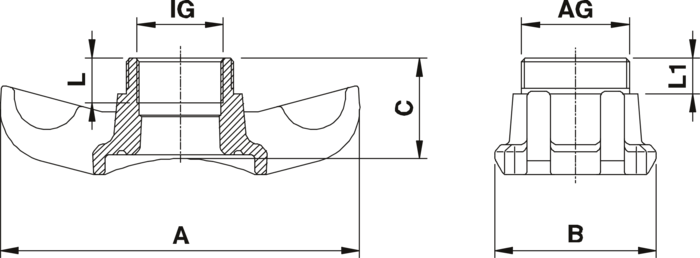

Order Nr.
*)
Female thread (IG)
Special model
male thread (AG)
L

L1
A
B
C
Borehole max.
 Medium Weight Specification Basket
3521630000
 1) 2"   2 1/2" 26 mm 20 mm 200 mm 90 mm 54 mm 52 mm 1,80 kg
3521631000
 1) 2" Manibs 2 1/2" 27 mm 24 mm 200 mm 90 mm 65 mm 52 mm 1,80 kg
3521632000
 1) 2" WAF 2 1/2" 26 mm 27 mm 200 mm 90 mm 65 mm 56 mm 1,70 kg
3521633000
 1) 2" Minden 2 1/2" 26 mm 23 mm 200 mm 90 mm 65 mm 56 mm 1,80 kg
3521633500
 2) 2" Minden 2 1/2" 26 mm 27 mm 200 mm 90 mm 65 mm 56 mm 2,20 kg
3521634000
 2) 2" NWS 2 1/2" 20 mm 25,5 mm 200 mm 90 mm 65 mm 56 mm 2,20 kg
3521635000
 1)   Hütz & Baumgarten 2 1/2" 26 mm 16 mm 200 mm 90 mm 54 mm 56 mm 1,80 kg
Wish List
1)
Without plug
2)
With plug
3)
The standard saddle seal supplied with the bracket can be used. No special saddle seal required.
