313-04

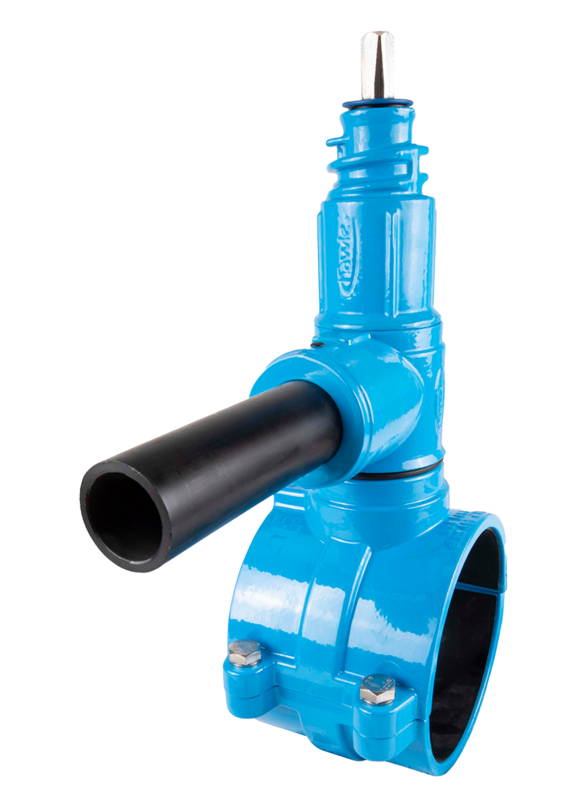

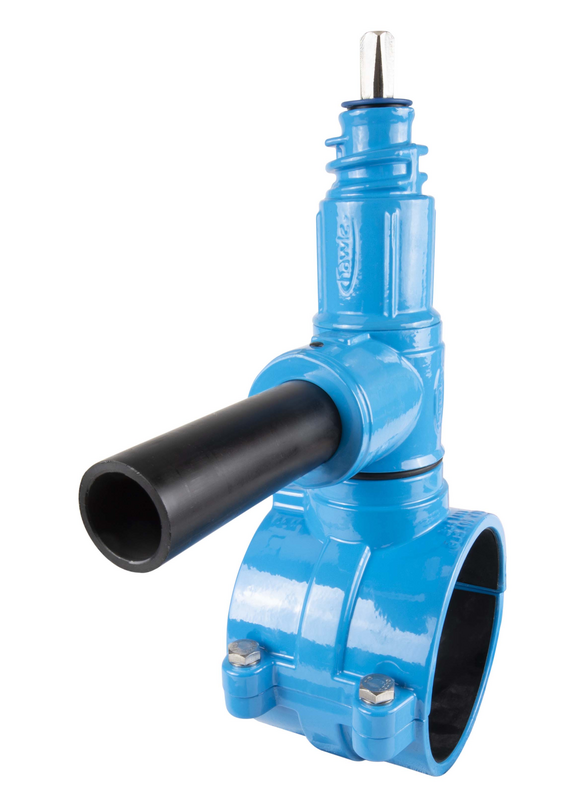

HAKU milling saddle for PE pipes with horizontal PE outlet

Hawle milling saddles for PE pipes are provided with integrated drilling tool and an operational shut-off facility. This permits the in-service drilling of PE pipelines.

To ensure proper drilling, the drilling tool is fed in at high speed until it almost touches the material. The drilling process proper is performed at low feed rate. Shut-off during operation is effected via a profile gasket immersed into a cylindrical sealing surface.

HAKU milling saddles are to be used for installation on PE pipes acc. to DIN 8074. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The horizontal PE stub (90° to pipe direction) can be used for installation of a push-fit fitting or for welding into PE pipelines via resistance welding or hot plate welding.

Range of application:
PE, SDR 11: d 63 - d 225
PE, SDR 17: d 63 - d 315
Drilling diameter: 25 mm

read more reduce
Material: Milling saddle: red brass, Hawle epoxy powder coated
HAKU pipe saddle: GJS-400, Hawle epoxy powder coated
Punch: brass
Outlet: PE 100, SDR 11
Max. operating Pressure: Potable water: 16 bar
Medium Water

Hawle milling saddles for PE pipes are provided with integrated drilling tool and an operational shut-off facility. This permits the in-service drilling of PE pipelines.

To ensure proper drilling, the drilling tool is fed in at high speed until it almost touches the material. The drilling process proper is performed at low feed rate. Shut-off during operation is effected via a profile gasket immersed into a cylindrical sealing surface.

HAKU milling saddles are to be used for installation on PE pipes acc. to DIN 8074. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The horizontal PE stub (90° to pipe direction) can be used for installation of a push-fit fitting or for welding into PE pipelines via resistance welding or hot plate welding.

Range of application:
PE, SDR 11: d 63 - d 225
PE, SDR 17: d 63 - d 315
Drilling diameter: 25 mm

Contacts
Wish List
Order Nr.

L

Description
H
Outlet O
D
 Medium Weight Specification Basket
3134063040
 262 mm   238 mm 40 mm 63 mm 5,60 kg
3134075040
 262 mm   242 mm 40 mm 75 mm 5,80 kg
3134090040
 262 mm   244 mm 40 mm 90 mm 6,70 kg
3134090050
 262 mm   244 mm 50 mm 90 mm 6,70 kg
3134110040
 262 mm   244 mm 40 mm 110 mm 7,10 kg
3134110050
 262 mm   244 mm 50 mm 110 mm 7,10 kg
3134125040
 262 mm   244 mm 40 mm 125 mm 7,30 kg
3134125050
 262 mm   244 mm 50 mm 125 mm 7,30 kg
3134140040
 262 mm   244 mm 40 mm 140 mm 8,30 kg
3134140050
 262 mm   244 mm 50 mm 140 mm 8,30 kg
3134160040
 262 mm   239 mm 40 mm 160 mm 9,00 kg
3134160050
 262 mm   239 mm 50 mm 160 mm 9,00 kg
3134180040
 262 mm   239 mm 40 mm 180 mm 11,20 kg
3134180050
 262 mm   239 mm 50 mm 180 mm 11,20 kg
3134225040
 262 mm   245 mm 40 mm 225 mm 13,00 kg
3134225050
 262 mm   245 mm 50 mm 225 mm 13,00 kg
3134280040
 262 mm   239 mm 40 mm 280 mm 16,70 kg
3134280050
 262 mm   239 mm 50 mm 280 mm 16,70 kg
3134315050
 262 mm   242 mm 50 mm 315 mm 19,00 kg
8700000000
   Surcharge for spindle bore       0,00 kg
Wish List

Version with outlet in pipe direction on request.
