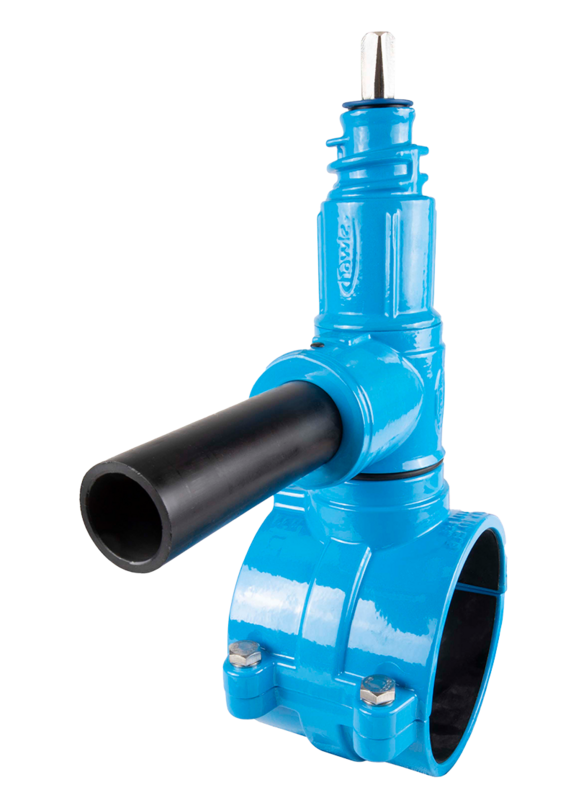

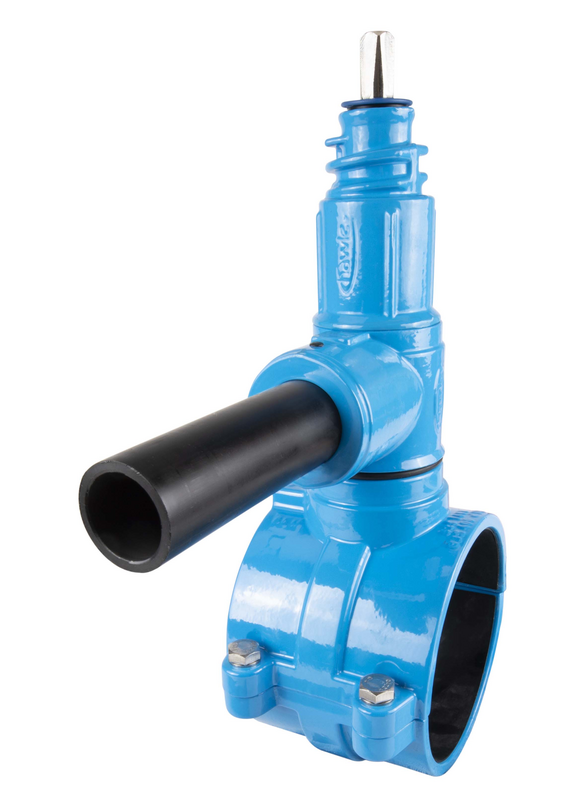

HAKU milling valve with horizontal PE fusion end

Hawle milling saddles are provided with integrated drilling tool and operational shut-off device. Therefore it is possible to drill pipes of PE and PVC also with the pipe being in service.
To ensure proper drilling, the drilling tool is fed in at high speed until it almost touches the material. The drilling process proper is performed at low feed rate. Shutting off during operation is effected via a profile gasket plunging into a cylindrical gasket surface.

HAKU milling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The horizontal PE end (90° to pipe direction) can be used for installation of a push-fit fitting or for welding into PE pipelines via resistance welding or butt welding.

Application range:
PE, SDR 11: d 63 - d 225
PE, SDR 17: d 63 - d 315
PVC, PN 10: d 63 - d 280
PVC, PN 16: d 63 - d 160

Drilling diameter: 35 mm

read more reduce
Material: Milling saddle: red brass, Hawle epoxy powder coated
HAKU pipe saddle: GJS-400, Hawle epoxy powder coated
Milling cutter: brass
Outlet: PE 100, SDR 11
Max. operating Pressure: Potable water: 16 bar
Medium Water

Hawle milling saddles are provided with integrated drilling tool and operational shut-off device. Therefore it is possible to drill pipes of PE and PVC also with the pipe being in service.
To ensure proper drilling, the drilling tool is fed in at high speed until it almost touches the material. The drilling process proper is performed at low feed rate. Shutting off during operation is effected via a profile gasket plunging into a cylindrical gasket surface.

HAKU milling saddles are to be used for installation on PE pipes and PVC pipes. The two saddle halves are exactly calibrated to the respective outside diameter. When connecting the saddle halves an inadmissible deformation of the pipe is prevented by metal stops.

The horizontal PE end (90° to pipe direction) can be used for installation of a push-fit fitting or for welding into PE pipelines via resistance welding or butt welding.

Application range:
PE, SDR 11: d 63 - d 225
PE, SDR 17: d 63 - d 315
PVC, PN 10: d 63 - d 280
PVC, PN 16: d 63 - d 160

Drilling diameter: 35 mm

Contacts
Wish List
Order Nr.

L

Description
D
H
Outlet O
 Medium Weight Specification Basket
3132063040
 262 mm   63 mm 238 mm 40 mm 5,60 kg
3132075040
 262 mm   75 mm 242 mm 40 mm 5,80 kg
3132090040
 262 mm   90 mm 244 mm 40 mm 6,70 kg
3132090050
 262 mm   90 mm 244 mm 50 mm 6,70 kg
3132110040
 262 mm   110 mm 244 mm 40 mm 7,10 kg
3132110050
 262 mm   110 mm 244 mm 50 mm 7,10 kg
3132125040
 262 mm   125 mm 244 mm 40 mm 7,30 kg
3132125050
 262 mm   125 mm 244 mm 50 mm 7,30 kg
3132140040
 262 mm   140 mm 244 mm 40 mm 8,30 kg
3132140050
 262 mm   140 mm 244 mm 50 mm 8,30 kg
3132160040
 262 mm   160 mm 239 mm 40 mm 9,00 kg
3132160050
 262 mm   160 mm 239 mm 50 mm 9,00 kg
3132180040
 262 mm   180 mm 239 mm 40 mm 11,20 kg
3132180050
 262 mm   180 mm 239 mm 50 mm 11,20 kg
3132225040
 262 mm   225 mm 245 mm 40 mm 13,00 kg
3132225050
 262 mm   225 mm 245 mm 50 mm 13,00 kg
3132280040
 262 mm   280 mm 239 mm 40 mm 16,70 kg
3132280050
 262 mm   280 mm 239 mm 50 mm 16,70 kg
3132315050
 262 mm   315 mm 242 mm 50 mm 19,00 kg
8700000000
   Surcharge for spindle bore       0,00 kg
Wish List

Version with outlet in pipe direction on request.
