- 1)
- Delivered with enclosed support liner (POM).
312-00

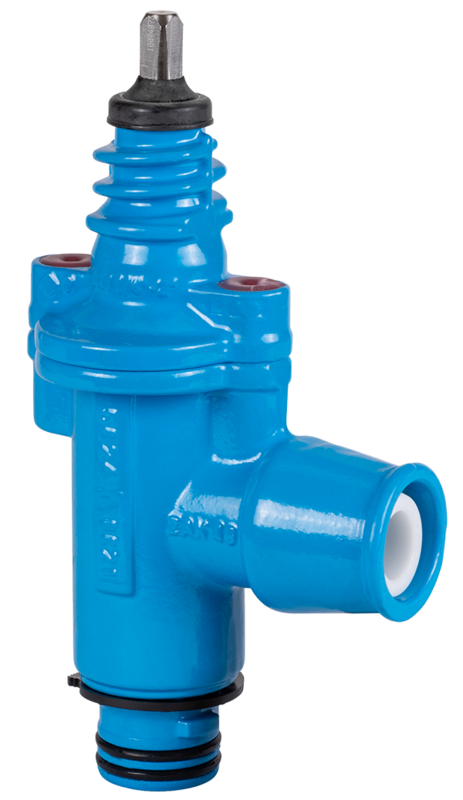

Angled service valve with ZAK® spigot end and push-fit socket
| Material: |
Body and bonnet: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge: brass, with cured on EPDM acc. to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Angled service valve, with one ZAK spigot end for the restraint connection with pipe saddles with ZAK socket, and with one restraint push-fit socket for the restraint connection with PE pipes PE 80, PE 100 and PE-X. With corundum grip ring model no. 695 also available for PVC rings.
Direct pipe installation into the valve. No adaptor required at the transition between the valve and the fitting.
When connecting PE pipes a support liner (model no. 590) must be used.
Spindle square: 12.3 mm
For underground pipeline construction and in distribution systems for drinking water supply (no application in installation).
|
Order Nr.
|
*) |
Operating pressure max. |
Description |
L |
B |
D |
H |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3129253400
|
1) | Potable water: 16 bar | 133 mm | 94 mm | 25 mm | 240 mm | ZAK 34 | 2,30 kg | ||||
|
3129323400
|
1) | Potable water: 16 bar | 139 mm | 94 mm | 32 mm | 240 mm | ZAK 34 | 2,60 kg | ||||
|
3129404600
|
1) | Potable water: 16 bar | 159 mm | 105 mm | 40 mm | 272 mm | ZAK 46 | 2,70 kg | ||||
|
3129504600
|
1) | Potable water: 16 bar | 173 mm | 105 mm | 50 mm | 286 mm | ZAK 46 | 4,00 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
-
Product numbers for use with PVC pipes on request.
-
When connecting PE pipes a support liner must be used.
