311-02

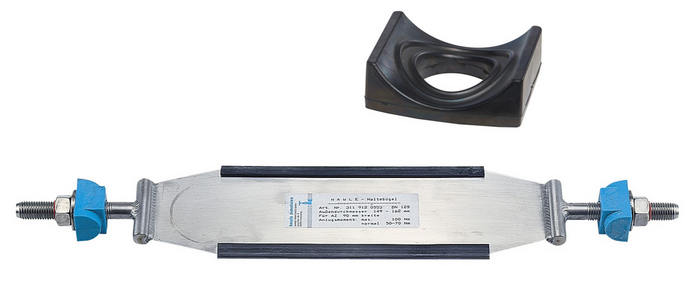

Hawle strap for AC pipes, width 90 mm

Hawle straps (model no. 311-02) are used for the reliable installation of pipe drilling saddles and valve saddles at AC pipes (see table).

The wide contact area of 90 mm guarantees a minimum of contact pressure at the pipe.

The supplied saddle gasket compensates the respective pipe diameter to the drilling saddle, thus reliably seals the borehole.

read more reduce
Material: Strap plate: stainless steel with rubber pad
Threaded pin: stainless steel
Nuts: DIN 934 - stainless steel
Gripping jaws: glass fibre reinforced polyamide
Saddle gasket: EPDM acc. to KTW-BWGL for water
Medium Water / Sewage

Hawle straps (model no. 311-02) are used for the reliable installation of pipe drilling saddles and valve saddles at AC pipes (see table).

The wide contact area of 90 mm guarantees a minimum of contact pressure at the pipe.

The supplied saddle gasket compensates the respective pipe diameter to the drilling saddle, thus reliably seals the borehole.

Contacts
Wish List
Order Nr.

d
AC 10
AC 16
AC 12,5
 Medium Weight Specification Basket
3119080421
 97 - 110 mm 80 80 80 0,90 kg
3119100475
 119 - 132 mm 100 100 100 0,90 kg
3119120553
 149 - 162 mm 125 125 125 1,00 kg
3119150630
 178 - 191 mm 150   150 1,10 kg
3119150645
 183 - 196 mm   150   1,10 kg
3119200745
 220 - 232 mm       1,35 kg
3119200783
 232 - 245 mm 200   200 1,35 kg
3119200823
 246 - 259 mm   200   1,40 kg
3119250935
 286 - 298 mm 250   250 1,60 kg
3119250995
 306 - 318 mm   250   1,65 kg
3119301099
 341 - 353 mm 300   300 1,80 kg
3119301168
 364 - 376 mm   300   1,90 kg
3119351275
 399 - 411 mm 350   350 2,10 kg
3119351345
 422 - 434 mm   350   2,20 kg
3119401425
 448 - 459 mm 400     2,40 kg
3119401478
 466 - 477 mm     400 2,45 kg
3119401530
 482 - 494 mm   400   2,50 kg
