298-00
Hawle water meter chamber

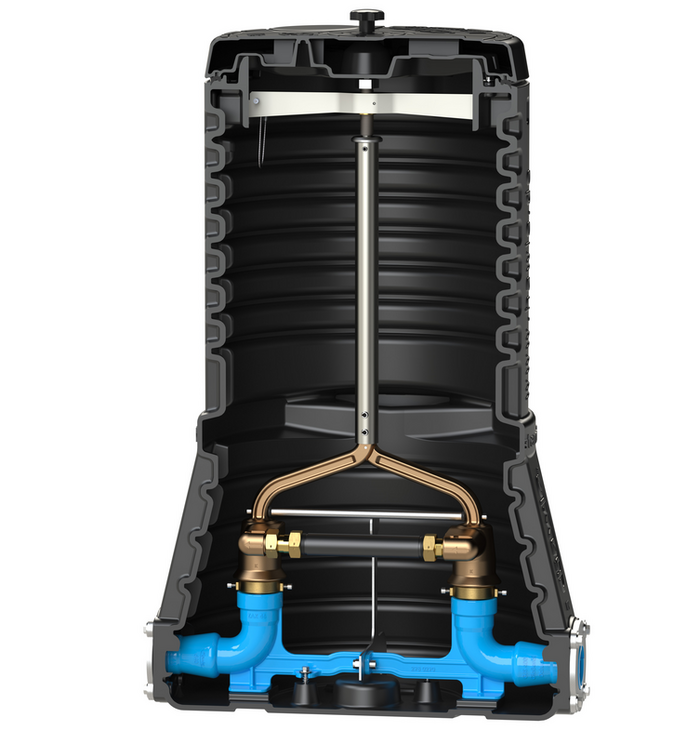

The Hawle water meter chamber 2.0 was developed for domestic water connections and is particularly suitable for new builds or renovation cases. Furthermore the water meter chamber 2.0 can be used in building areas with a risk of pressing ground water or flooding. The chamber body seals reliably against externally pressing water. The special external shape prevents the chamber from floating, and the chamber can be fastened to a foundation using the existing lugs. For an easy reading of the water meter or for maintenance purposes, the meter fitting installed in the water meter chamber can be removed under operating pressure. The plug integrated in the shut-off valve automatically shuts off when the meter fitting is removed, thus avoiding the need for additionally shutting off the potable water pipeline.

The water meter fitting can be operated with common Water meter chamber 2.0 Outlet: ZAK 46 socket with integrated push-fit fitting connection d 40 analogue and digital water meters (Q3 = 2.5 - 4). The use of digital water meters allows convenient readings by the operator using remote reading devices. For this purpose a special chamber cover can be used for the integration of an external antenna. The separately available Hawle water meter chamber cover is available
in versions B125 (weight 12.5 t) for parking areas / sidewalks and A15 (weight 1.5 t) for green spaces / parks.

Thanks to the flexible height adjustment of the water meter chamber cover, a height adjustment of 0-30 cm can be made. The water meter chamber 2.0 is available in pipe cover depths of 1.0 m, 1.25 m and 1.50 m and with two ZAK 46 socket outlet variations with integrated push-fit fitting for PE pipes of d 40.

read more reduce
Material: Chamber lid: PE and NBR gasket
Water meter set: red brass
Pressure plunger: brass
Double O-ring gasket: EPDM acc. to KTW-BWGL for water
Sealing cone: POM
Shaft bottom: PE
Max. operating Pressure: 10 bar
Medium Water

The Hawle water meter chamber 2.0 was developed for domestic water connections and is particularly suitable for new builds or renovation cases. Furthermore the water meter chamber 2.0 can be used in building areas with a risk of pressing ground water or flooding. The chamber body seals reliably against externally pressing water. The special external shape prevents the chamber from floating, and the chamber can be fastened to a foundation using the existing lugs. For an easy reading of the water meter or for maintenance purposes, the meter fitting installed in the water meter chamber can be removed under operating pressure. The plug integrated in the shut-off valve automatically shuts off when the meter fitting is removed, thus avoiding the need for additionally shutting off the potable water pipeline.

The water meter fitting can be operated with common Water meter chamber 2.0 Outlet: ZAK 46 socket with integrated push-fit fitting connection d 40 analogue and digital water meters (Q3 = 2.5 - 4). The use of digital water meters allows convenient readings by the operator using remote reading devices. For this purpose a special chamber cover can be used for the integration of an external antenna. The separately available Hawle water meter chamber cover is available
in versions B125 (weight 12.5 t) for parking areas / sidewalks and A15 (weight 1.5 t) for green spaces / parks.

Thanks to the flexible height adjustment of the water meter chamber cover, a height adjustment of 0-30 cm can be made. The water meter chamber 2.0 is available in pipe cover depths of 1.0 m, 1.25 m and 1.50 m and with two ZAK 46 socket outlet variations with integrated push-fit fitting for PE pipes of d 40.

Contacts
Wish List
Order Nr.

Pipe cover depth
d
Outlet
B
H1
H2
h3
 Medium Weight Specification Basket
2981460100
 1,00 m 460 mm ZAK 46 / d 40 mm 640 mm 70 mm 970 mm 1005 mm 34,50 kg
2981460125
 1,25 m 460 mm ZAK 46 / d 40 mm 640 mm 70 mm 1220 mm 1255 mm 38,00 kg
2981460150
 1,50 m 460 mm ZAK 46 / d 40 mm 640 mm 70 mm 1470 mm 1505 mm 43,50 kg
Wish List

The water meter manhole cover is not included in the scope of supply and must be ordered separately.

The water meter must be provided by the customer.

Surcharge manhole cover for external antenna on request.
