281-00

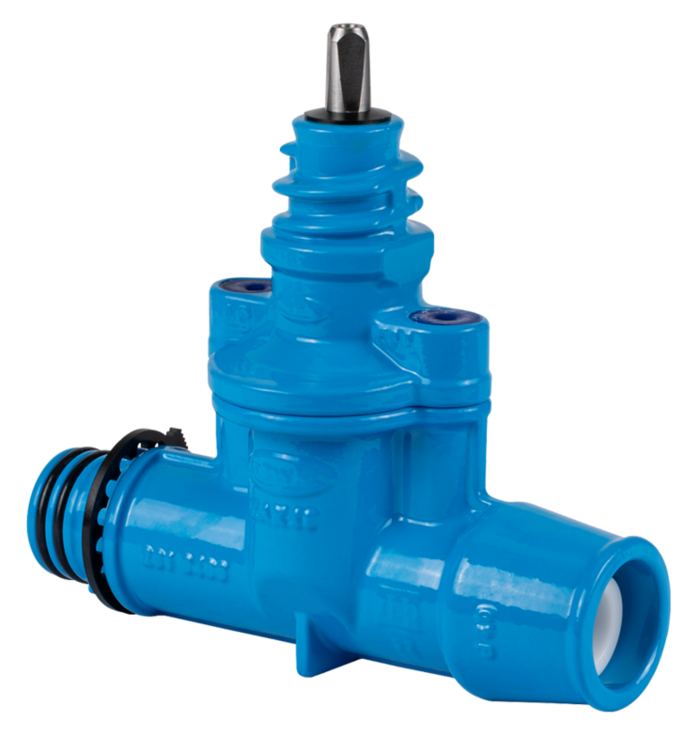

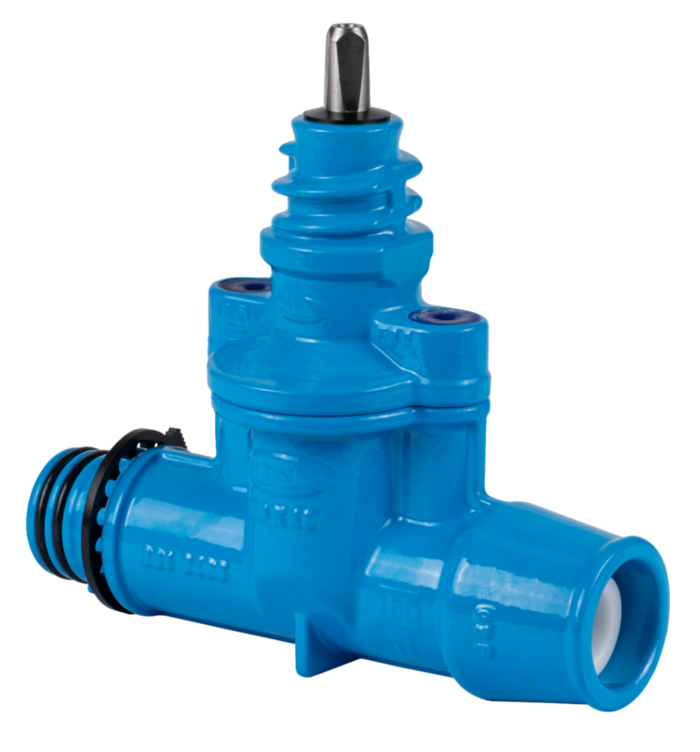

Service valve with ZAK® spigot end and push fit socket

Service valve, with one ZAK spigot end for restraint connection with valves and fittings with ZAK socket, and with one restraint push fit socket for the restraint connection with PE pipes PE 80, PE 100 and PE-X. With corundum grip ring model no. 695 also available for PVC rings.

Direct pipe installation into the valve. No adaptor required at the transition between the valve and the fitting. With corundum grip ring model no. 695-00 also available for PVC pipes.

When connecting PE pipes a support liner (model no. 590) must be used.

Spindle square: 12.3 mm

For underground pipeline construction and in distribution systems for drinking water supply (no application in installation).

read more reduce
Material: Body and bonnet: GJS-400, Hawle epoxy powder coated
Spindle: stainless steel
Wedge: brass, with cured on EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

Service valve, with one ZAK spigot end for restraint connection with valves and fittings with ZAK socket, and with one restraint push fit socket for the restraint connection with PE pipes PE 80, PE 100 and PE-X. With corundum grip ring model no. 695 also available for PVC rings.

Direct pipe installation into the valve. No adaptor required at the transition between the valve and the fitting. With corundum grip ring model no. 695-00 also available for PVC pipes.

When connecting PE pipes a support liner (model no. 590) must be used.

Spindle square: 12.3 mm

For underground pipeline construction and in distribution systems for drinking water supply (no application in installation).

Contacts
Wish List
Order Nr.
*)
Operating pressure max.
Description
L

B
D
H
Square of spindle
Outlet O
 Medium Weight Specification Basket
2810253400
 1) Potable water: 16 bar   173 mm 82 mm 25 mm 183 mm 12,3 mm ZAK 34 2,00 kg
2810323400
 1) Potable water: 16 bar   175 mm 82 mm 32 mm 188 mm 12,3 mm ZAK 34 2,50 kg
2810324600
 1) Potable water: 16 bar   198 mm 82 mm 32 mm 188 mm 12,3 mm ZAK 46 2,50 kg
2810403400
 1) Potable water: 16 bar   205 mm 105 mm 40 mm 200 mm 12,3 mm ZAK 34 4,00 kg
2810404600
 1) Potable water: 16 bar   230 mm 105 mm 40 mm 221 mm 12,3 mm ZAK 46 4,05 kg
2810503400
 1) Potable water: 16 bar   232 mm 105 mm 50 mm 200 mm 12,3 mm ZAK 34 4,30 kg
2810504600
 1) Potable water: 16 bar   236 mm 105 mm 50 mm 227 mm 12,3 mm ZAK 46 4,30 kg
2810634600
 1) Potable water: 16 bar   267 mm 105 mm 63 mm 236 mm 12,3 mm ZAK 46 4,80 kg
8700000000
     Surcharge for spindle bore             0,00 kg
Wish List
1)
Delivered with enclosed support liner (POM).

Product numbers for use with PVC pipes on request.

When connecting PE pipes a support liner must be used.
