- 1)
- Delivered with enclosed support liner (POM).
280-00

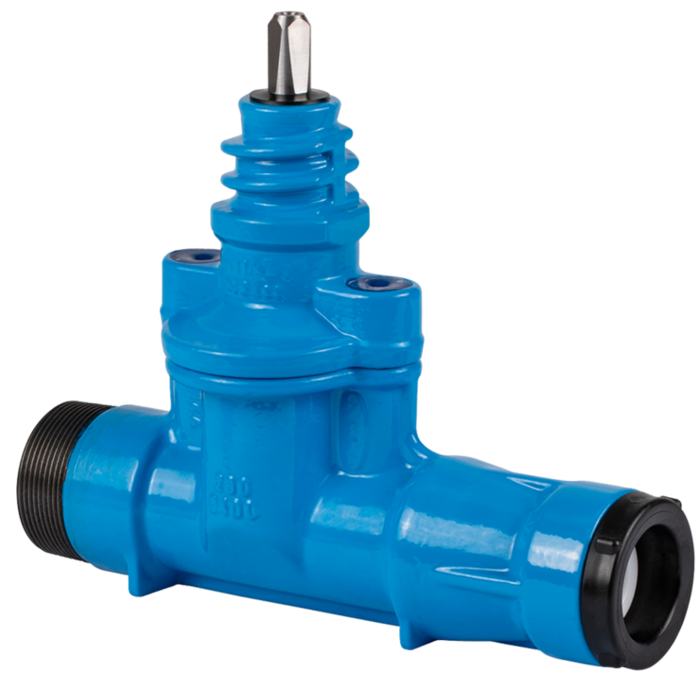

Service valve with male thread and push-fit socket
| Material: |
Body and bonnet: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge: brass, with cured-on EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Service valve, with one male thread, and with one female thread to accommodate a drilling device, and with additional push-fit socket for the restraint connection with PE pipes PE 80, PE 100 and PE-X. With corundum grip ring model no. 695 available also for PVC pipes.
Saves a transition fitting from valve to fitting.
When connecting PE pipes a support liner (model no. 590) must be used.
Spindle square: 12.3 mm
Please note: prior to drilling dismantle the O-ring and the grip ring.
|
Order Nr.
|
*) |
Operating pressure max. |
Description |
d |
Female thread (IG) |
male thread (AG) |
L |
L1 |
H |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2800320000
|
1) | Potable water: 16 bar | 32 mm | 1 1/4" | 1 1/4" | 200 mm | 85 mm | 156 mm | 3,12 kg | ||||
|
2800400000
|
1) | Potable water: 16 bar | 40 mm | 1 1/2" | 2" | 245 mm | 100 mm | 185 mm | 4,98 kg | ||||
|
2800500000
|
1) | Potable water: 16 bar | 50 mm | 2" | 2" | 255 mm | 120 mm | 185 mm | 5,27 kg | ||||
|
2800630000
|
1) | Potable water: 16 bar | 63 mm | 2 1/2" | 2" | 265 mm | 135 mm | 208 mm | 7,10 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
-
Product numbers for use with PVC pipes on request.
-
When connecting PE pipes a support liner must be used.
|
