270-00

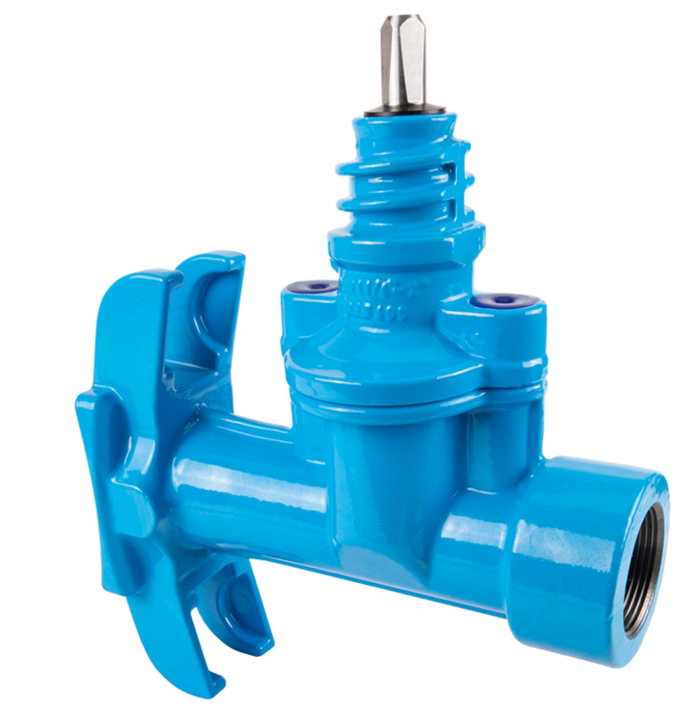

Valve saddle with female thread outlet
| Material: |
Body: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge: brass, EPDM inside and outside for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Hawle valve saddles are to be used for lateral installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 309-00, 310-00 or model no. 311-00, 311-01, 311-02, 311-03) of the appropriate nominal width.
In combination with a drilling device (e.g. Hawle drilling device HAWLOMAT, model no. 830-00) the shut-off system permits the easy under pressure drilling of the main line.
In combination with fittings, the lateral female thread outlet is used to connect service lines after drilling.
Spindle square: 12.3 mm
|
Order Nr.
|
L |
Description |
L1 |
B |
H1 |
Borehole max. |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2700320000
|
205 mm | 125 mm | 200 mm | 185 mm | 25 mm | IG 1" | 5,40 kg | ||||
|
2700400000
|
205 mm | 125 mm | 200 mm | 185 mm | 30 mm | IG 1 1/4" | 5,40 kg | ||||
|
2700500000
|
220 mm | 125 mm | 200 mm | 185 mm | 38 mm | IG 1 1/2" | 5,50 kg | ||||
|
2700630000
|
220 mm | 125 mm | 200 mm | 185 mm | 38 mm | IG 2" | 5,60 kg | ||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
|
