- 1)
- Delivered with enclosed support liner (POM).
260-00

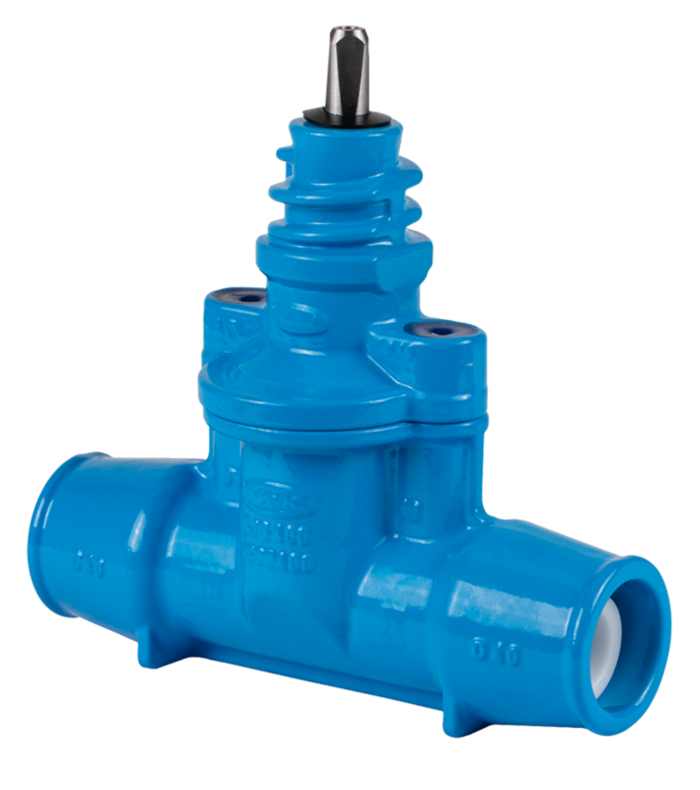

Service valve with push-fit sockets
| Material: |
Body: D25 GJL-250, D32-D63 GJS-400, Hawle epoxy powder coated Bonnet: GJS-400, Hawle epoxy powder coated Spindle: stainless steel Wedge: brass, with cured-on EPDM acc. to KTW-BWGL for potable water |
|---|---|
| Max. operating Pressure: | Potable water: 16 bar |
| Medium | Water |
Service valve with two push-fit sockets for the restraint connection with PE pipes grades PE 80, PE 100 and PE-X. With corundum grip ring model no. 695 also available for PVC rings.
Direct pipe installation into the valve. No adaptor required at the transition between the valve and the fitting.
When connecting PE pipes a support liner (model no. 590) must be used.
Spindle square: 12.3 mm
For underground pipeline construction and in distribution systems for drinking water supply (no application in installation).
|
Order Nr.
|
*) |
Operating pressure max. |
Description |
d |
L |
L1 |
H |
Medium | Weight | Specification | 3D | Basket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2600250000
|
1) | Potable water: 16 bar | 25 mm | 165 mm | 50 mm | 156 mm | 2,80 kg | |||||
|
2600320000
|
1) | Potable water: 16 bar | 32 mm | 170 mm | 60 mm | 156 mm | 2,30 kg | |||||
|
2600400000
|
1) | Potable water: 16 bar | 40 mm | 220 mm | 75 mm | 185 mm | 4,10 kg | |||||
|
2600500000
|
1) | Potable water: 16 bar | 50 mm | 230 mm | 90 mm | 185 mm | 4,50 kg | |||||
|
2600630000
|
1) | Potable water: 16 bar | 63 mm | 270 mm | 100 mm | 208 mm | 6,80 kg | |||||
|
8700000000
|
Surcharge for spindle bore | 0,00 kg |
-
Product numbers for use with PVC pipes on request.
-
When connecting PE pipes a support liner must be used.
|
Operating instructions
|
|---|
| Operating and Maintenance Instructions - one-piece push-fit fittings |
|
Brochures
|
|---|
| Brochure - Hawle Product Range |
