Product numbers for gas on request (only ZAK 34 and ZAK 46).
249-00

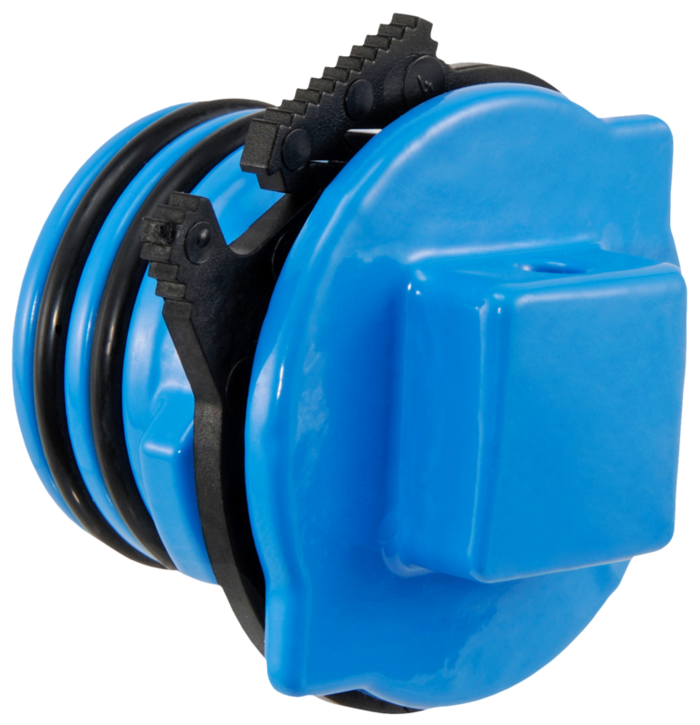

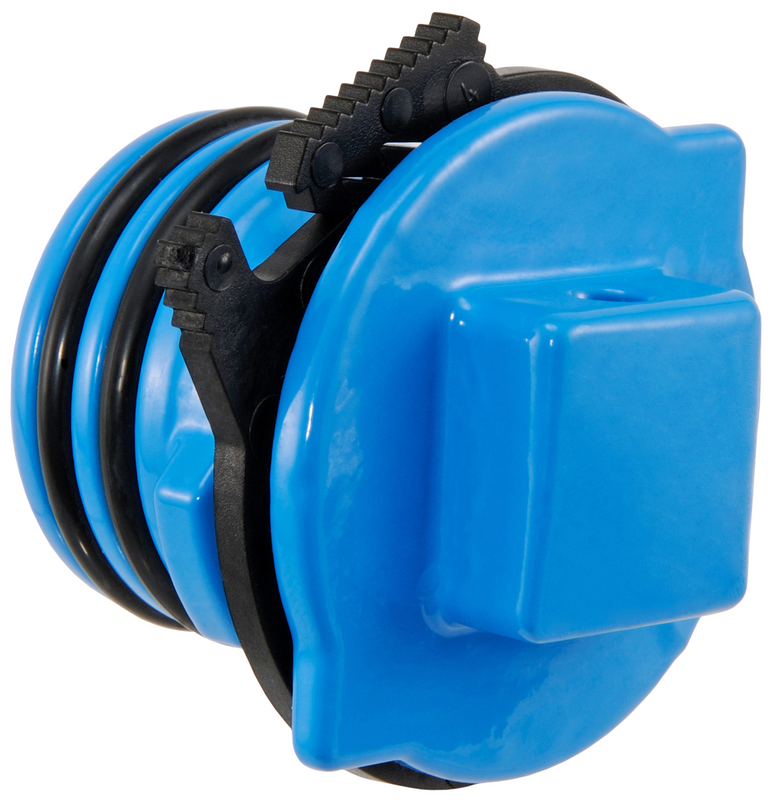

ZAK® plug
| Material: |
GJS-400, Hawle epoxy powder coated O-rings: elastomer Locking piston: polyoxymethylene (POM) Gaskets: EPDM acc. to KTW-BWGL for water |
|---|---|
| Max. operating Pressure: |
Sewage water: 16 bar Gas: 10 bar Potable water: 16 bar |
| Medium | Water / Gas / Sewage |
The ZAK® plug with locking piston is used to close ZAK® outlets (e.g. in case of pressure testing or to gasket unused ZAK® outlets).
|
Order Nr.
|
Operating pressure max. |
L |
B |
H |
Outlet O |
Medium | Weight | Specification | Basket |
|---|---|---|---|---|---|---|---|---|---|
|
2490000504
|
16 bar | 56 mm | 46 mm | 52 mm | ZAK 34 | 0,20 kg | |||
|
2490000506
|
16 bar | 68 mm | 60 mm | 56 mm | ZAK 46 | 0,45 kg | |||
|
2490000508
|
16 bar | 95 mm | 88 mm | 64 mm | ZAK 69 | 0,75 kg |
|
