245-02

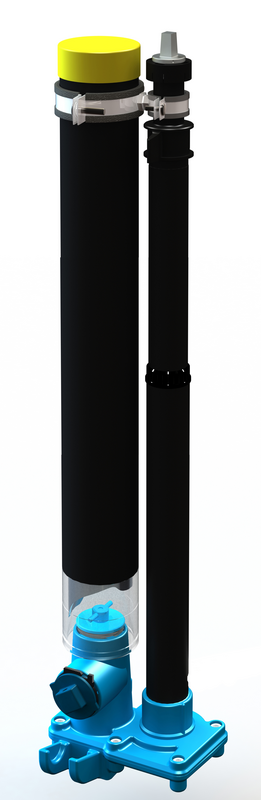

Universal Hawlinger for later drilling with vertical and horizontal ZAK® outlet 90° to pipe direction

Universal Hawlingers for later drilling are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 309-00, 310-00 311-00, 311-01, 311-02 or 311-03) of the appropriate nominal width.

Hawlingers type "NA" are used for later drilling of previously installed service lines. Thus, the high hygienic requirements, especially the specifications of DIN 1988 (avoiding of eddying areas), are consistently implemented. By using this system it is no longer required to dig up the pipeline for drilling the main line in the course of putting the house service connection into service.

In combination with fittings, the horizontal zak outlet is used to connect service lines.

For later drilling via the drilling conduit and operation of the extension spindle we recommend the
use of our surface box (model no. 212-00).

General information see Universal Hawlinger (model no. 245-00)

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: EPDM acc. to KTW-BWGL for potable water
Max. operating Pressure: Potable water: 16 bar
Medium Water

Universal Hawlingers for later drilling are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 309-00, 310-00 311-00, 311-01, 311-02 or 311-03) of the appropriate nominal width.

Hawlingers type "NA" are used for later drilling of previously installed service lines. Thus, the high hygienic requirements, especially the specifications of DIN 1988 (avoiding of eddying areas), are consistently implemented. By using this system it is no longer required to dig up the pipeline for drilling the main line in the course of putting the house service connection into service.

In combination with fittings, the horizontal zak outlet is used to connect service lines.

For later drilling via the drilling conduit and operation of the extension spindle we recommend the
use of our surface box (model no. 212-00).

General information see Universal Hawlinger (model no. 245-00)

Contacts
Wish List
Order Nr.

Description
L

B
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2400000009
 drainage fuction on request           0,00 kg
2450507000
 Hawlinger 196 mm 200 mm 1900 mm 36 mm ZAK 46 17,00 kg
2459001000
 t-key           1,96 kg
2459001100
 clamping tool           2,30 kg
2459001200
 drilling pipe           5,20 kg
Wish List

For dimensions see universal-hawlinger, order-no. 245.050.0000
