245-00G

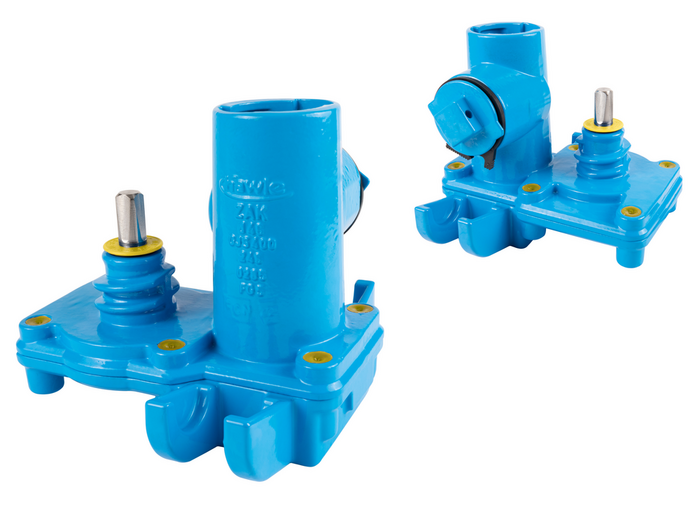

Universal Hawlinger for gas with horizontal ZAK® socket 90° to pipe direction

Universal Hawlingers are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 310 or model no. 314-01) of the appropriate nominal width.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

read more reduce
Material: Body: GJS-400, Hawle epoxy powder coated
Spindle, shut-off device,
shut-off blade: stainless steel
Gaskets: NBR for gas
Max. operating Pressure: Gas: 5 bar
Medium Gas

Universal Hawlingers are to be used for installation on DCI, steel, and AC pipes DN 65 - DN 500. Adaptation to the main pipe is effected via holding strap and saddle gasket (model no. 310 or model no. 314-01) of the appropriate nominal width.

In combination with the ZAK® spigot end fittings, the upper ZAK® socket outlets are used to connect service lines.

All Hawle pipe drilling saddles type Hawlinger are provided with a shut-off blade of stainless steel driven via slotted link gear as shut-off device. The shut-off blade is moved in a housing at low wear in horizontal direction against fixed metal stops.

To open or close the outlet area only one half revolution (180°) is required.

Contacts
Wish List
Order Nr.

L

B
H
Borehole max.
Outlet O
 Medium Weight Specification Basket
2450320005
 165 mm 200 mm 170 mm 24 mm ZAK 34 5,00 kg
2450500005
 195 mm 200 mm 173 mm 36 mm ZAK 46 6,80 kg
